Vector Signal Analyzer
The Vector signal analyser is a wideband receiver instrument used to measure realistic signal specifications (ACPR, CCDF, PAPR, IQ …) at the output of the DUT.

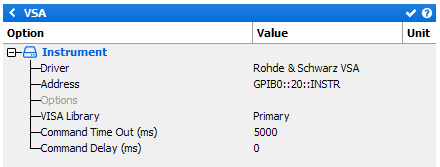

When clicking on the “Vector Signal Analyzer” picture, the following menu appears on the
right side of the schematic editor:
Instrument
- Driver: select the appropriate driver corresponding to the instrument (refer to Supported Vector Signal Analyzers list)
- Address: set the communication address. Note the
icon can be use to open the Instrument Scanner - Options: set specific driver options clicking on
icon (refer
to Supported Instruments section) - VISA Library: set the VISA Library (*.dll) used to communicate with the instrument (see help on this page: Getting Started : "Configure the VISA Library on the control PC")
- Command Time Out (ms): elapsed time before returning an error message if no response from the instrument
- Command Delay (ms): delay before sending a command to the instrument
