Tuner Manager

The Tuner Manager is a separate module only accessible when the bench is initialized. This panel is always accessible from shortcut on the right side or expand "Measurement" > "Hardware Control" on the left under “Plug-ins”.

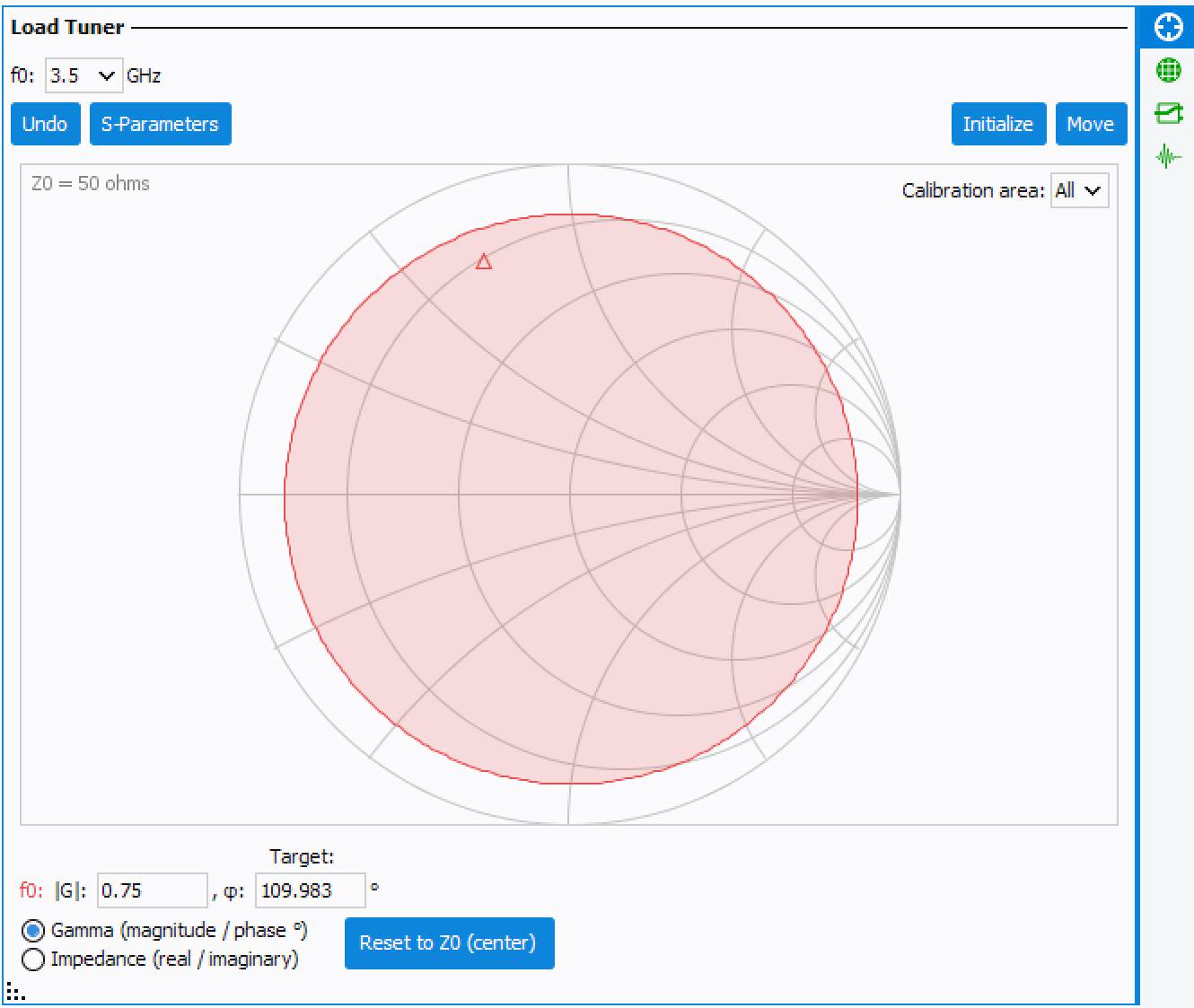

From this panel, the Load tuner can be managed manually (magnitude/phase or real/imaginary). Set the desired positions for the fundamental frequency and press ‘Move’ to send the command to the tuners.

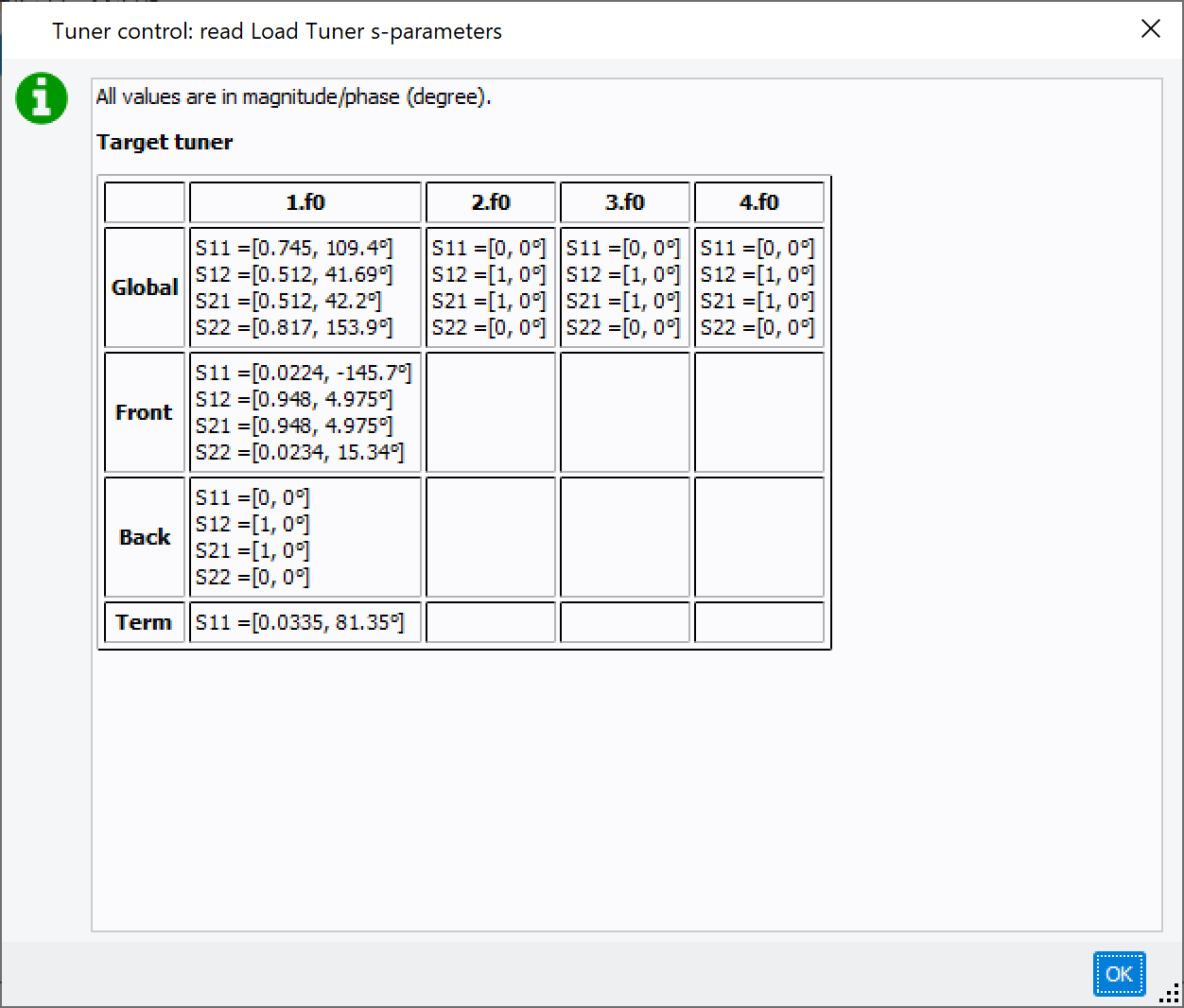

It is also possible to accede to the [S] parameters corresponding to the tuner position. Where "Global" represents S-parameters of tuner cascaded with "front, "back" and "term" files.



Note: Tuning Range is represented by the red circle and is automatically updated when the fundamental frequency is selected. This tuning range takes into account the tuner fixtures files ("front, "back" and "term") and also Output Fixturesoutput fixture file defined in the Schematic.
