Instrument Scanner

Instrument scanner is used to scan all the instruments connected to the control PC via GPIB/LAN/USB. This tool allows to check the instruments connected on the GPIB bus in the same way as the Keysight (Agilent) Connection Expert or the NiMax from National Instruments.

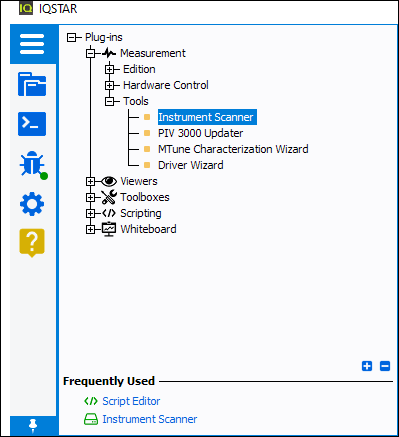

Click on the “Instrument Scanner" shortcut () on the top right of the IQSTAR window or expand “Measurement” > "Tools" on the left under “Plug-ins”.

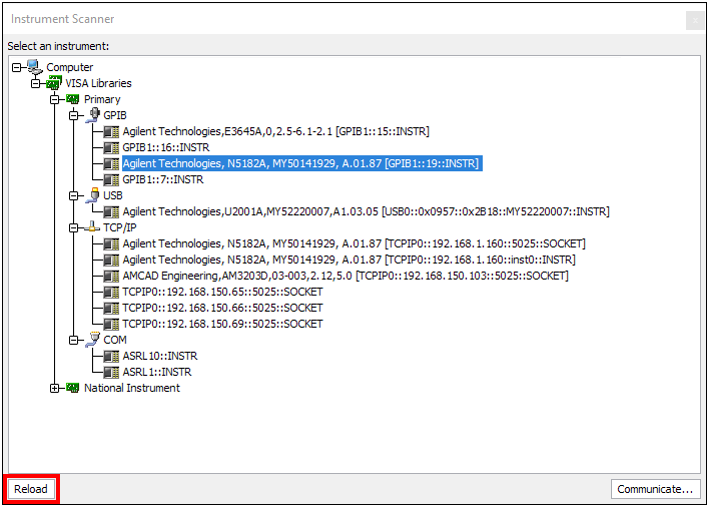

Then click on “Instrument Scanner". Finally, click on "Reload" in order to scan all connected instruments.



Instruments connectivity may also be checked with NI or Keysight (Agilent) software to make sure that the instruments are listed and well recognized. If not, refresh the scan and check the instruments connection.
