Supported Vector Signal Analyzers

AMCAD VST [I/Q, DPD mode Supported]

  • IQMaster 6400

  • AMD Zynq UltraScale+ RFSoC DFE ZCU670

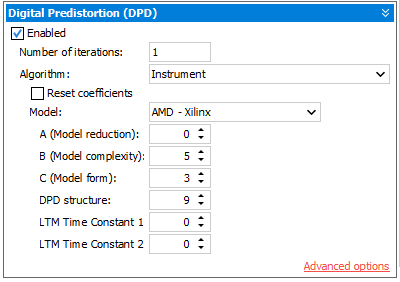

Driver AMD DPD options:



Keysight VSA [ACP, CCDF, I/Q, SPECTRUM, 2-Tones mode Supported]

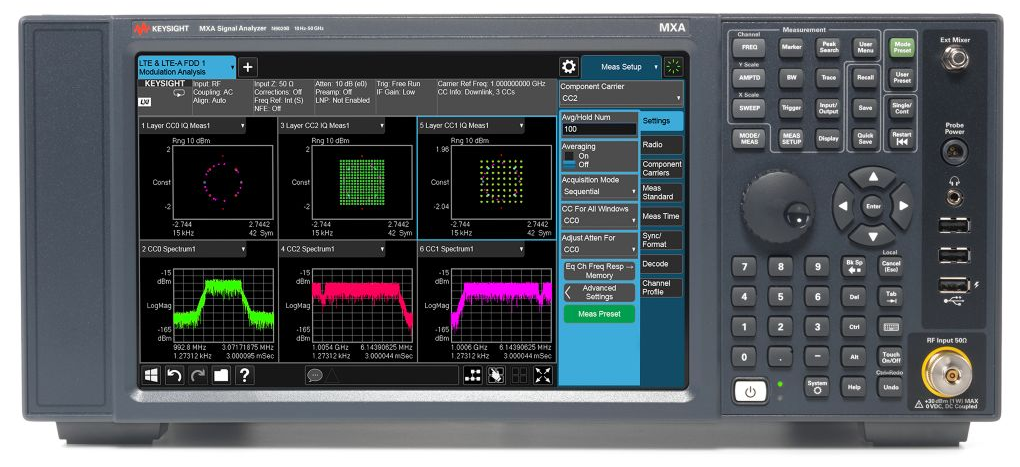

  • Keysight MXA Series: N9020A, N9020B

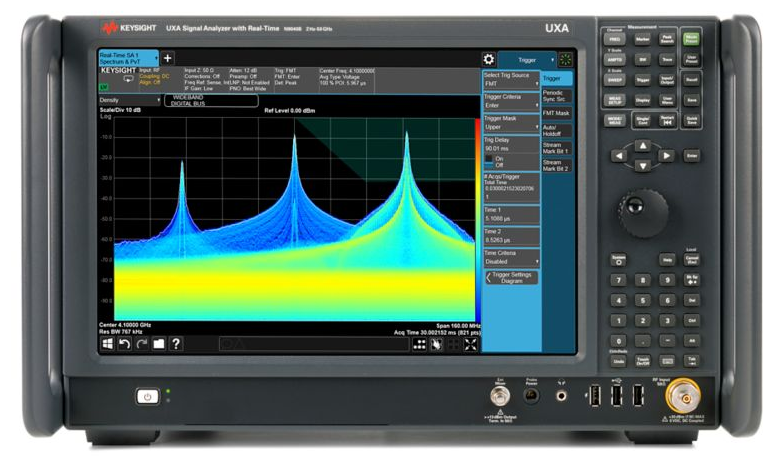

  • Keysight UXA Series: N9040B

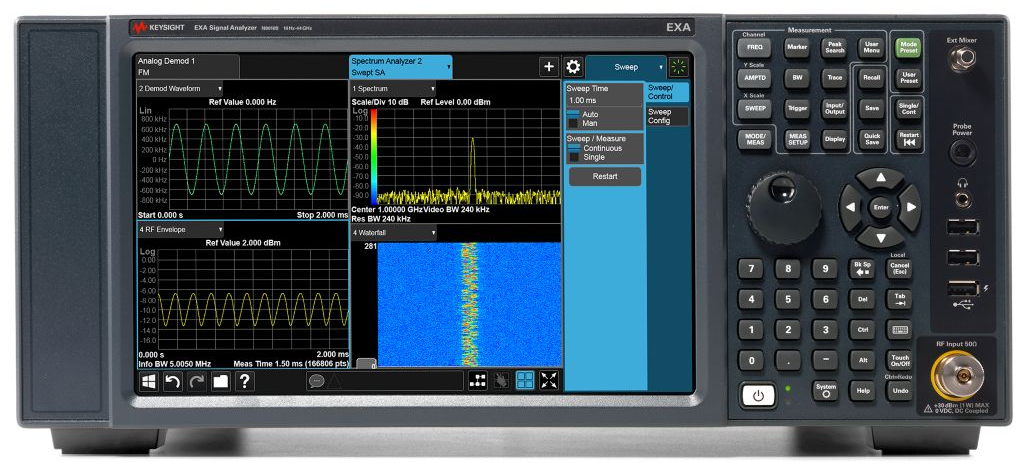

  • Keysight EXA Series: N9010A, N9010B, N9030A, N9030B

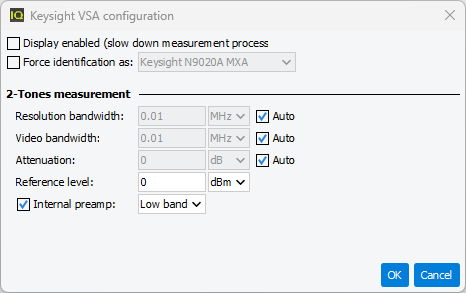

Driver options:

Driver options of Keysight VSA

National Instruments PXIe VST [ACP, CCDF, DPD, I/Q, SPECTRUM mode Supported]

  • National Instruments PXIe-5644
  • National Instruments PXIe-5646 [Not tested]
  • National Instruments PXIe-5840
  • National Instruments PXIe-5842

More details on using this instrument here.

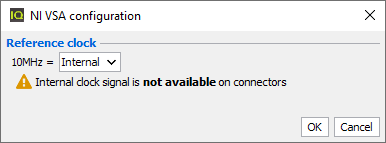

Driver options:

Driver options of National Instruments PXIe VSA

Rohde & Schwarz VSA [ACP, CCDF, EVM*, I/Q, SPECTRUM, 2-Tones mode Supported]

* EVM required option K70 or K10x or K14x or K9x

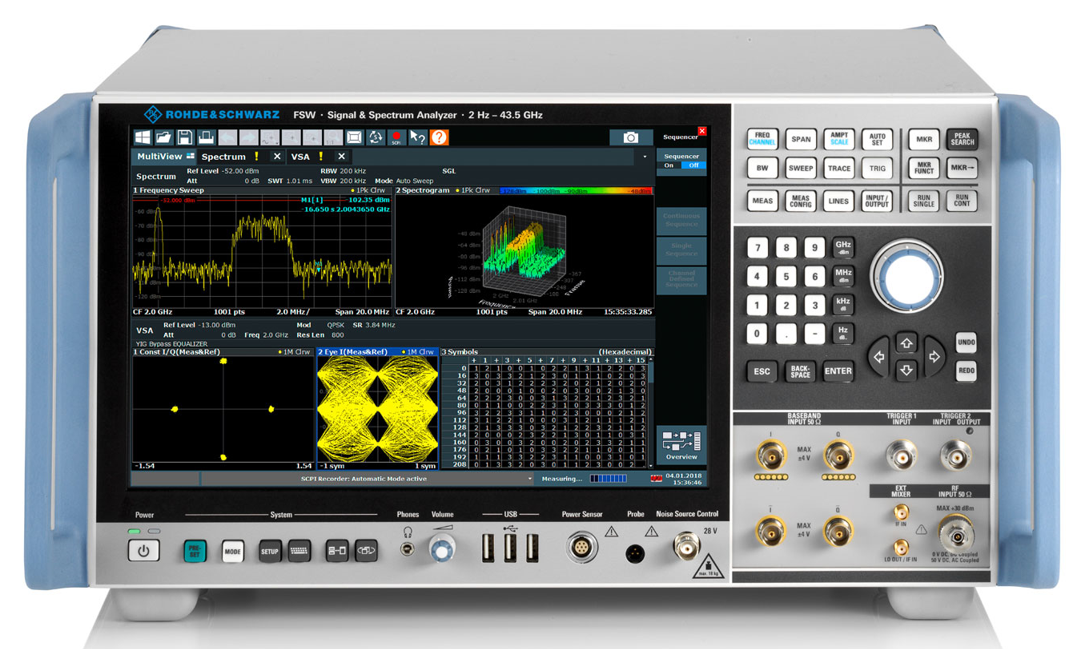

  • Rohde & Schwarz FSW Series: FSW-8, FSW-13, FSW-26, FSW-43, FSW-50, FSW-67, FSW-85

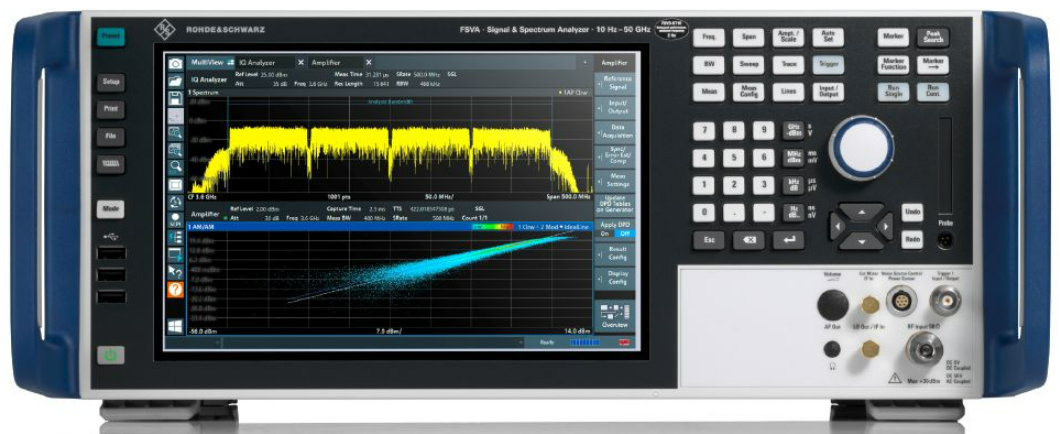

  • Rohde & Schwarz FSVA Series: FSVA-4, FSVA-7, FSVA-13, FSVA-30, FSVA-44, FSVA-50

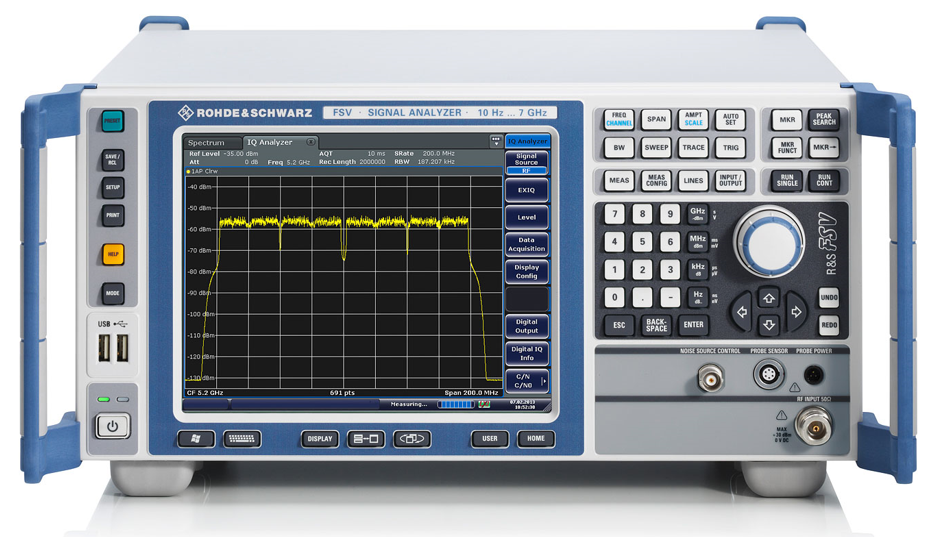

  • Rohde & Schwarz FSV Series: FSV-4, FSV-7, FSV-13, FSV-30, FSV-40

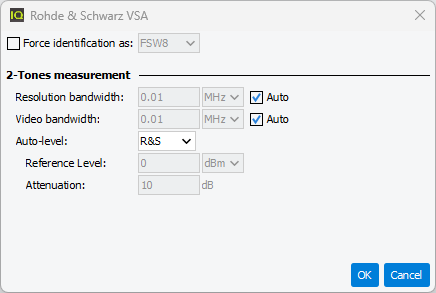

Driver options:

Driver options of Rohde and Schwarz VSA
