Supported IV Measurement

Aim TTi Generic Power Supplies [DC mode Only]

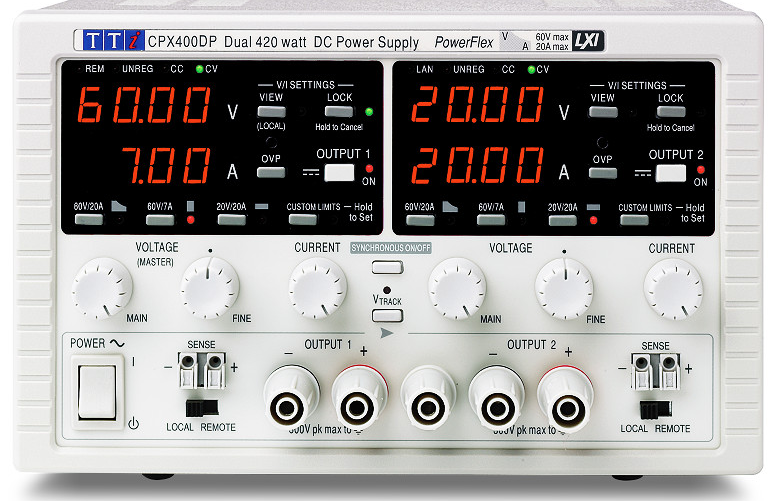

  • Aim TTi CPX Series: CPX200DP, CPX400SP, CPX400DP


  • Aim TTi EL-R Series: EL302P, EL302P-USB

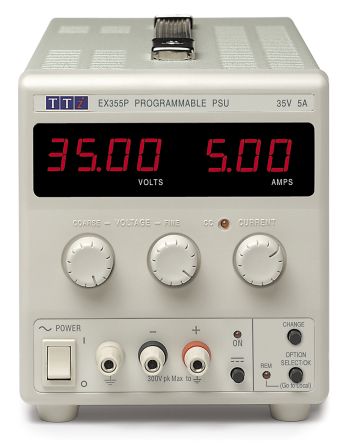

  • Aim TTi EX-R Series: EX355P

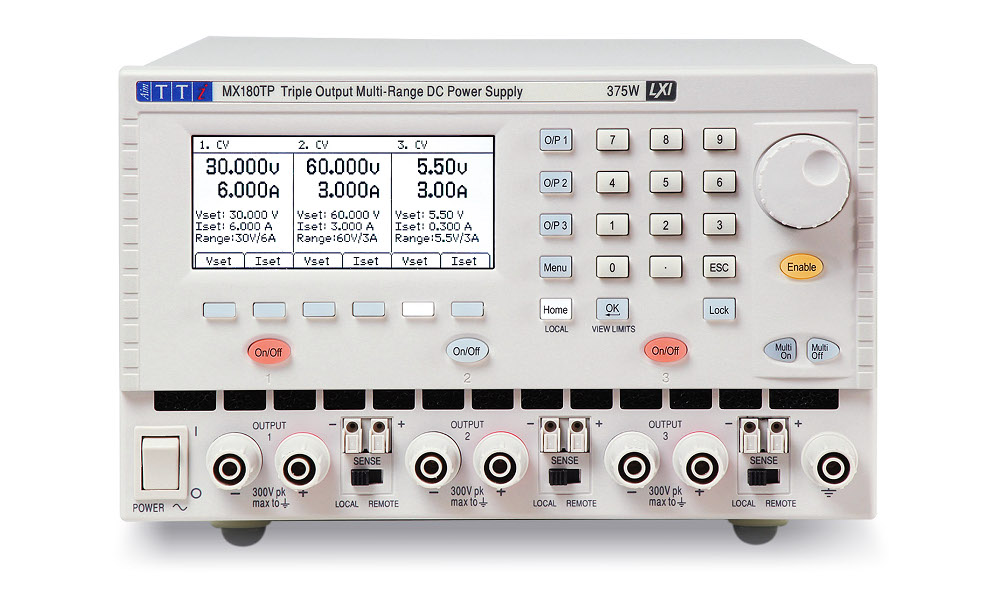

  • Aim TTi MX Series: MX100TP, MX100QP, MX180TP

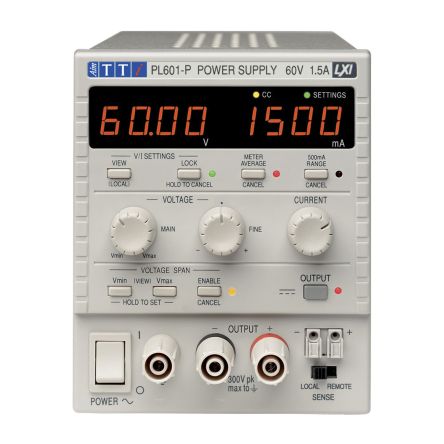

  • Aim TTi PL Series: PL068-P, PL155-P, PL303-P, PL303QMD-P, PL303QMT-P, PL601-P


  • Aim TTi PLH Series: PLH120-P, PLH250-P

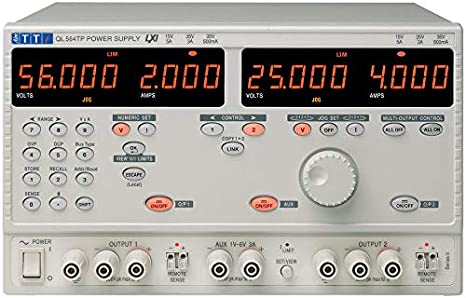

  • Aim TTi QL Series: QL355P, QL355TP, QL564P, QL564TP

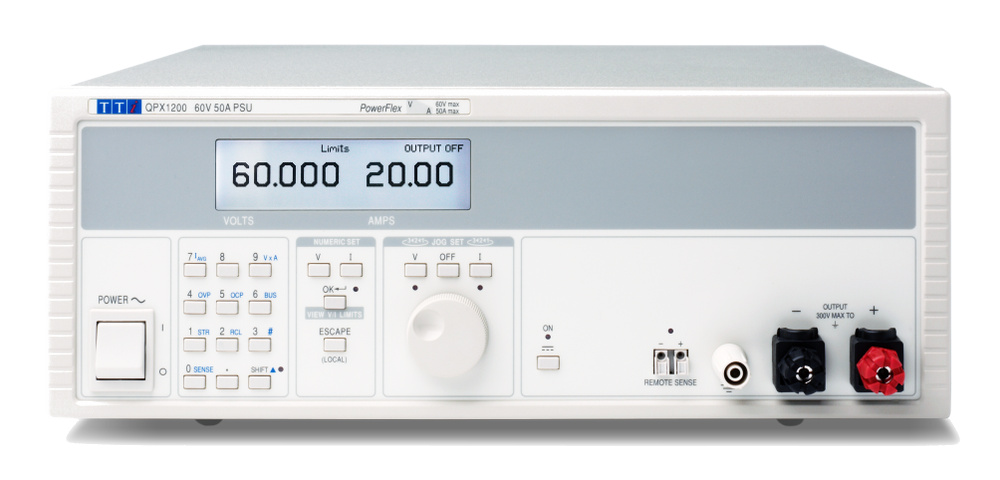

  • Aim TTi QPX Series: QPX600DP, QPX1200SP

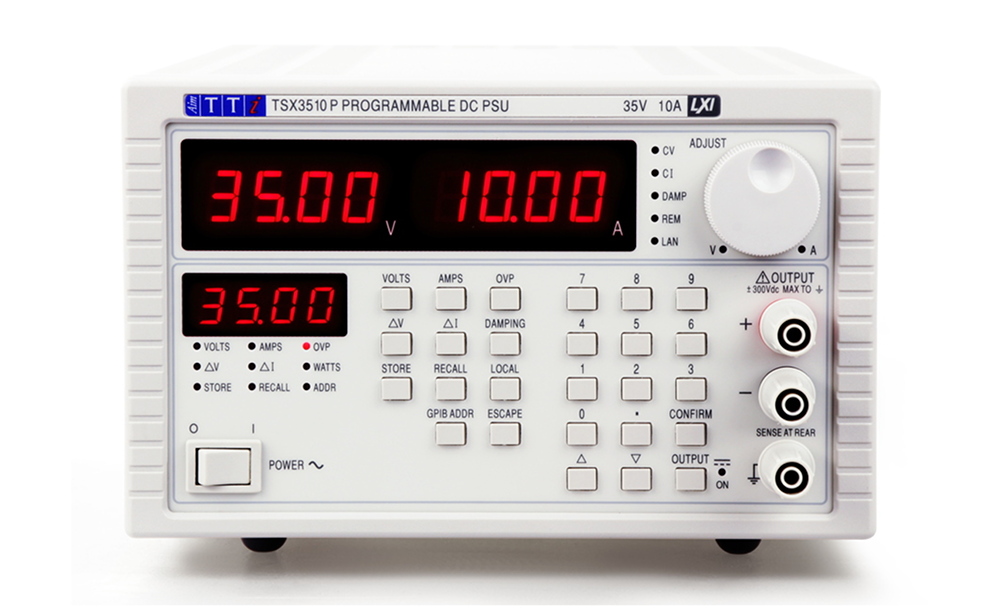

  • Aim TTi TSX Series: TSX1820P, TSX3510P


Driver options:

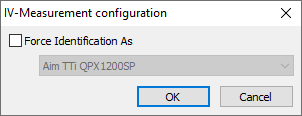

Driver options of Aim TTi Generic Power Supplies

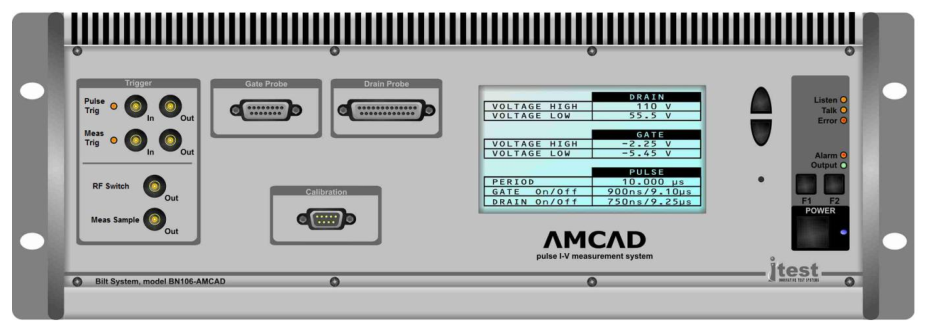

AMCAD PIV 200 System [DC, Pulsed mode Supported]

  • AM200


Driver options:

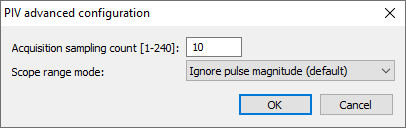

Driver options of AMCAD PIV 200 System

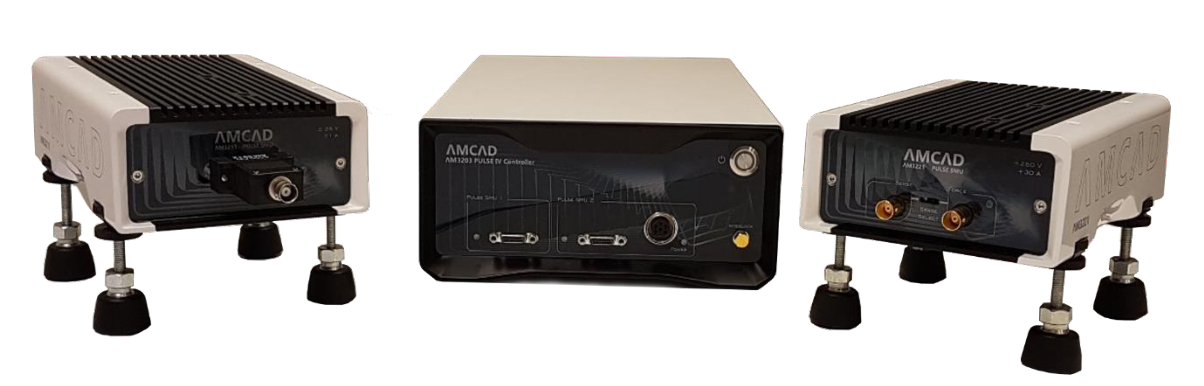

AMCAD PIV 3000 System [DC, Pulsed mode Supported]

  • AM3000 series: AM3100, AM3200


Driver options:

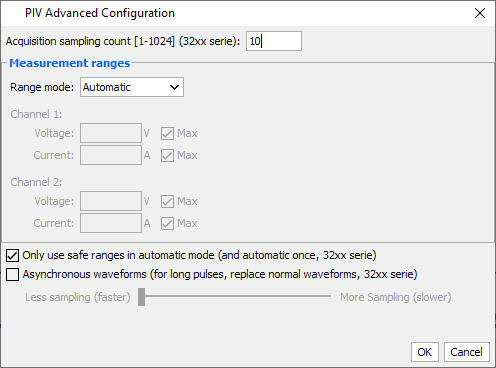

Driver options of AMCAD PIV 3000 System

Generic Multimeter [DC, Pulsed* mode Supported]

* Some of these multimeters can perform pulsed measurements but beware of their integration time and trigger time step for pulse width and delay measurement capabilities.

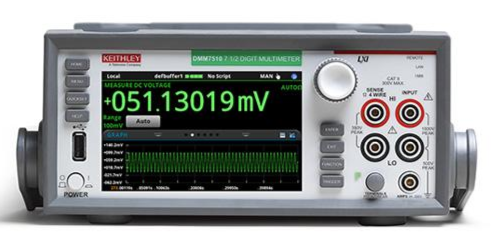

  • Keithley DMM Series: DMM6500, DMM7510

    Latest qualified firmware : 1.7.3c

    Option added to force SCPI instead of TSP for Keithley 6500 & 7510

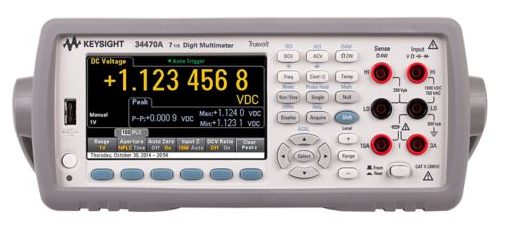

  • Keysight 344xxA Series: 34401A, 34410A, 3441A, L4411A, 34450A, 34460A, 34461A, 34465A, 34470A

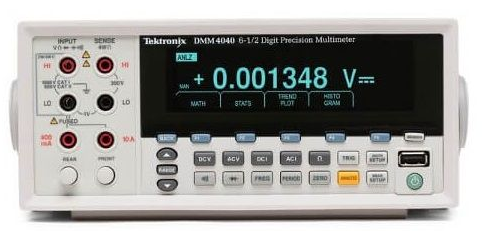

  • Tektronix 40xx Series: 4050, 4040

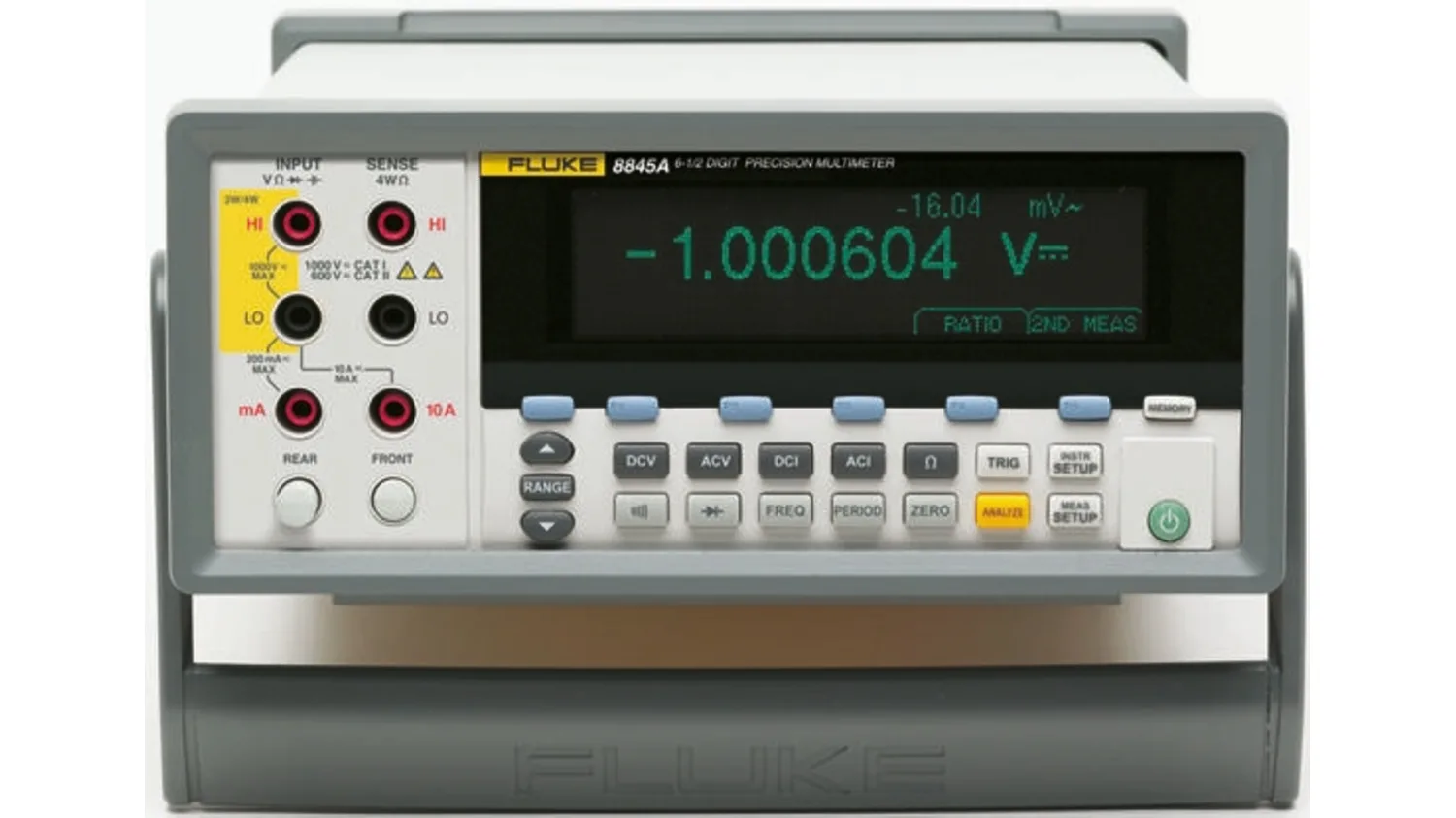

  • Fluke 884x: 8845A, 8846A

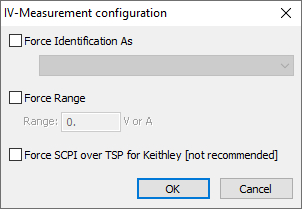

Driver options:

Driver options of Generic Multimeters

iTest BILT [DC, Pulsed mode Supported]

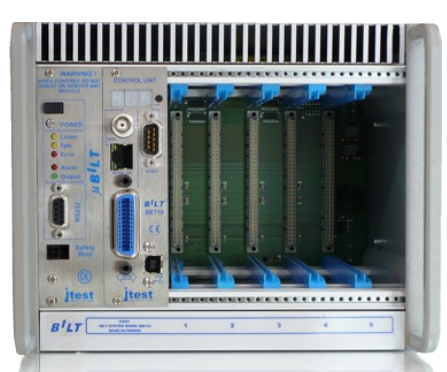

  • iTest BN series: BN100, μBilt (BN103), tinyBILT (BN105), BN110, BN120


Driver options: To learn more see iTest BILT Setup Instruction & Driver Details

Keithley Generic Power Supplies [DC mode Only]

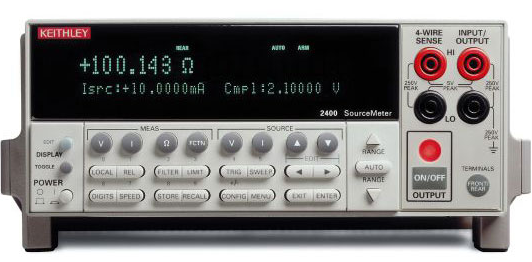

  • Keithley SM24xx Series: SM2400, SM400-C, SM2401, SM2410, SM2410-C, SM2420, SM2420-C, SM2425, SM2425-C, SM2430, SM2430-C, SM2440, SM2440-C

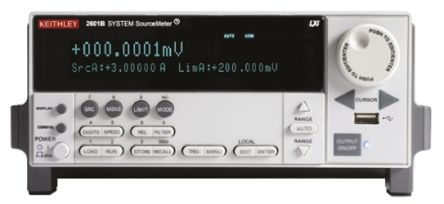

  • Keithley 26xxB Single Series: 2601B, 2611B, 2635B

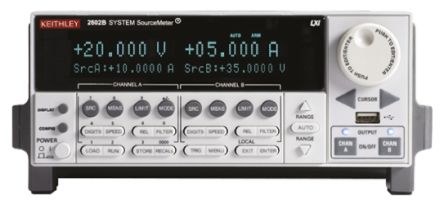

  • Keithley 26xxB Dual Series: 2602B, 2604B, 2612B, 2614B, 2634B, 2636B


Driver options:

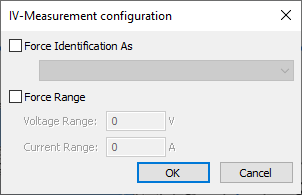

Driver options of Keithley Generic Power Supplies

Keysight Generic Power Supplies [DC mode Only]

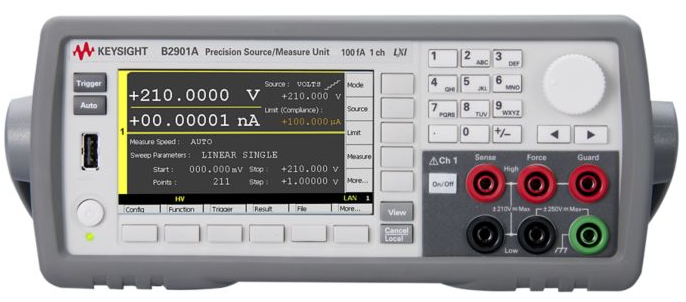

  • Keysight B2900 Series: B2962A, B2961A, B2912A, B2911A, B2902A, B2901A

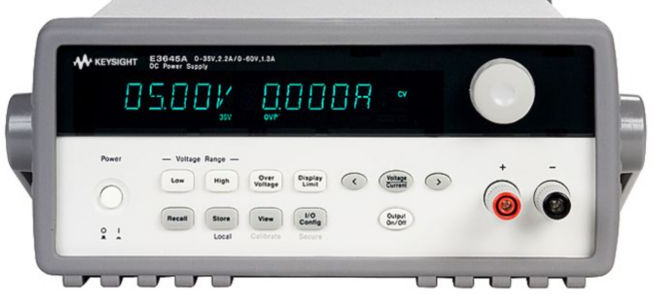

  • Keysight E36xxA Series: E3631A, E3646A, E3647A, E3648A, E3649A, E3632A, E3633A, E3634A, E3640A, E3641A, E3642A, E3643A, E3644A, E3645A


  • Keysight E36xxxA Series: E36231A, E36232A, E36233A, E36234A, E36312A, E36313A
  • Keysight E36xxxB Series: E36102B, E36103B, E36104B, E36105B, E36106B
  • Keysight N57xxA Series: N5741A, N5742A, N5743A, N5744A, N5745A, N5746A, N5747A, N5748A, N5749A, N5750A, N5751A, N5752A, N5761A, N5762A, N5763A, N5764A, N5765A, N5766A, N5767A, N5768A, N5769A, N5770A, N5771A, N5772A

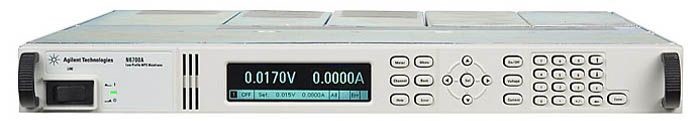

  • Keysight N67xxy Series: N6715B, N6705B, N6715A, N6712A, N6711A, N6710B, N6710A, N6705A, N6702A, N6701A, N6700B, N6700A
  • Keysight N67xxy Series with Modular Power Supplies: N6731B/A, N6732B/A, N6733B/A, N6734B/A, N6735B/A, N6736B, N6741B, N6742B/A, N6743B/A, N6744B/A, N6745B/A, N6746B, N6751A, N6752A, N6753A, N6754A, N6755A, N6756A, N6761A, N6762A, N6763A, N6764A, N6765A, N6766A, N6773A, N6774A, N6775A, N6776A, N6781A, N6782A, N6783A-BAT, N6783A-MFG, N6784A

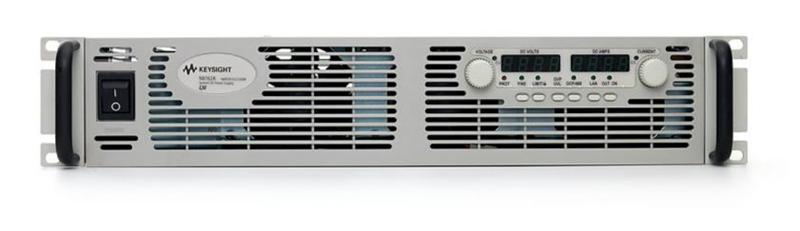

  • Keysight N87xxA Series: N8731A, N8732A, N8733A, N8734A, N8735A, N8736A, N8737A, N8738A, N8739A, N8740A, N8741A, N8742A, N8754A, N8755A, N8756A, N8757A, N8758A, N8759A, N8760A, N8761A, N8762A

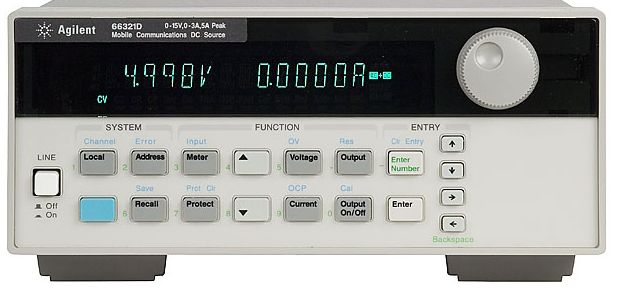

  • Keysight 663xxy Series: 66332A, 66332A-J01, 66309B, 66309D, 66319B, 66319D, 66311B, 66311D, 66321B, 66321D

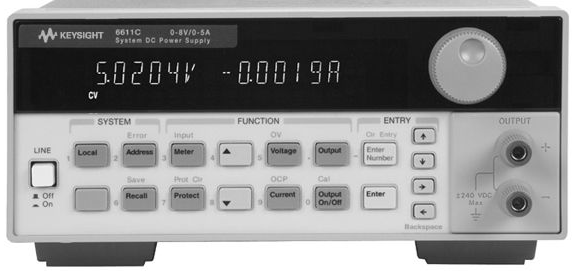

  • Keysight 66xxy Series: 6692A, 6691A, 6690A, 6684A, 6683A, 6682A, 6681A, 6680A, 6675A, 6674A, 6673A, 6672A, 6671A, 6655A, 6654A, 6653A, 6652A, 6651A, 6645A, 6644A, 6643A, 6642A, 6641A, 6634B, 6633B, 6632B, 6631B, 6614C, 6613C, 6612C, 6611C-J05, 6611C


  • Keysight 603xA Series (When configured for SCPI. Otherwise, please refer to Keysight Legacy Power Supplies): 6030A, 6031A, 6032A, 6033A, 6035A, 6038A


Driver options:

Driver options of Keysight Generic Power Supplies

Keysight Legacy Power Supplies [DC mode Only]

  • Keysight 662xA Series: 6621A, 6622A, 6623A/6623A-J03, 6624A, 6625A, 6626A, 6627A, 6628A, 6629A, 6623A, 6623A-J03, 6621A, 6622A, 6625A, 6628A

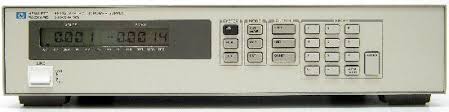

  • Keysight 663xA Series: 6632A, 6633A, 6634A


  • Keysight 60xxA Series (When configured for COMPliant mode. Otherwise, please refer to Keysight Generic Power Supplies): 6030A, 6031A, 6032A, 6033A, 6035A, 6038A


Driver options:

Driver options of Keysight Legacy Power Supplies

Keysight SMU Power Supplies [DC, Pulsed mode Supported]

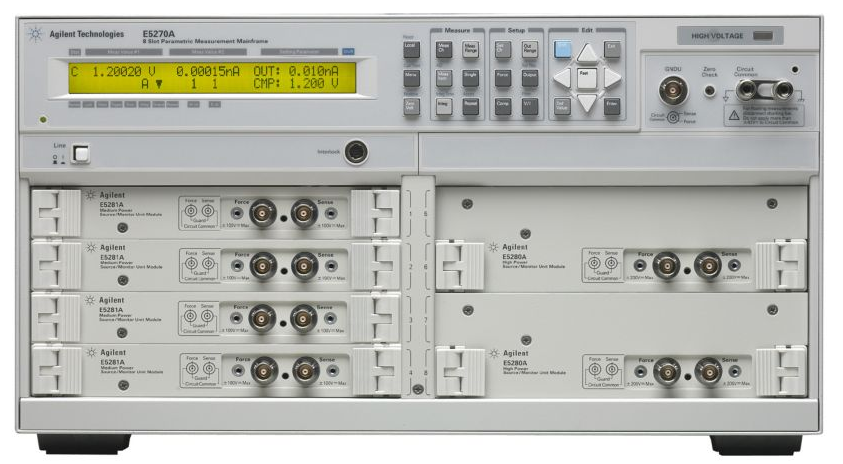

  • Keysight E527xy Series: E5270A, E5270B, E5273A, E5273B

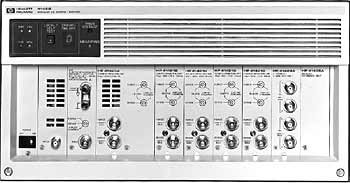

  • Keysight 4142y Series: 4142B


Driver options:

Driver options of Keysight SMU Power Supplies

Keysight InfiniiVision & Infiniium [DC, Pulsed mode Supported]

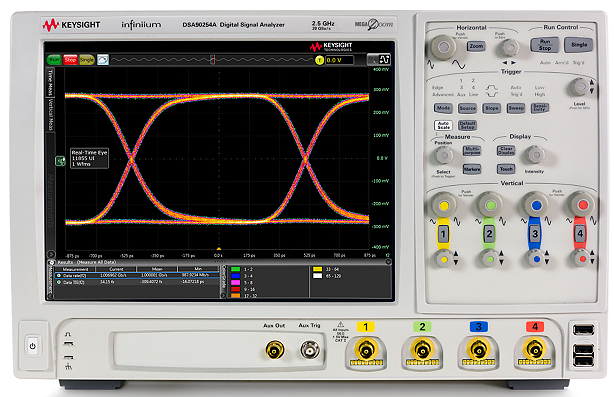

  • Keysight DSx9yyyyA Series: DSO91304A, DSA91304A, DSO91204A, DSA91204A, DSO90804A, DSA90804A, DSO90604A, DSA90604A, DSO90404A, DSA90404A, DSO90254A, DSA90254A

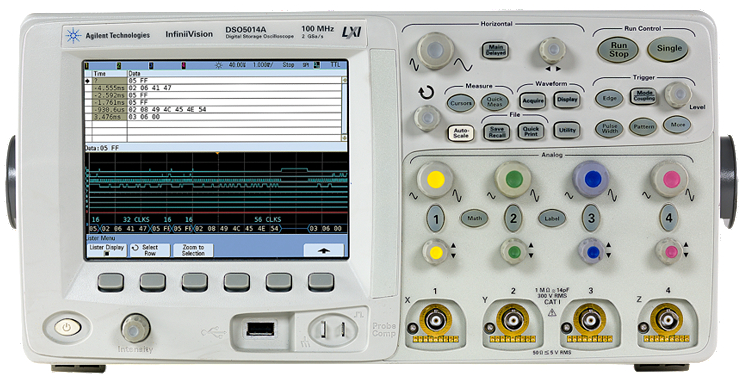

  • Keysight xSO5yyyA Series: DSO5054A, MSO5054A, DSO5034A, MSO5034A, DSO5014A, MSO5014A, DSO5052A, MSO5052A, DSO5032A, MSO5032A, DSO5012A, MSO5012A

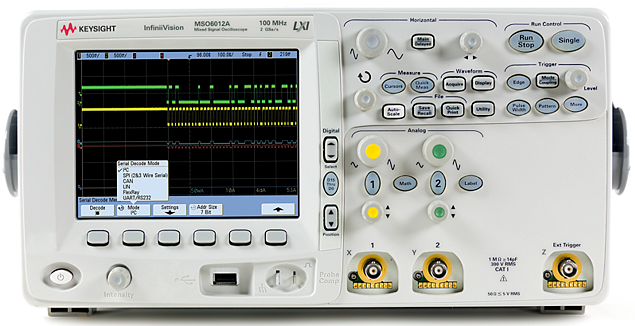

  • Keysight xSO6yyyA Series: DSO6104A, MSO6104A, DSO6104L, DSO6054A, MSO6054A, DSO6054L, DSO6034A, MSO6034A, DSO6014A, MSO6014A, DSO6014L, DSO6102A, MSO6102A, DSO6052A, MSO6052A, DSO6032A, MSO6032A, DSO6012A, MSO6012A

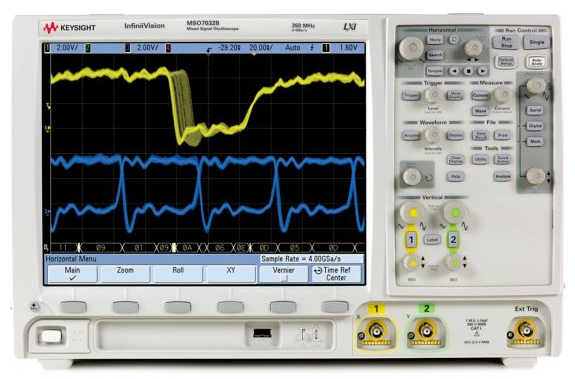

  • Keysight xSO7yyyz Series: DSO7104A, MSO7104A, DSO7104B, MSO7104B, DSO7054A, MSO7054A, DSO7054B, MSO7054B, DSO7014A, MSO7014A, DSO7034A, MSO7034A, DSO7014B, MSO7014B, DSO7034B, MSO7034B, DSO7102A, MSO7102A, DSO7102B, MSO7102B, DSO7052A, MSO7052A, DSO7052B, MSO7052B, DSO7012A, MSO7012A, DSO7032A, MSO7032A, DSO7012B, MSO7012B, DSO7032B, MSO7032B

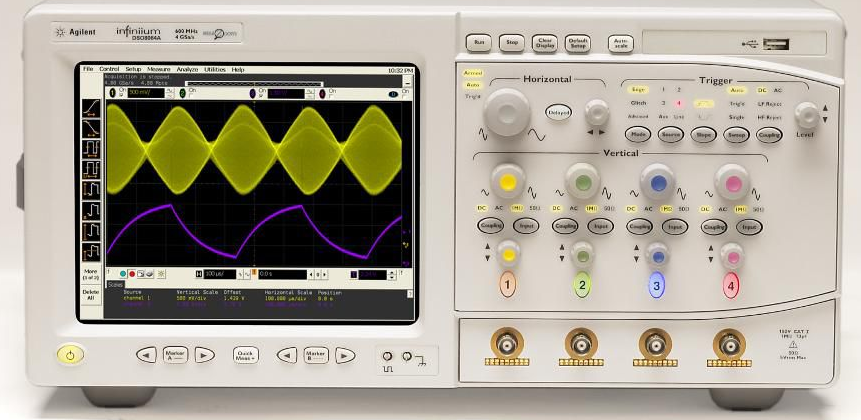

  • Keysight xSO8yyyA Series: DSO8104A, MSO8104A, DSO8064A, MSO8064A

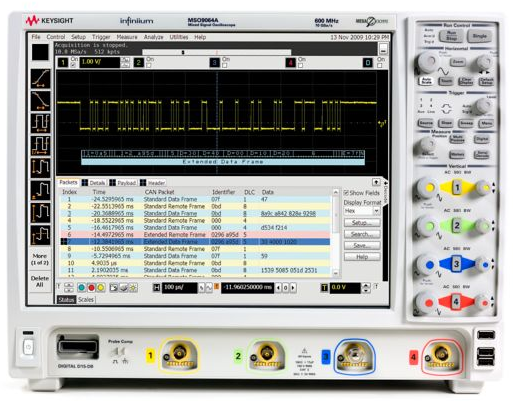

  • Keysight xSO9yyyA Series: DSO9404A, MSO9404A, DSO9254A, MSO9254A, DSO9104A, MSO9104A, DSO9064A, MSO9064A

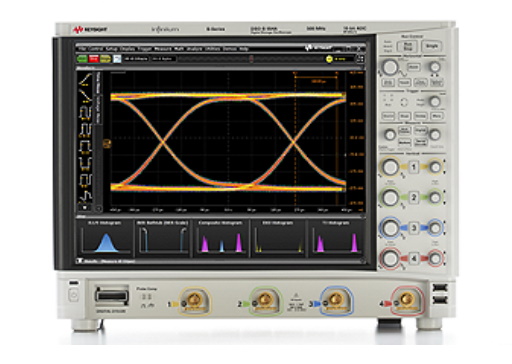

  • Keysight DSOSxxxA Series: DSOS054A, MSOS054A, DSOS104A, MSOS104A, DSOS204A, MSOS204A, DSOS254A, MSOS254A, DSOS404A, MSOS404A, DSOS604A, MSOS604A, DSOS804A, MSOS804A

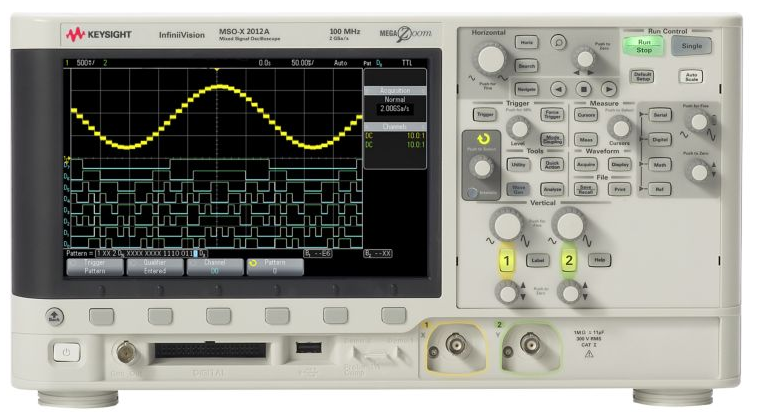

  • Keysight xSOX2yyyA Series: DSOX2024A, MSOX2024A, DSOX2004A, MSOX2004A, DSOX2014A, MSOX2014A, DSOX2022A, MSOX2022A, DSOX2002A, MSOX2002A, DSOX2012A, MSOX2012A

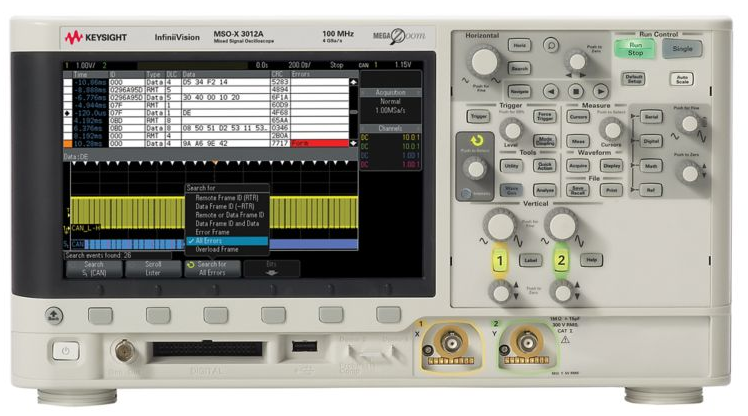

  • Keysight xSOX3yyyA Series: DSOX3104A, MSOX3104A, DSOX3102A, MSOX3102A, DSOX3054A, MSOX3054A, DSOX3034A, MSOX3034A, DSOX3014A, MSOX3014A, DSOX3052A, MSOX3052A, DSOX3032A, MSOX3032A, DSOX3012A, MSOX3012A

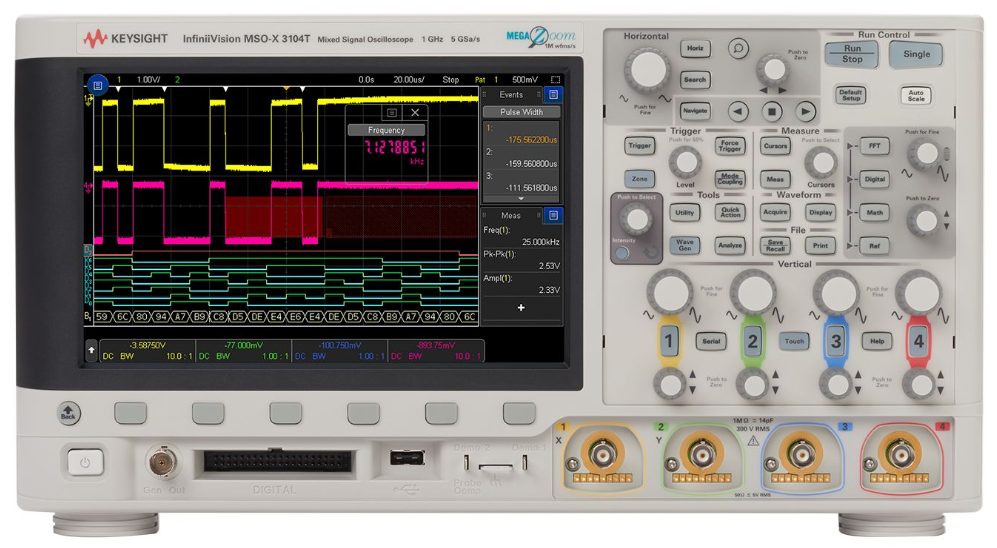

  • Keysight X3K Series (New): DSOX3012T, MSOX3012T, DSOX3022T, MSOX3022T, DSOX3032T, MSOX3032T,DSOX3052T, MSOX3052T, DSOX3102A, MSOX3102A, DSOX3102T, MSOX3102T, DSOX3014T, MSOX3014T, DSOX3024T, MSOX3024T, DSOX3034T, MSOX3034T, DSOX3054T, MSOX3054T, DSOX3104A, MSOX3104A, DSOX3104T, MSOX3104T

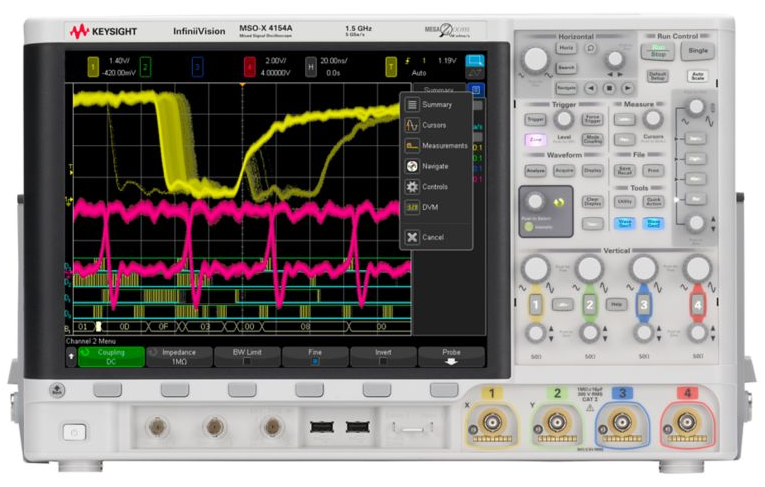

  • Keysight X4K Series (New): DSOX4022A, MSOX4022A, DSOX4032A, MSOX4032A, DSOX4052A, MSOX4052A, DSOX4024A, MSOX4024A, DSOX4034A, MSOX4034A, DSOX4054A, MSOX4054A, DSOX4104A, MSOX4104A, DSOX4154A, MSOX4154A

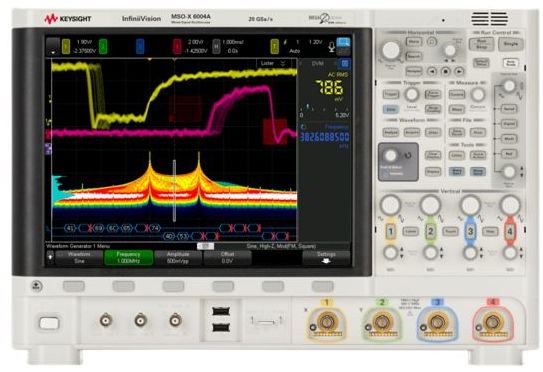

  • Keysight X6K Series (New): DSOX6002A, MSOX6002A, DSOX6004A, MSOX6004A

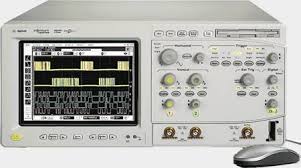

  • Keysight 5483xy Series: 54833A, 54833D, 54832B, 54832D, 54831B, 54831D, 54830B, 54830D

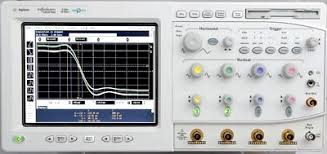

  • Keysight 5485xA Series: 54855A, 54854A, 54853A, 54852A


Driver options:

Driver options of Keysight InfiniiVision & Infiniium

National Instruments PXIe Power Supplies [DC mode Only]

More details on using this instrument here.

  • National Instruments PXIe-4110 [Not tested]

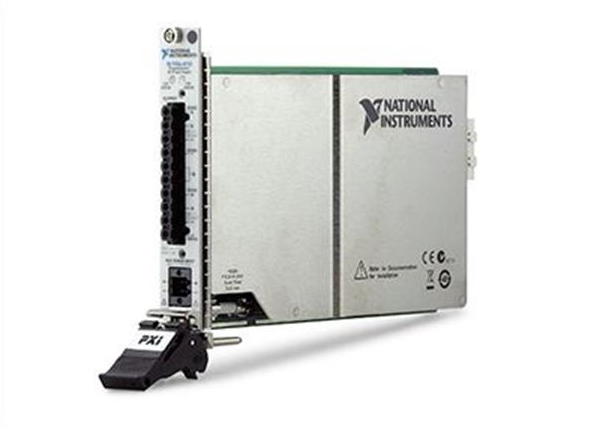

  • National Instruments PXIe-4112, PXIe-4113, PXIe-4154


Rohde & Schwarz Generic Power Supplies [DC mode Only]

Recommended USB or GPIB communication

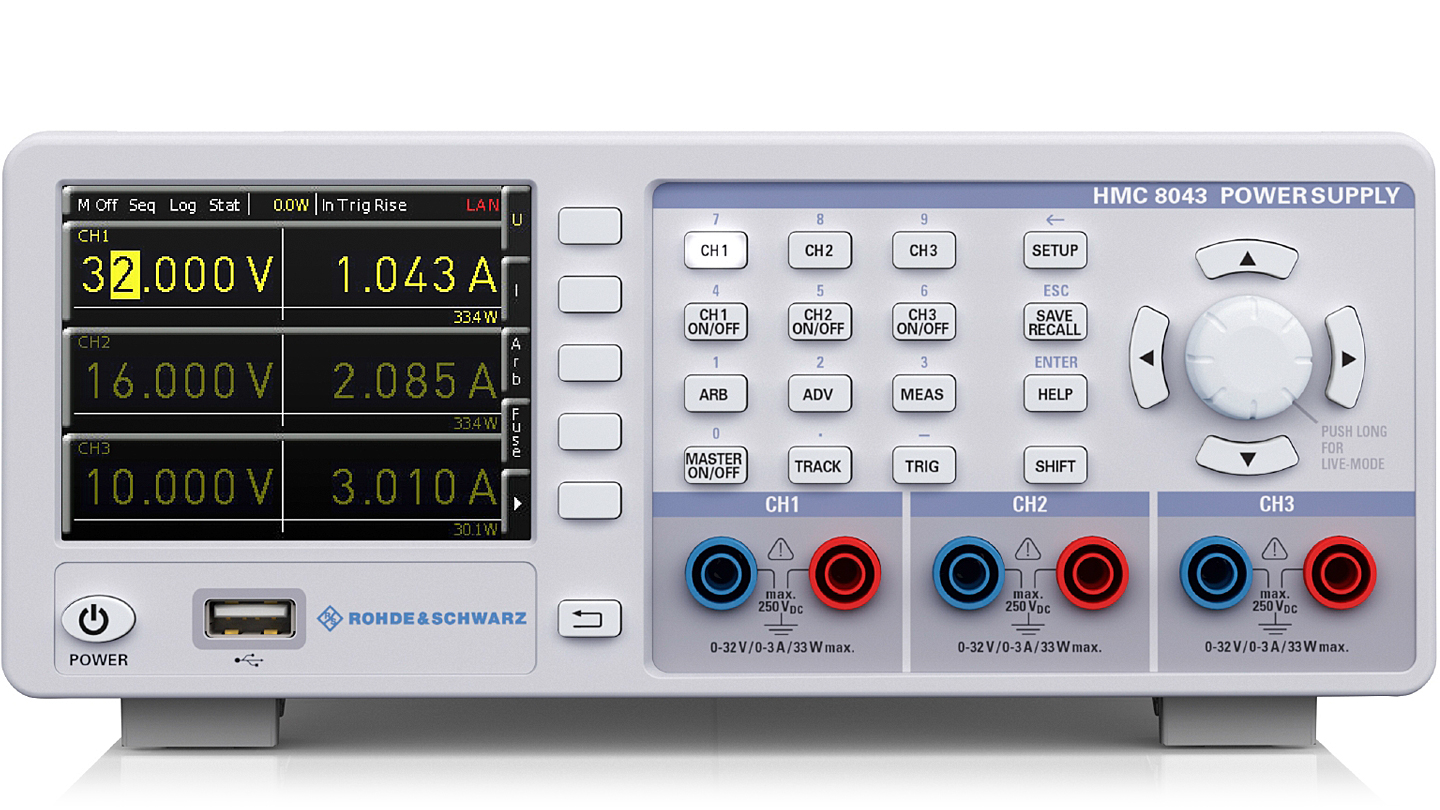

  • Rohde & Schwarz HMC Series: HMC8041(-G), HMC8042(-G), HMC8043(-G)

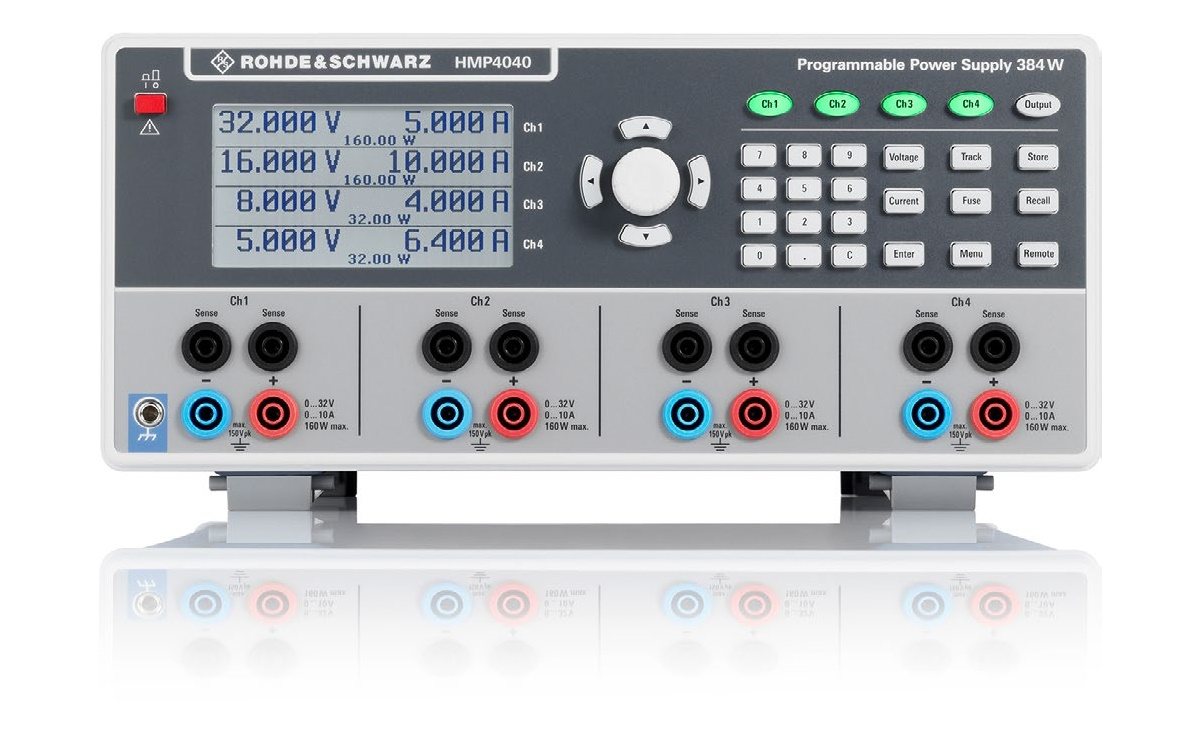

  • Rohde & Schwarz HMP Series: HMP2020, HMP2030, HMP4030, HMP4040

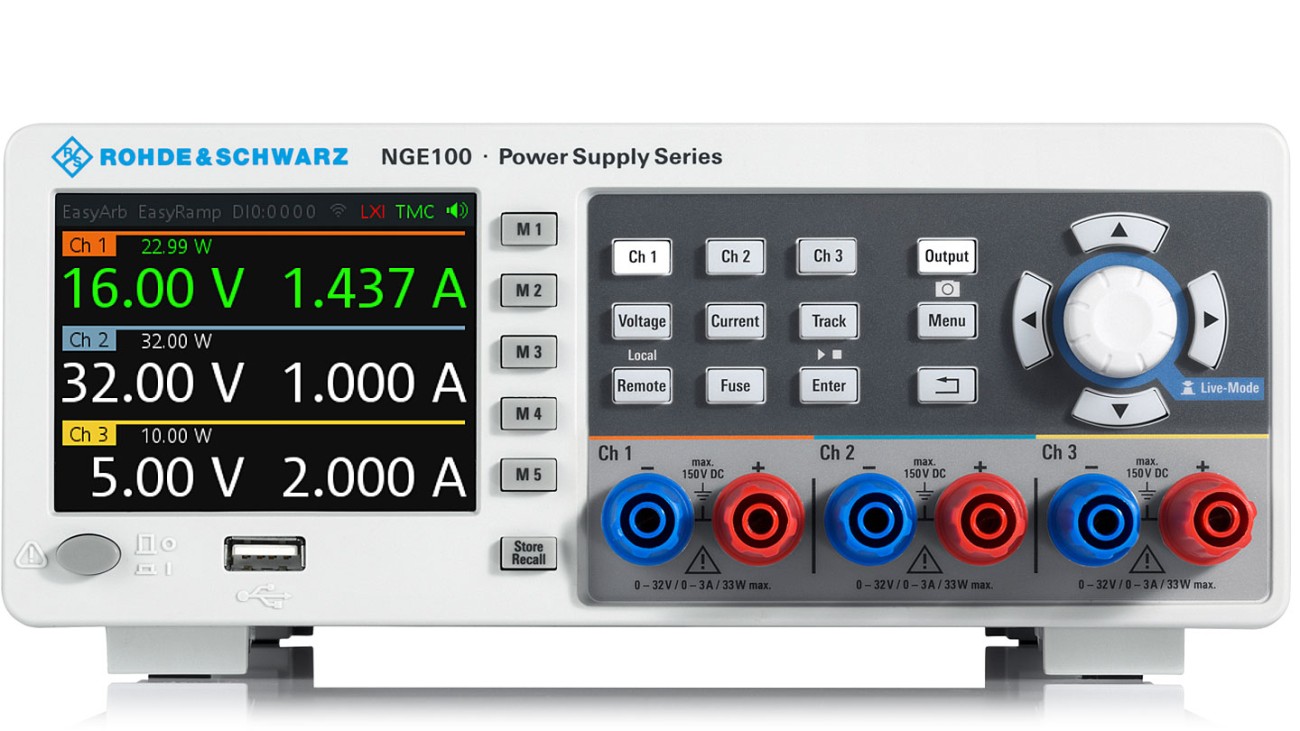

  • Rohde & Schwarz NGE Series: NGE102B, NGE103B

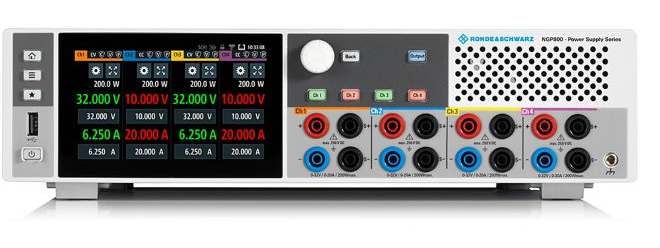

  • Rohde & Schwarz NGP Series: NGP802, NGP804, NGP814, NGP822, NGP824

Driver options:

Driver options of Rohde & Schwarz Generic Power Supplies

Rohde & Schwarz Oscilloscope [DC, Pulsed mode supported]

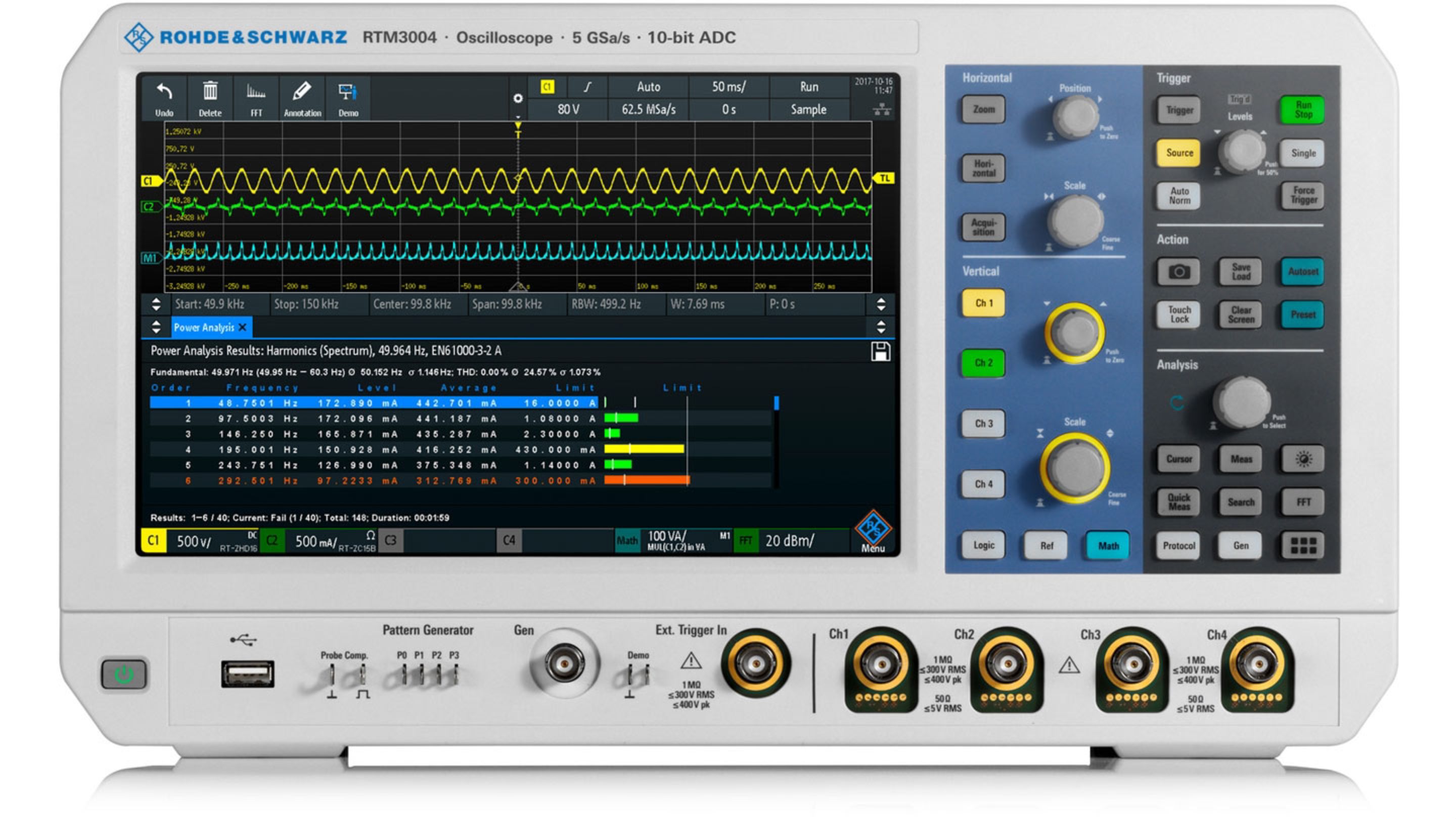

  • Rohde & Schwarz RTx Series: RTM3000, RTA4000
    Note: To use this device in LAN connection, use the adress 'TCPIP0::192.168.x.x::inst0::INSTR' associated to NI Visa layer (Getting Started : "Configure the VISA Library on the control PC") or USB connection.

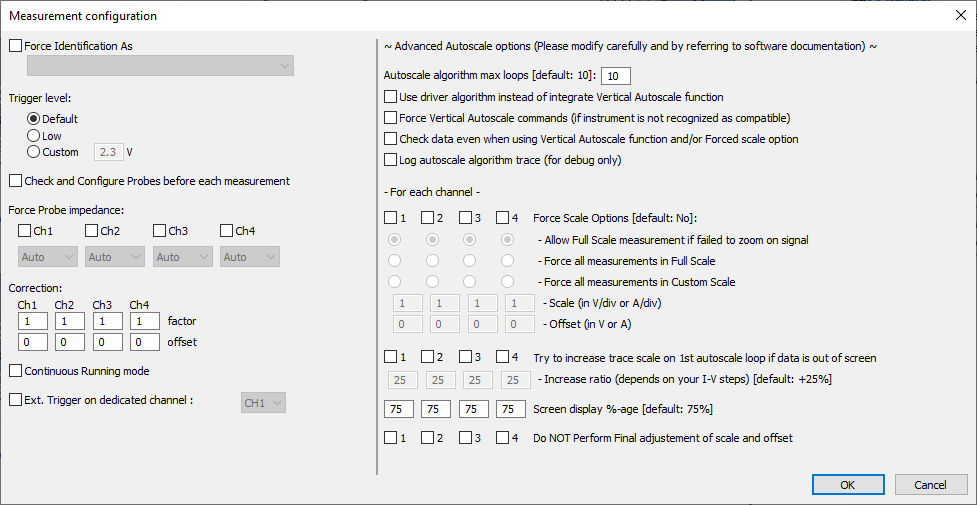

    Driver options:
    Note: Trigger can be set on a channel when specified in the option pop-up window


TDK Generic Power Supplies [DC mode Only]

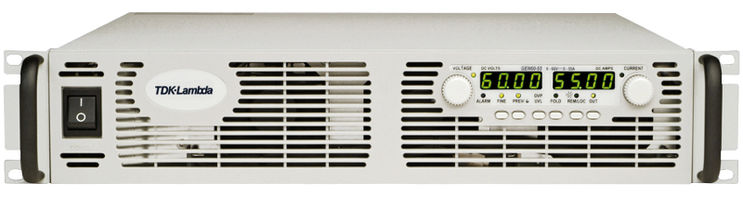

  • TDK Genesys


Driver options:

Driver options of TDK Generic Power Supplies

Tektronix Oscilloscopes [DC, Pulsed mode Supported]

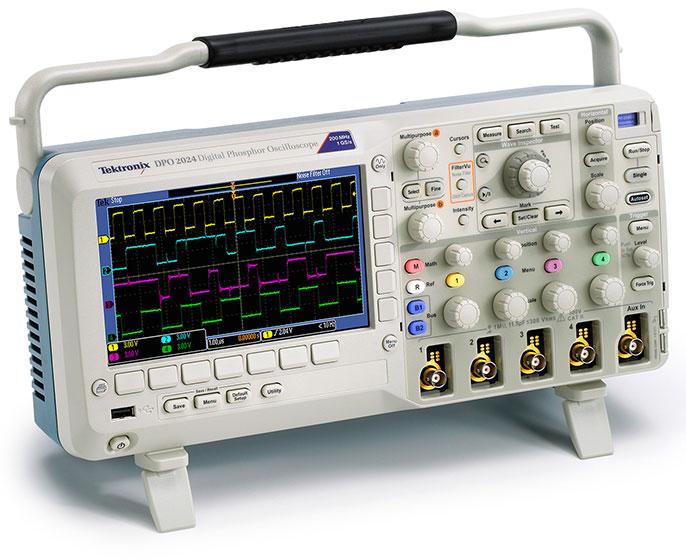

  • Tektronix DPO2xxxB Series: DPO2002B, DPO2012B, DPO2004B, DPO2022B, DPO2014B, DPO2024B
    10

  • Tektronix DPO4xxxB Series: DPO4014B, DPO4034B, DPO4054B, DPO4102B-L, DPO4102B, DPO4104B-L, DPO4104B

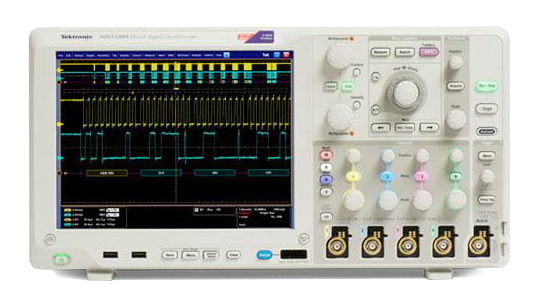

  • Tektronix DPO5xxxB Series: DPO5034B, DPO5054B, DPO5104B, DPO5204B

  • Tektronix DPO7xx4C Series: DPO7054C, DPO7104C, DPO7254C, DPO7354C

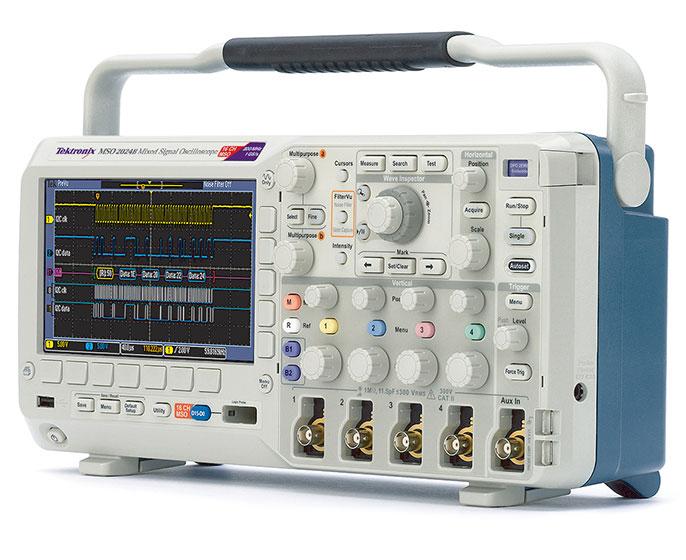

  • Tektronix MSO2xxxB Series: MSO2002B, MSO2012B, MSO2004B, MSO2022B, MSO2014B, MSO2024B

  • Tektronix MSO4xxxB Series: MSO4102B-L, MSO4102B, MSO4104B-L, MSO4104B

  • Tektronix MSO5xxxB Series: MSO5034B, MSO5054B, MSO5104B, MSO5204B

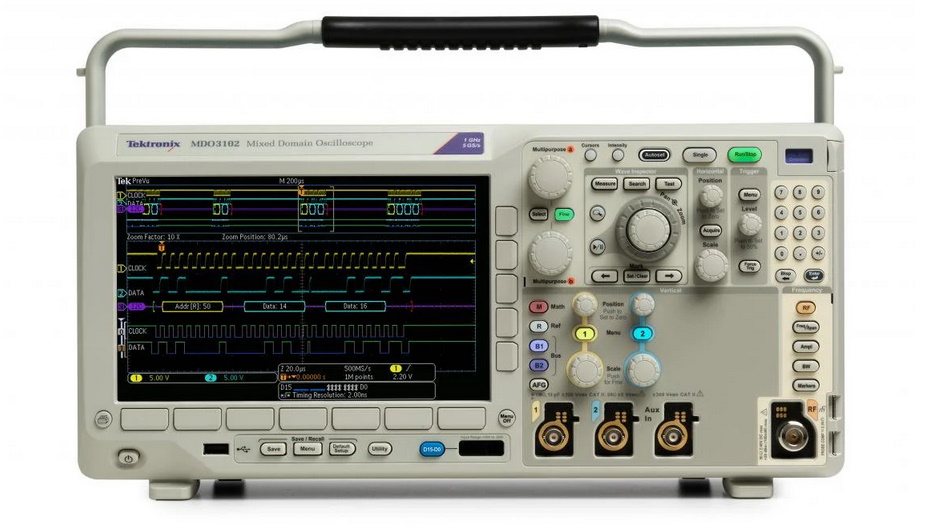

  • Tektronix MDO3xxx Series: MDO3012, MDO3014, MDO3022, MDO3024, MDO3032, MDO3034, MDO3052, MDO3102, MDO3054, MDO3104

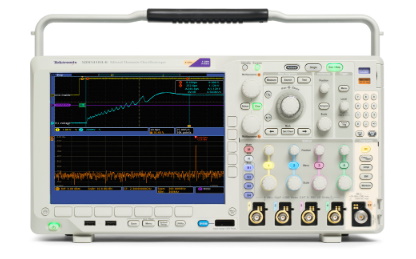

  • Tektronix MDO4xxx Series: MDO4014-3, MDO4034-3, MDO4054-3, MDO4054-6, MDO4104-3, MDO4104-6

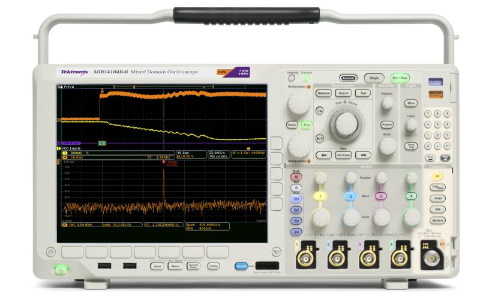

  • Tektronix MDO4xxxB Series: MDO4014B-3, MDO4034B-3, MDO4054B-3, MDO4054B-6, MDO4104B-3, MDO4104B-6

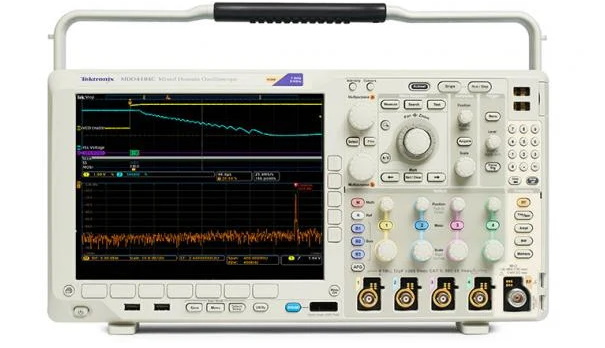

  • Tektronix MDO4xxxC Series: MDO4024C, MDO4034C, MDO4054C, MDO4104C

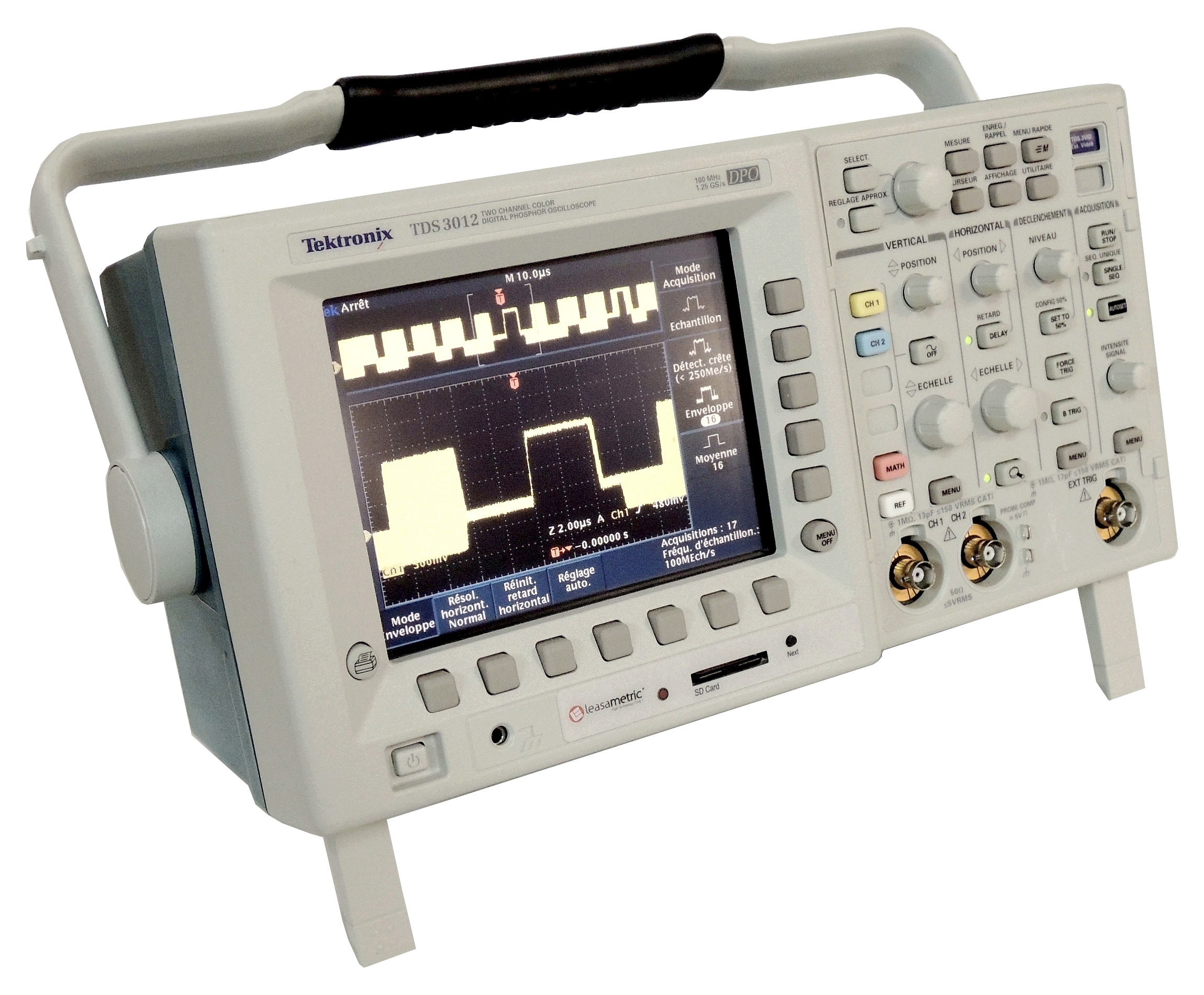

  • Tektronix TDS3xxxB Series: TDS3014B , TDS3032B , TDS3034B , TDS3052B , TDS3054B , TDS3012B , TDS3024B , TDS3044B , TDS3064B

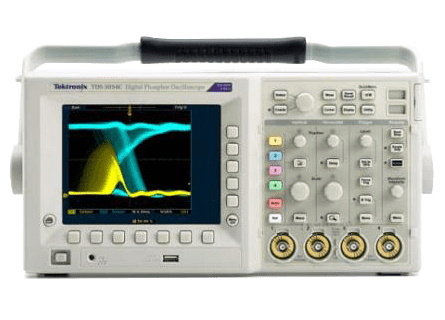

  • Tektronix TDS3xxxC Series: TDS3012C , TDS3014C , TDS3032C , TDS3034C , TDS3052C , TDS3054C

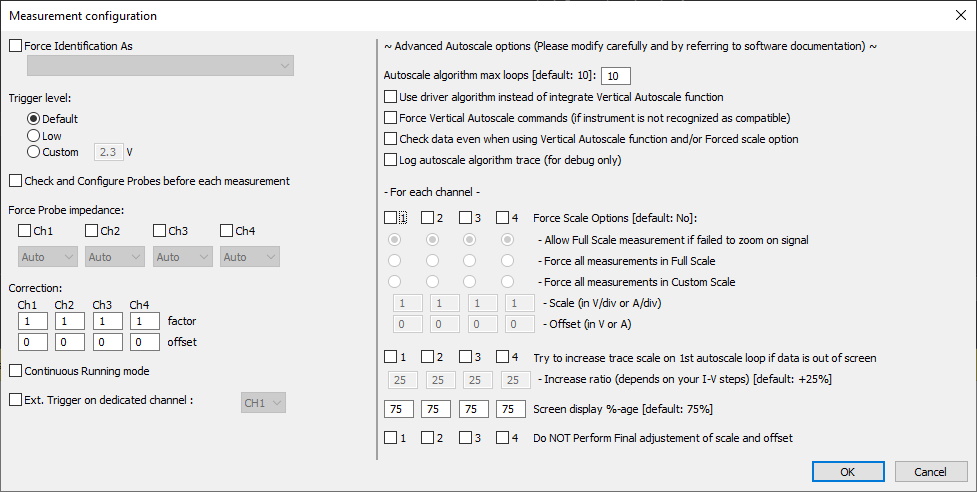

Driver options:

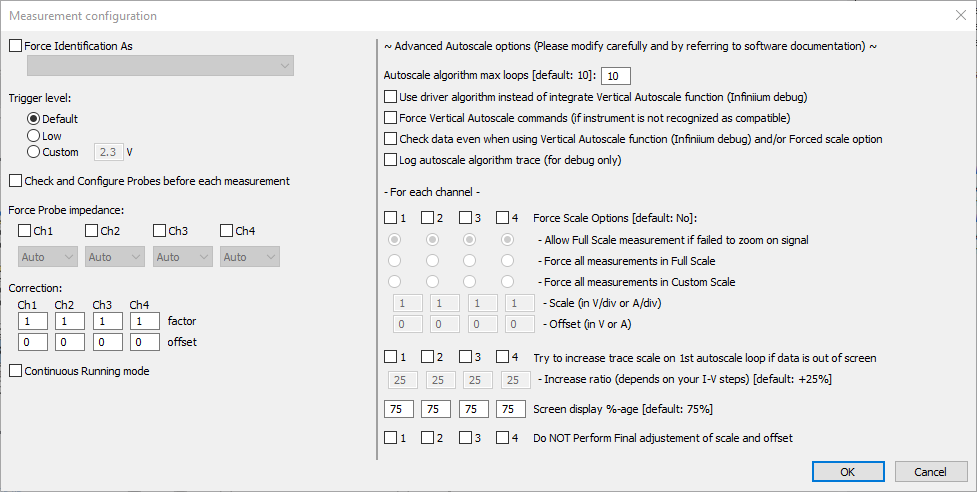

Left column description :

  • Force Identification As : Specify a series product ID in order for the driver to do as if the scope was the one specified.
  • Trigger level: Specify a trigger level, can be set on the default value, low or a custom value.
  • Check and Configure Probes before each measurement: The driver can check and reconfigure the probes before each measurement allowing to be certain of the probes impedances and attenuation before each measure.
  • Force Probe impedance: Specify if a channel needs a manual probe impedance to be specified.
  • Correction: Specify factors and offset to apply to the measured points if needed.
  • Continuous Runnig mode: Do not perform single acquisitions, always in running mode.
  • Ext. Trigger on dedicated channel: To avoid using the Aux port for any reason, it is possible to specify to the driver that the trigger signal is connected on an input channel.

Right column description

This column concerns the software autoscale algorithm performed by the driver when needed. This is section is to modify very carefully regarding the signals analysed.

  • Autoscale algorithm max loops: Max loops to perform (if goal is not reach, stops at the sepecified max).
  • Use driver algorithm instead of integrate Vertical Autoscale function: Use the scope integrated autoscale.
  • Force Vertical Autoscale commands: Use the scope integrated vertical autoscale.
  • Check data even when using Vertical Autoscale function and/or Forced scale option: verify that data is coherent (not out of screen) while performing vertical autoscale or forced custom scale.
  • Log autoscale algorithm trace: Output log in the console, usefull for debug only).
- For each channel -
  • Force Scale Option:
    • Allow Full Scale measurement if failed to zoom on signal: If autoscale algorithm does not find a solution, place the scope in max scale before measurement.
    • Force all measurement in Full Scale
    • Force all measurement in Custom Scale
  • Try to increase trace scale on 1st autoscale loop if data is out of screen
  • Screen display %-age: Default is 75%, meaning that 75% of the screen will be used to display the waveform (centered on the center)
  • Do NOT Perform Final adjustement of scale and offset

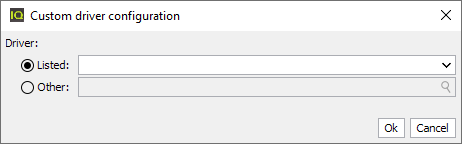

IQSTAR Custom Drivers [DC mode Only]

Compatible with the drivers generated from IQSTAR Driver Wizard plug-in.
To create your custom driver, refer to Driver Wizard.

Driver options:

Driver options of IQSTAR Custom Drivers
