Supported Power Meters

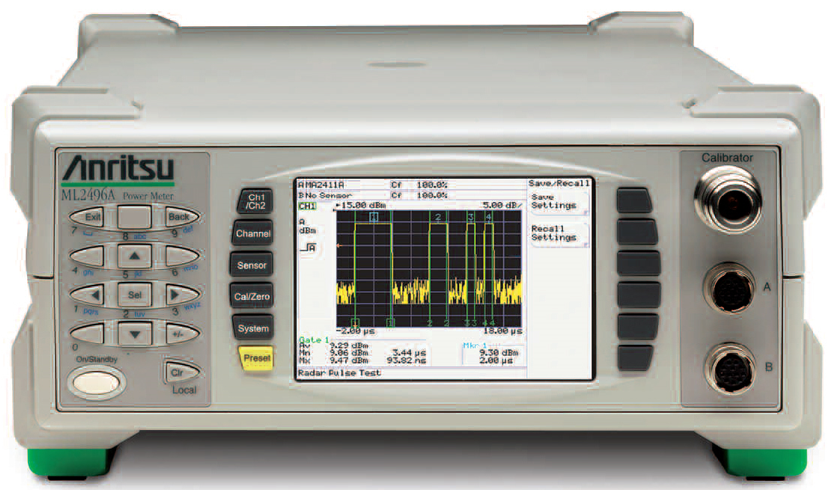

Anritsu ML248xB & ML249xB [CW, Pulsed mode Supported]
- Anritsu ML248xB & ML249xB Series
Boonton Generic Power Meters [CW, Pulsed mode Supported]
To Dialog with this instrument you need to parameter GPIB communication in Util > Remote Conf > GPIB > Setup > Submenu. Then select 'LF' as Listen and Talk terms.

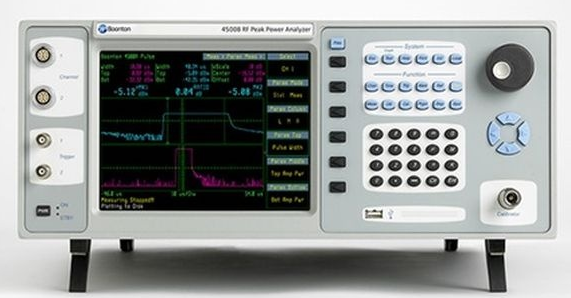

- Boonton 4K Series :4540, 4530, 4500B, 4240

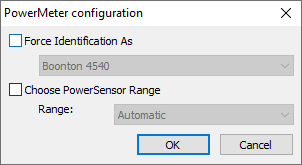

Driver options:

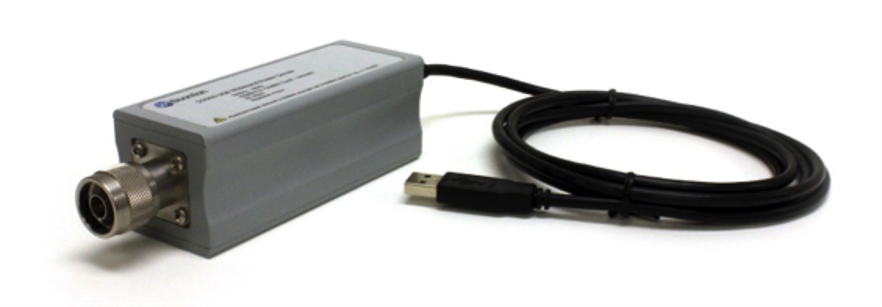

Boonton USB Power Meters [CW, Pulsed mode Supported]
To Dialog with this instrument you need to parameter GPIB communication in Util > Remote Conf > GPIB > Setup > Submenu. Then select 'LF' as Listen and Talk terms. ~ Updated to DLL 2.6.3
- Boonton 55K Series : 55006, 55318, 55340, 55518, 55540

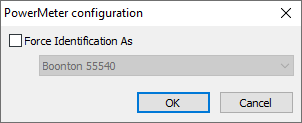

Driver options:

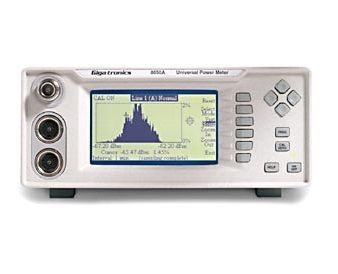

Giga-tronics Generic Power Meters [CW, Pulsed mode Supported]
To Dialog with this instrument you need to parameter GPIB communication in Util > Remote Conf > GPIB > Setup > Submenu. Then select 'LF' as Listen and Talk terms.
- 8651A, 8652A, 8651B, 8652B

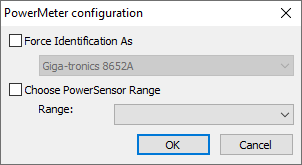

Driver options:
Keysight Generic Power Meters [CW, Pulsed mode Supported]
- Keysight E44xxY Series : E4418B, E4419B, E4416A, E4417A

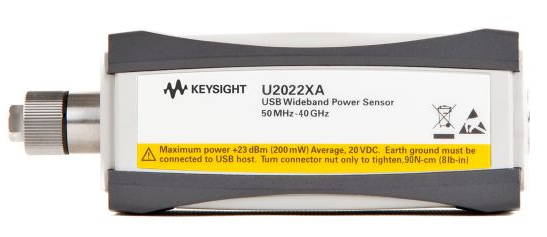

- Keysight U20xxXA Series : U2021XA, U2022XA, U2041XA, U2042XA,
U2043XA, U2044XA, U2049XA,U2053XA, U2054XA, U2055XA
- Keysight L20xxXA Series : L2051XA, L2052XA, L2053XA, L2054XA, L2055XA, U2064XA, U2065XA, L2061XA, L2062XA, L2063XA, L2064XA, L2065XA, L2065XT

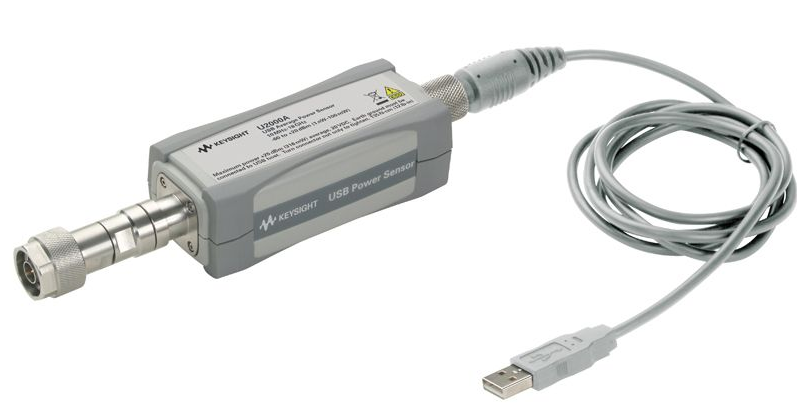

- Keysight U2xxxy Series : U2000A, U2001A, U2002A, U2004A, U2000B,
U2001B, U2000H, U2001H, U2002H

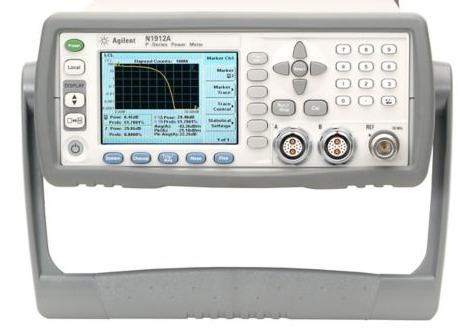

- Keysight N191xA Series : N1911A, N1912A, N1913A, N1914A

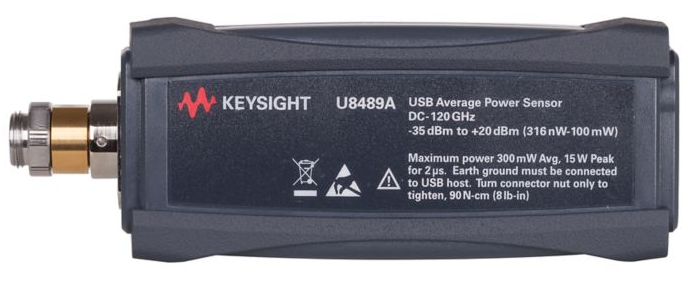

- Keysight U848xA Series : U8481A, U8485A, U8487A, U8488A, U8489A

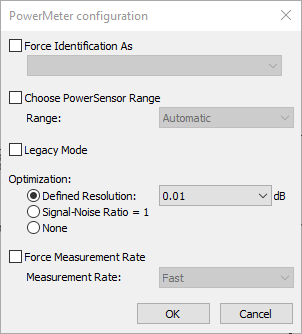

Driver options:

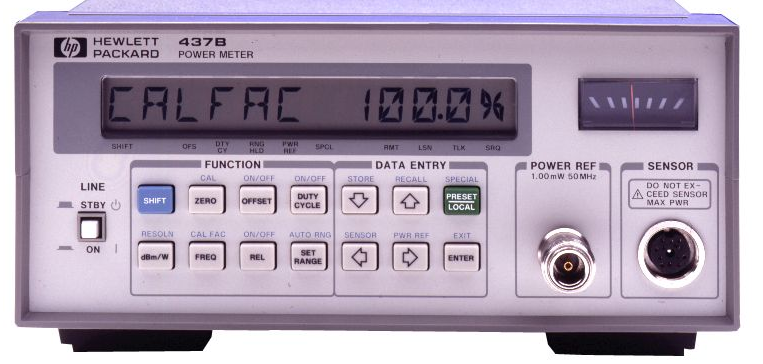

Keysight Legacy Power Meters [CW mode Only]
- Keysight 437B

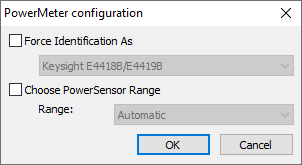

Driver options:

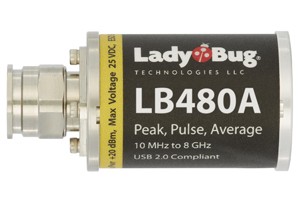

LadyBug Power Meters
To install power meter, refer to LadyBug LBxxxA Installation
- LB480A
Minicircuit Generic Power Meters [CW, Pulsed mode Supported]
- PWR-8P-RC
National Instruments Power Meters [CW mode Only]
- National Instruments 568x Series: USB-5680, USB-5681, USB-5683, USB-5684
Rohde & Schwarz NRP/NRP2 Power Meter & Power Sensor [CW, Pulsed mode Supported]
To install power meter, refer to Rohde & Schwarz NRP/NRP2 Installation
- Rohde & Schwarz NRP2

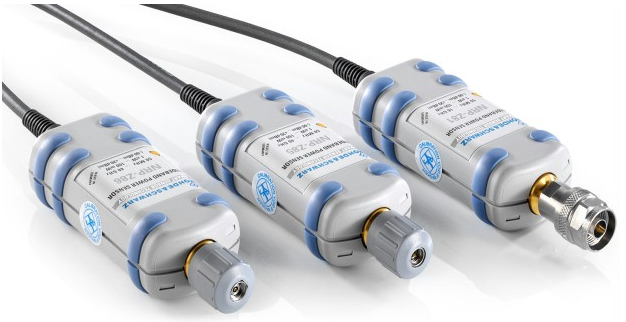

- Rohde & Schwarz NRP USB Power Sensor (Z Series)

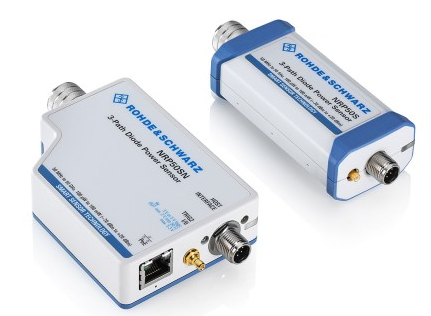

- Rohde & Schwarz NRP USB Power Sensor (2017+ Series)

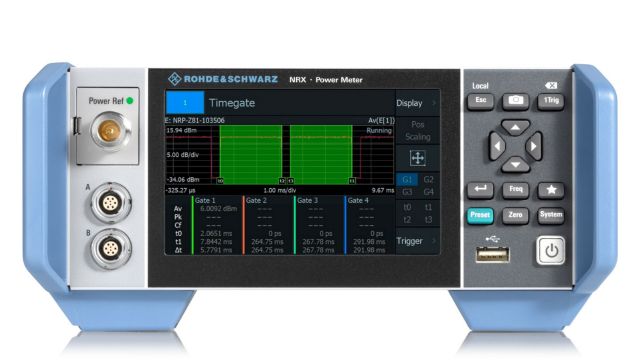

- Rohde & Schwarz NRX
More details on using this instrument here.

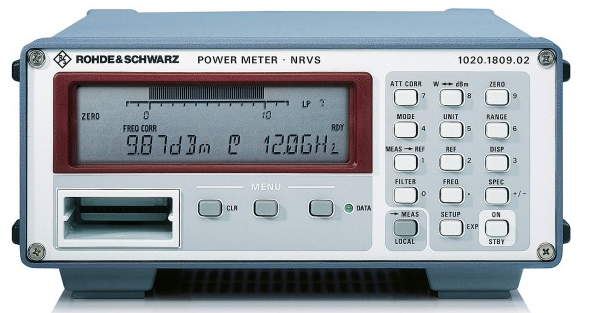

Rohde & Schwarz NRVS [CW mode Only]
- Rohde & Schwarz NRVS

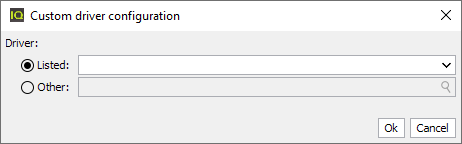

IQSTAR Custom Drivers [CW, Pulsed mode Supported]
Compatible with the drivers generated from IQSTAR Driver Wizard plug-in.
To create your custom driver, refer to Driver Wizard.
Driver options:
