LadyBug LBxxxA Installation



Installation of LabyBug Software :

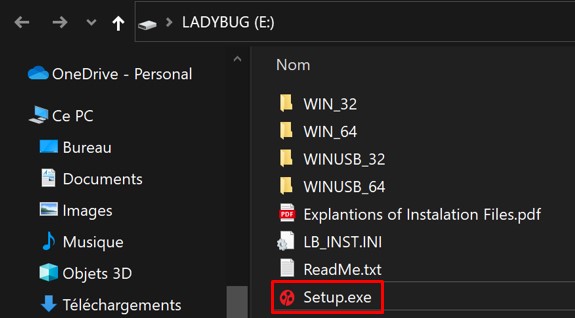

With all LadyBug Power Senors, an USB Key is added with a setup executable to install LadyBug Softwares.



You will have the following screen :

Then click on Next → Yes → Install → Exit

Installation of LadyBug USB Driver :

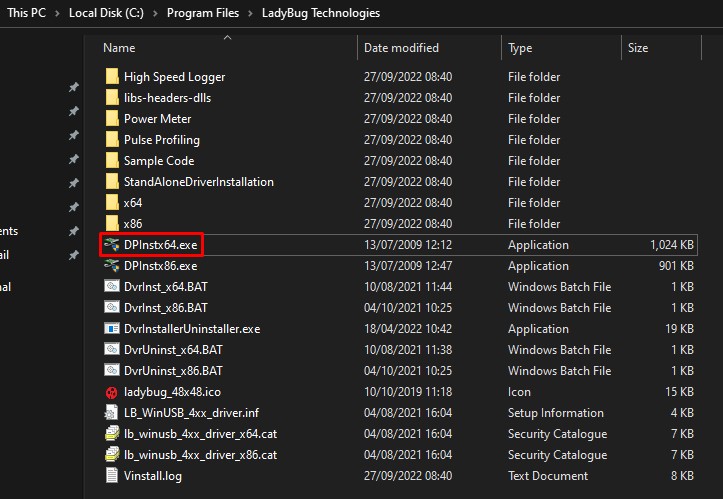

When all LadyBug applications are installed, go to the ladybug installation folder : "C:\Program Files\LadyBug Technologies" and run "DPInstx64.exe".

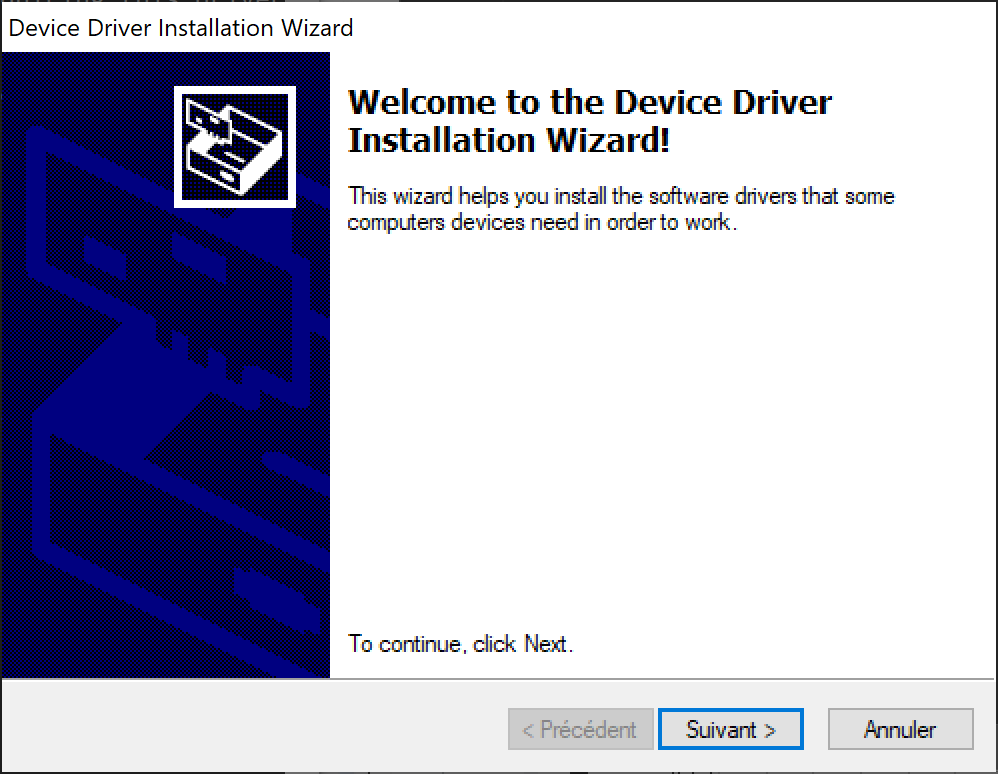

Then follow the installation process :

Then click on Next → Install → Finish

Try to run "Power Meter App"

USB Driver Installation issue :

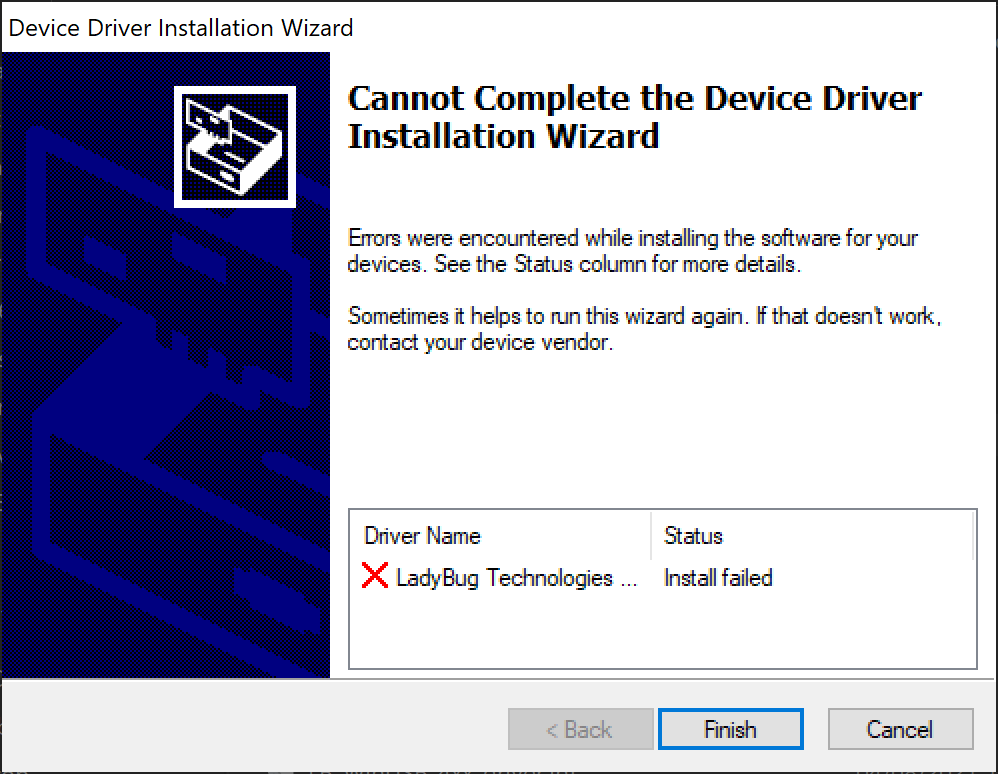

If the USB Driver installation fails with the error below :

Follow this process :
  1. Plug in the sensor
  2. Open device manager

  3. Right click on the sensor and select "Update Driver"

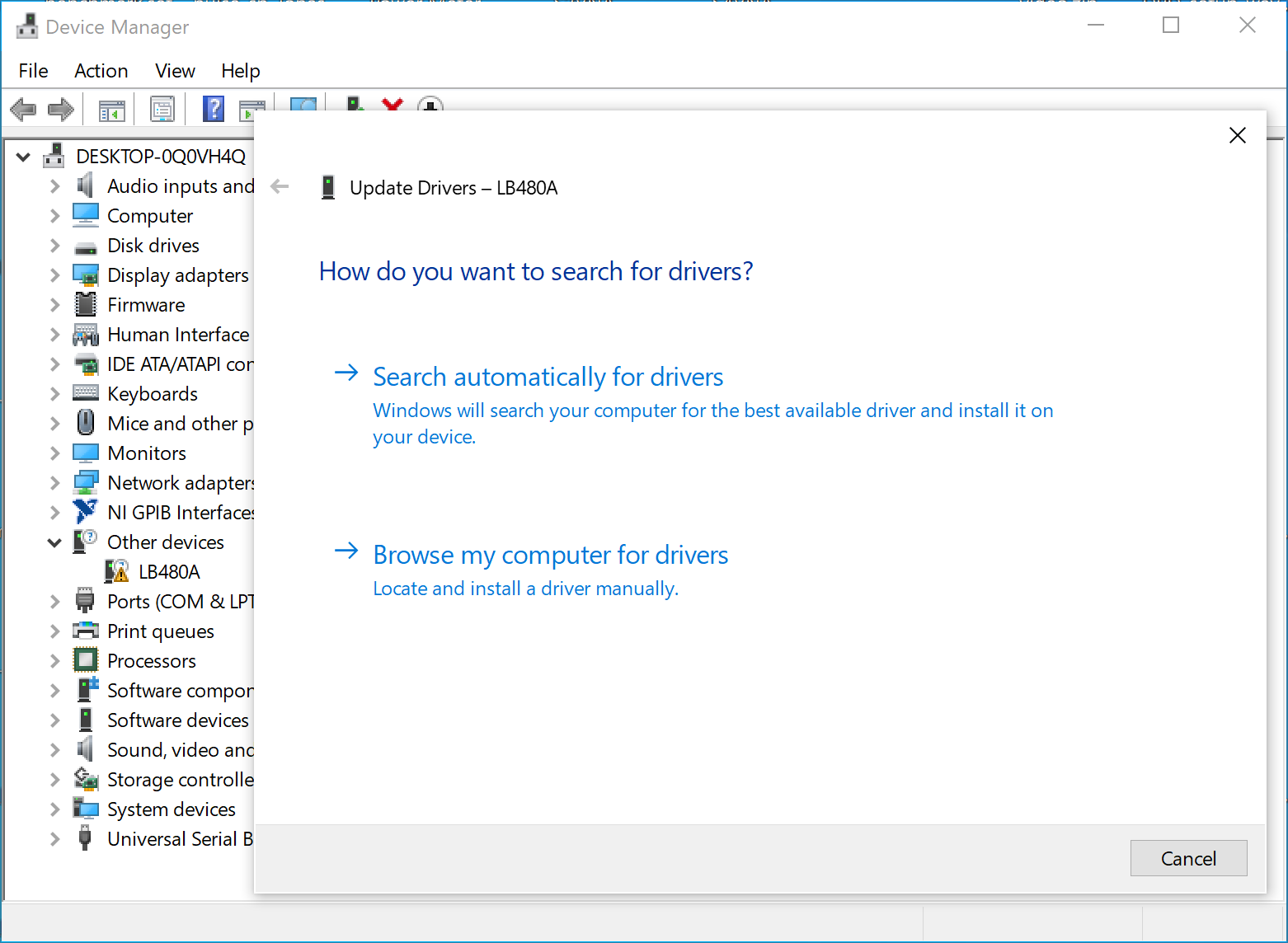

  4. Click on "Browse my computer for drivers"

  5. Click on "Let me pick from a list of available drivers on my computer"

  6. Select "Universal Serial Bus Devices"

  7. Click on "WinUsb Device", then "WinUsb Device" and "Next"

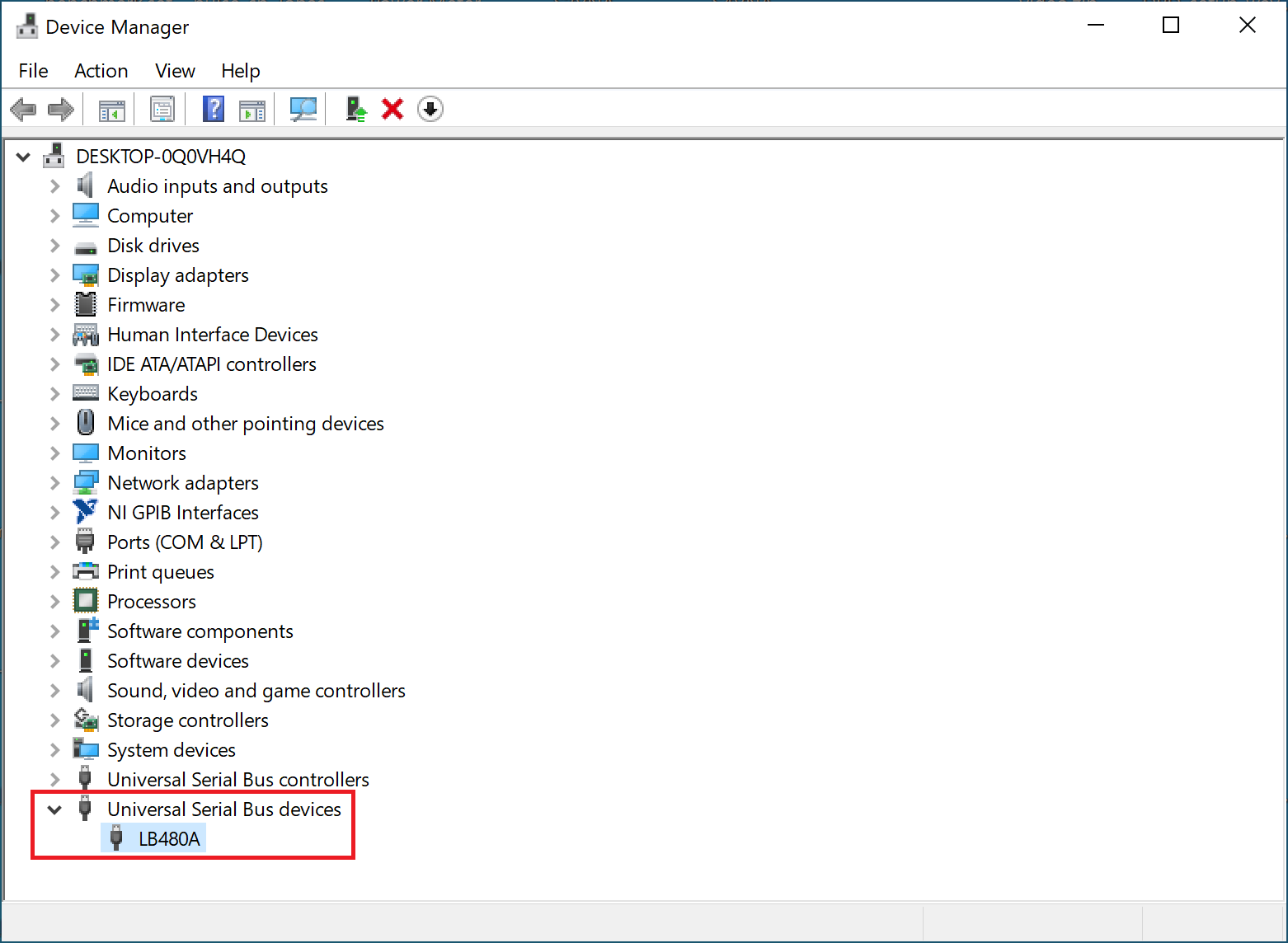

  8. Now the sensor is recognized as an USB Device

  9. Unplug and replug the sensor and open "Registry Editor"

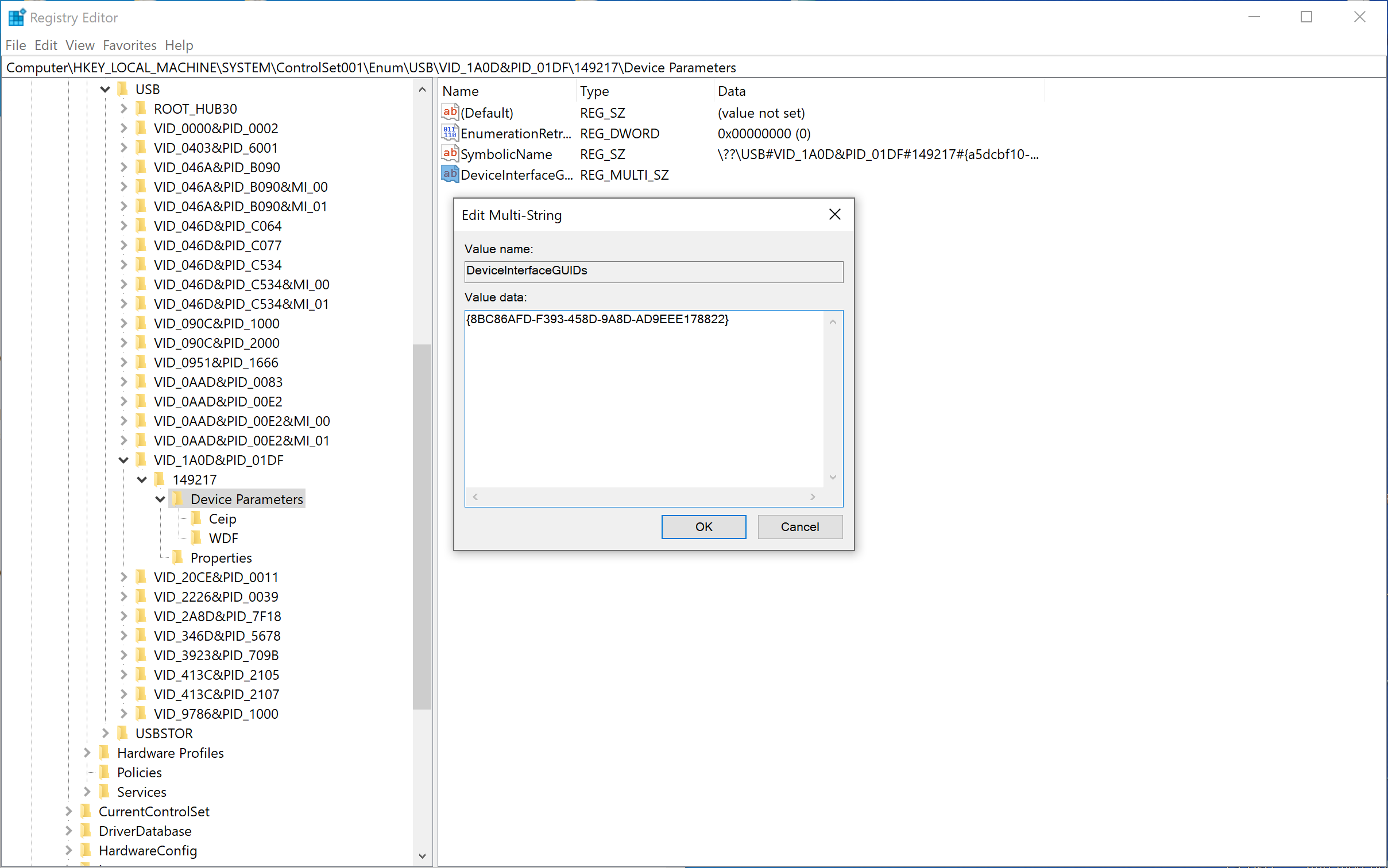

  10. Find your sensor serial number under the path "HKEY_LOCAL_MACHINE\SYSTEM\ControlSet001\Enum\USB\VID_1A0D&PID_01DF" and then edit or add the entry "DeviceInterfaceGUIDs" as a Multi-String Value

  11. Enter the GUID associated : {8BC86AFD-F393-458D-9A8D-AD9EEE178822}

  12. Close the Registry Editor and reboot the computer
  13. Try to run "Power Meter App"

Adding LadyBug libraries to Environment Variables

After having the LabyBug Sensor working with "Power Meter App", specify the LadyBug libraries to the environment variables :

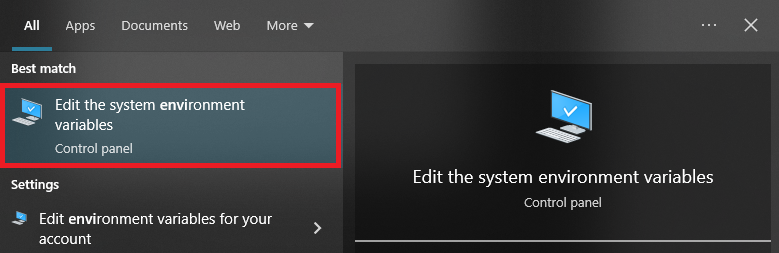

  1. Search for Environment variables in windows search bar

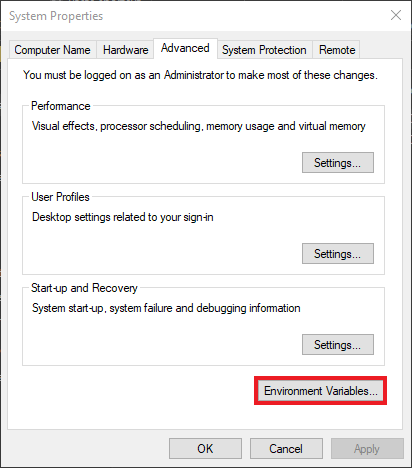

  2. Click on Environment Variables

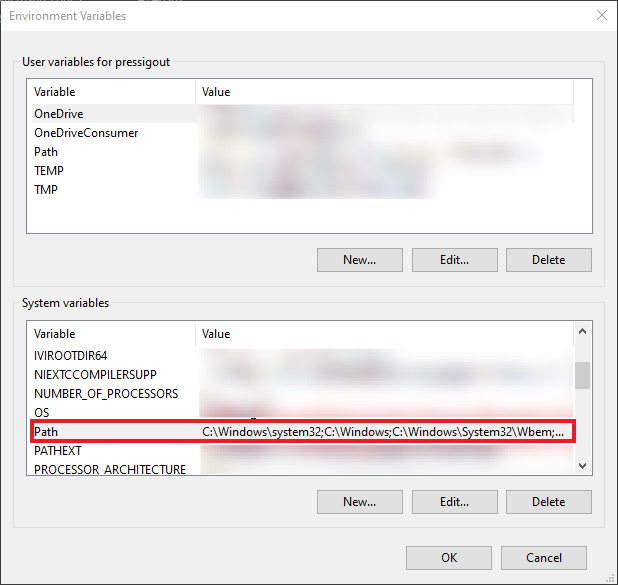

  3. Search for "Path" in the System variables

  4. Click on "New" and add boh library paths :
    • C:\Program Files\LadyBug Technologies\libs-headers-dlls\x64
    • C:\Program Files\LadyBug Technologies\libs-headers-dlls\x86
