Supported Vector Network Analyzers

Copper Mountain VNA (S2 & S4 VISA)

For both 2- & 4-ports VNA’s. Firmware version 21.2.1 for 2 ports VNAs, 22.2.6 for 4 ports VNAs, or newer. Learn more from Copper Mountain VNA Setup Instructions & Driver Details

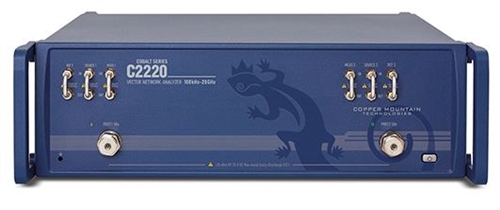

  • Copper Mountain VNA 2-Ports: 304/1, 804/1, 814/1, S5048, S5065, S5085, S7530, C1209, C1220,C2209, C2220, C4209, C4220, 808/1.

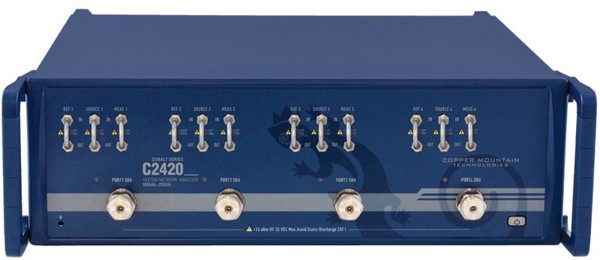

  • Copper Mountain VNA 4-Ports: C1409, C1420, C2409, C2420, C4409, C4420.


Driver options:

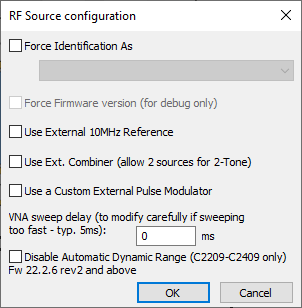

Driver options of Copper Mountain VNA

Rear Panel Input/Output signals:

  • External Trigger In: Used to trigger the VNA with an external device. Used to perform pulsed mesurements in synchronous WBF mode.
  • Trigger Out: Signal generated when performing Fast CW measurements to trigger the DMMs
  • External 10Mhz Input
  • 10MHz Output

Keysight Generic VNA [CW, Pulsed*, Spectrum** modes Supported]

* Pulsed mode supported with hardware options by PNA-X Series “A”, PNA-X Series “B”, PNA "New" Series “A”, PNA "New" Series “B”

** Spectrum mode supported on PNA-X Series "B" with Spectrum option 090 + option 90x

Last known working firmwares for PNA are versions A.10.60.03, A.09.90.21 and A.09.42.22.
Pulsed Measurement accuracy is guaranteed by Keysight starting from A.10.49.06 firmware version only.
Previous firmware versions may contain some issues that prevent usual operation.
For firmware versions prior to A.10.49.06, former pulse algorithm has been kept in the driver for periods >= 500µs to prevent complete fails of the measurement on Windows XP VNA’s.

  • Keysight PNA-L Series with XP (A.09.90.21 Firmware) or with win7 (A10.60.03 Firmware): N5230A, N5230C, N5231A, N5232A, N5234A, N5235A, N5239A, N5231B, N5232B, N5234B, N5235B, N5239B

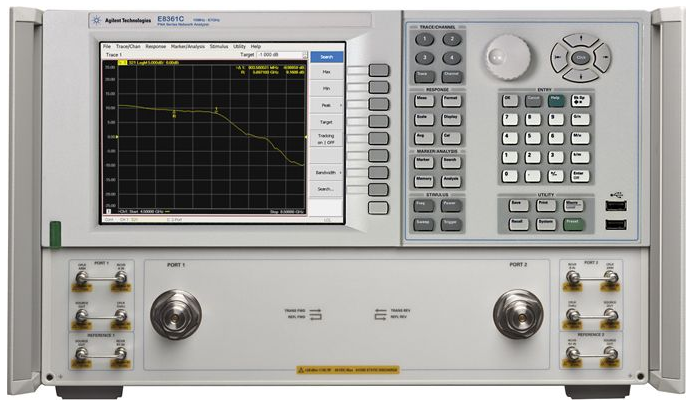

  • Keysight PNA-C Series with XP (A.09.90.21 Firmware) or with win7 (A10.60.03 Firmware): E8361A, E8362B, E8363B, E8364B, E8361C, E8362C, E8363C, E8364C

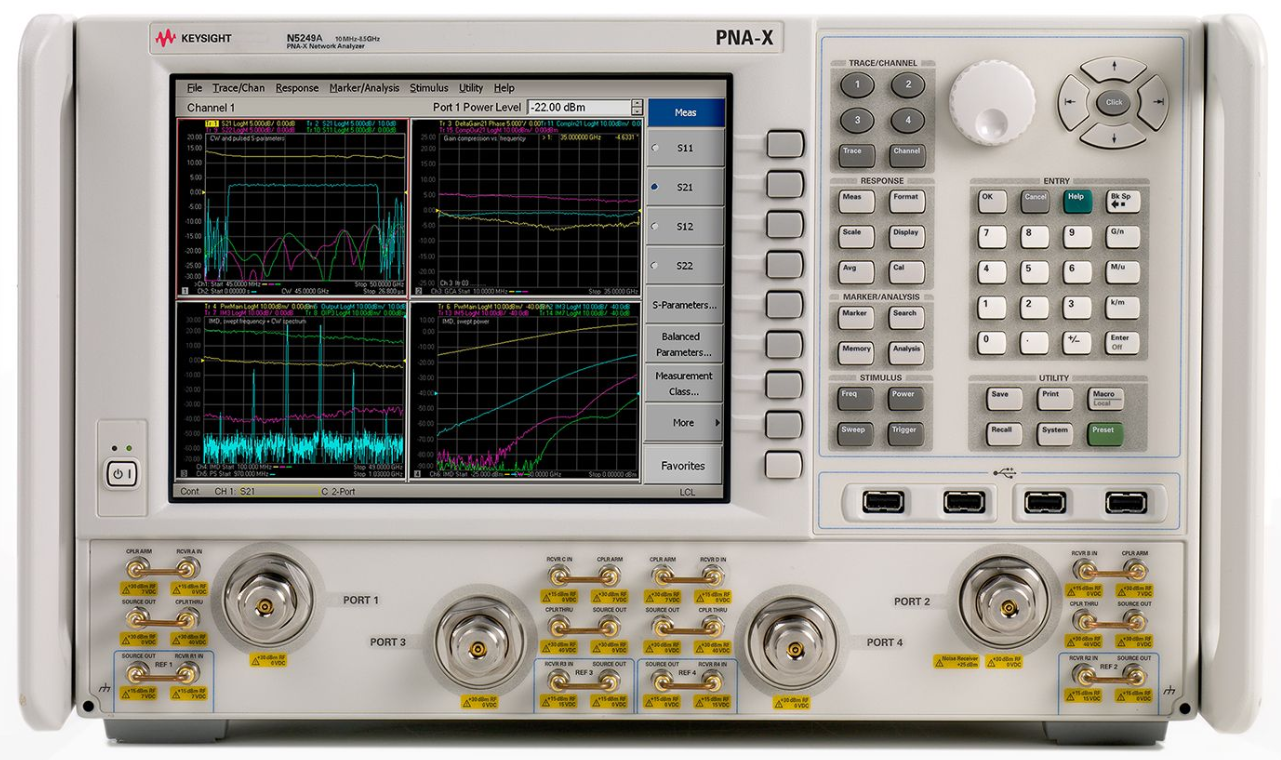

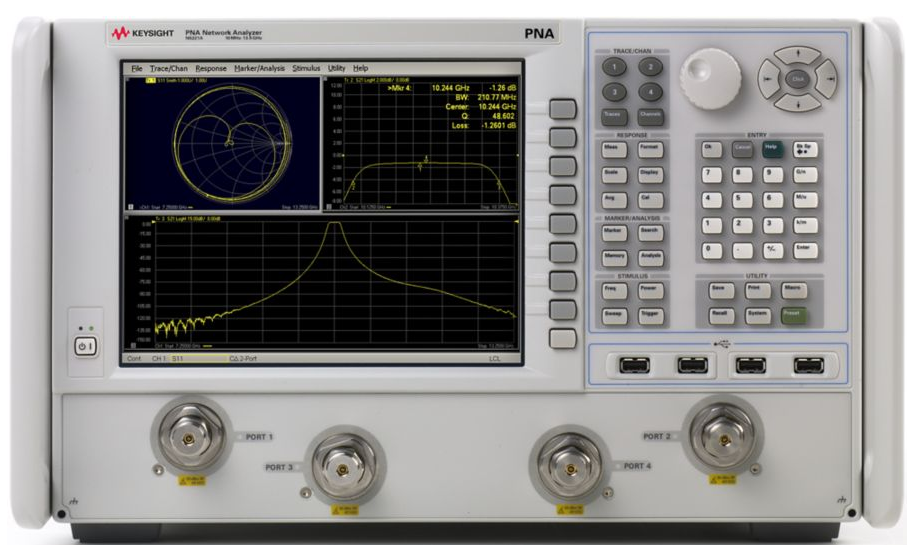

  • Keysight PNA-X Series “A” with XP (A.09.90.21 Firmware) or with win7 (A10.60.03 Firmware): N5241A, N5242A, N5244A, N5245A, N5247A, N5249A

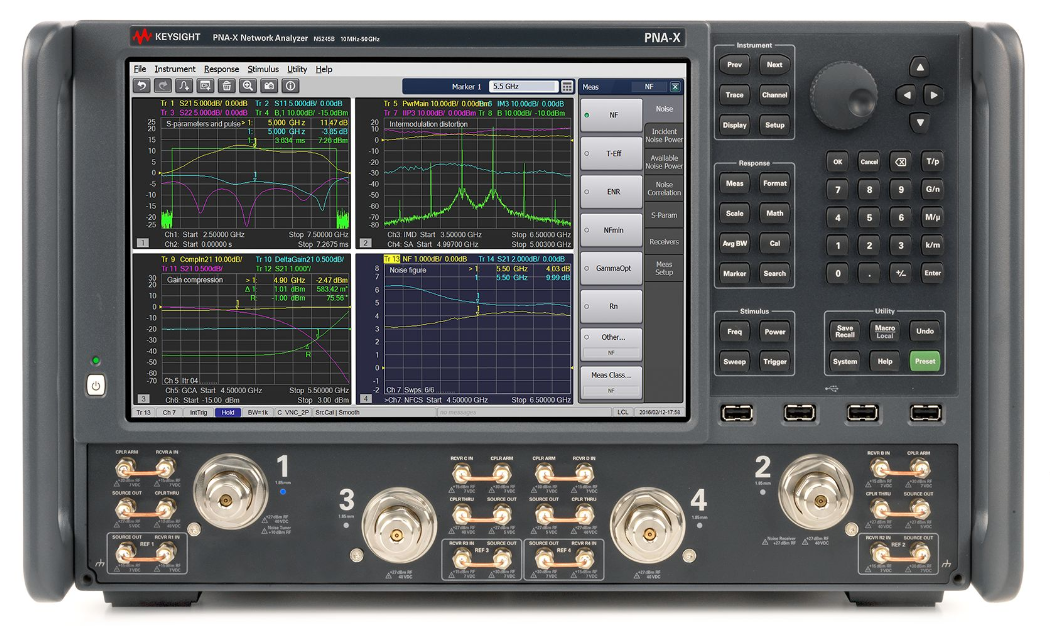

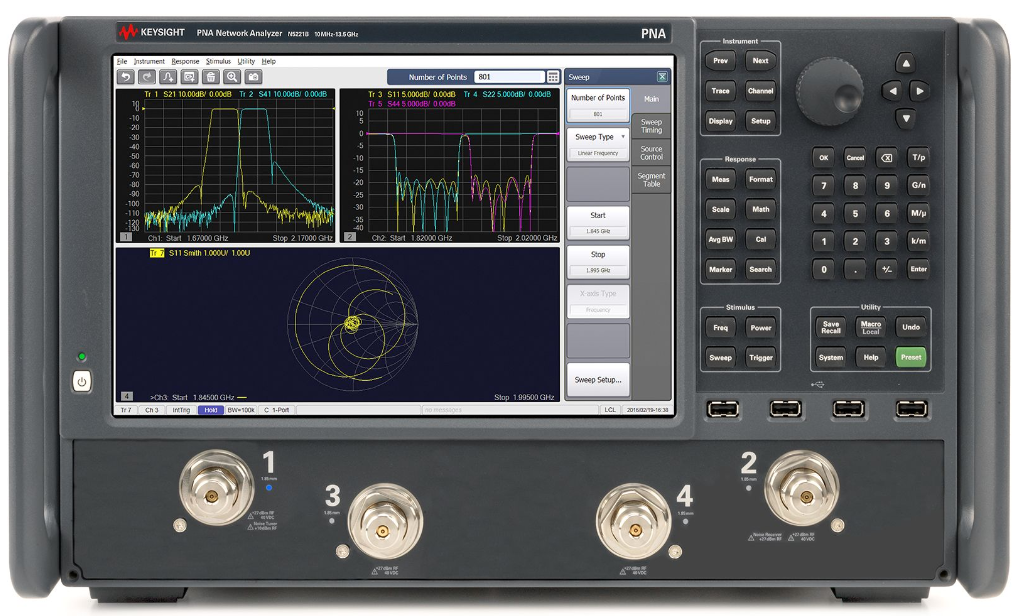

  • Keysight PNA-X Series “B” with A.17.35.10 Firmware : N5221B, N522B, N5224B, N5225B, N5227B, N5231B, N5232B, N5234B, N5235B, N5239B, N5241B, N5242B, N5244B, N5245B, N5247B, N5249B


  • Keysight PNA "New" Series “A” with XP (A.09.90.21 Firmware) or with win7 (A10.60.03 Firmware): N5221A, N5222A, N5224A, N5225A, N5227A


  • Keysight PNA "New" Series “B”: N5221B, N5222B, N5224B, N5225B, N5227B

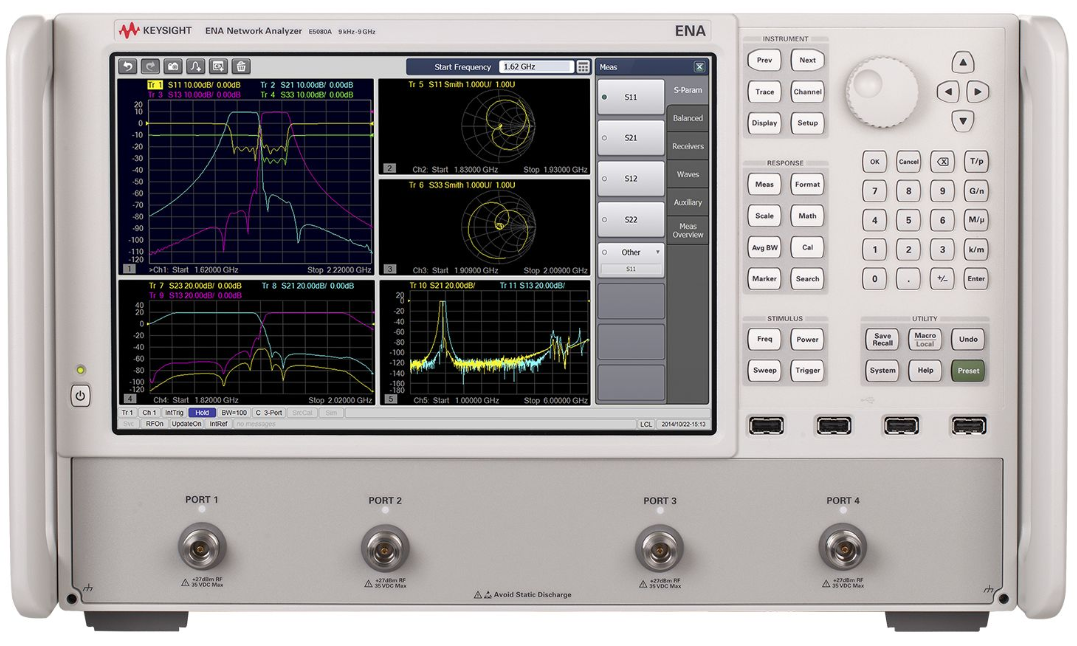

  • Keysight ENA compatible with PNA Firmwares: E5080A


Driver options:

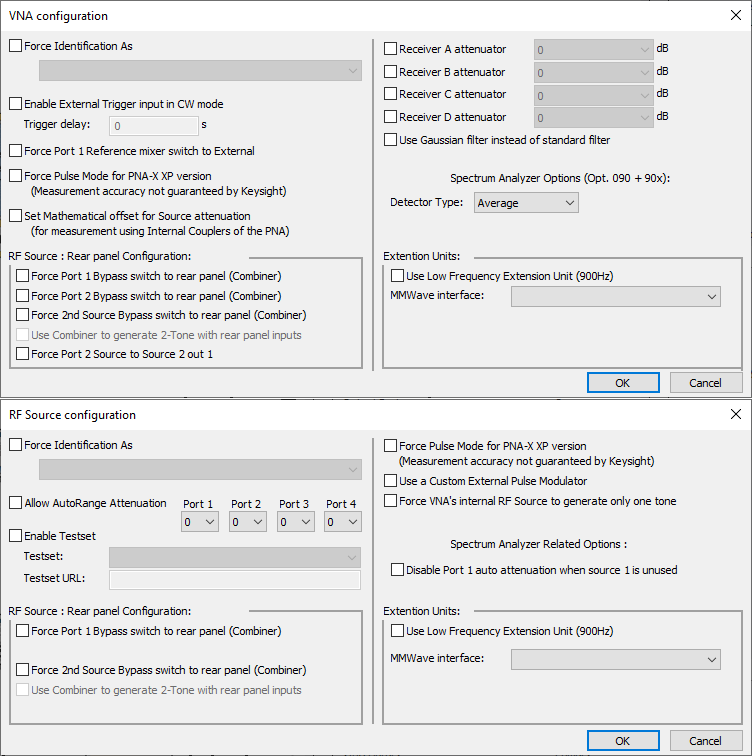

Driver options of Keysight Generic VNA

Rear Panel Input/Output signals:

  • 10Mhz REF IN
  • 10MHz REF OUT
  • Pulse I/O (N1966A Option):
    • Pulse Out 3 & 4: Used to synchronize external devices (DMMs, Power Meters...)
    • Pulse In: Used as trigger to generate the pulses when the VNA is externally triggered in pulsed mode.
  • Meas Trig In: Trigger input when the VNA is externally triggered in CW mode.
  • Aux Trig 1 OUT: Output trigger when performing Fast CW measurements.

Keysight Legacy VNA [CW mode Only]

Last known working firmwares for PNA are version A.07.50.67 and A.09.42.22 if compliant.
A.06 firmwares are not supported.

  • Keysight PNA "Old" Series: E8361A, E8362B, E8363B, E8364B


Driver options:

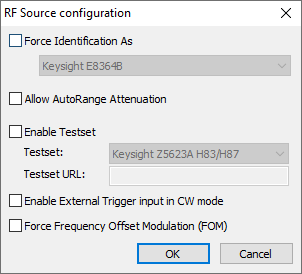

Driver options of Keysight Legacy VNA

Keysight ENA [CW mode Only]

  • Keysight E50xxy Series: E5070B, E5071B, E5071C, E5072A, E5080A


Driver options:

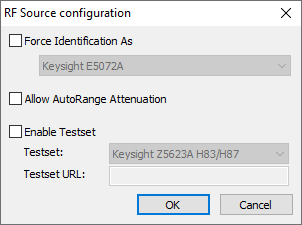

Driver options of Keysight ENA

Keysight NVNA [CW, Pulsed mode Supported]

Last known working firmwares for NVNA are version A.02.08.11 and A.02.04.10.

  • Keysight PNA-X Series

Rohde & Schwarz Generic VNA [CW, Pulsed* mode]

* Pulsed, 2-Tones mode supported with ZVAX-24 or ZVAX-TRM

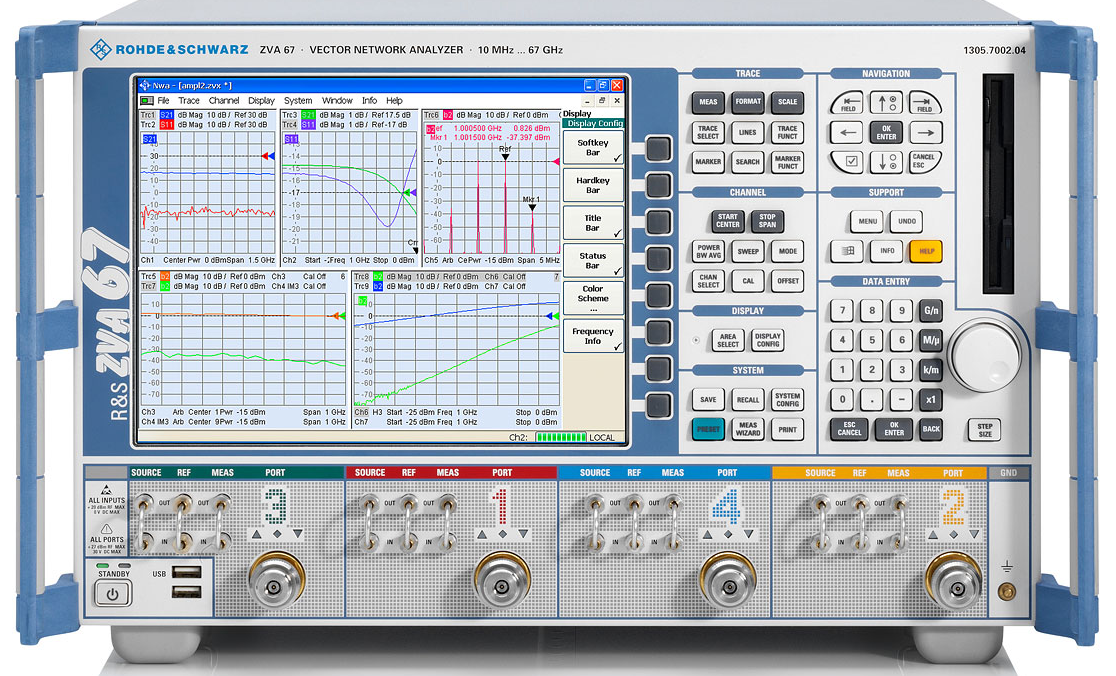

  • Rohde & Schwarz ZVx Series: ZVA, ZVB, ZVT

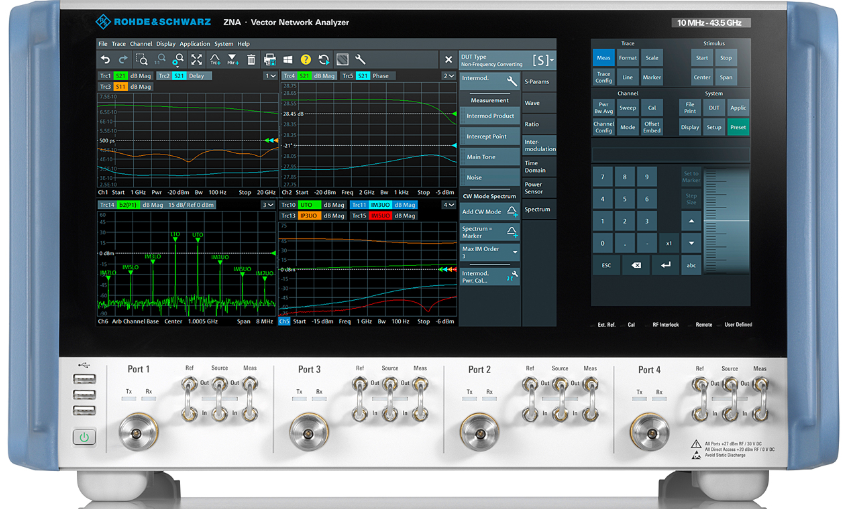

  • Rohde & Schwarz ZNx Series: ZNA, ZNB

    Supported ZNA firmware version : 2.80, 2.90



Driver options:

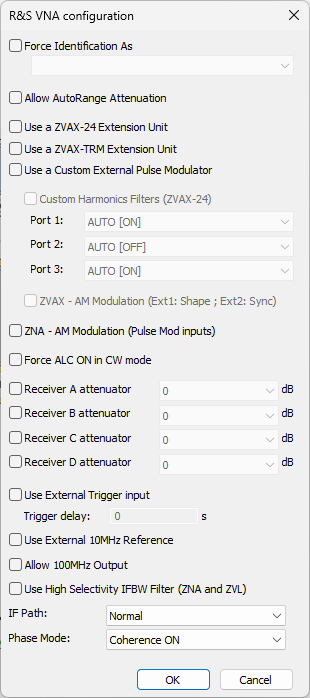

Driver options of Rohde & Schwarz Generic VNA

Rear Panel Input/Output signals:

  • 1-50Mhz: External reference input
  • 10MHz: 10MHz output
  • 100MHz / 1GHz: 100MHz output / 1GHz input reference
  • Trigger Out :
    • Trigger Out A & B: Output trigger when performing Fast CW measurements.
    • Trigger Out C & D: Used to synchronize external devices (DMMs, Power Meters...)
  • Trigger In A: Trigger input when the VNA is externally triggered in CW mode.
