Output Coupler
Output Coupler is used to define the maximum loss of the coupled path in order to compute the appropriated value of the output attenuator to add between the couplers and the VNA receivers.
Note: The output coupler is available when the Vector Network Analyzer is
set in 'four receivers measurement mode'.

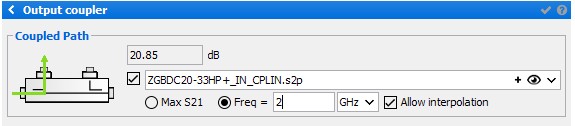

When clicking on the “Output coupler”, the following menu appears on the right side of the schematic editor:
- Coupled Path: set the coupled path loss in dB or enter an *.S2P
file in order to either extract automatically the maximum loss
(max(abs(20*log10(S21))) or select the loss at a specific frequency
by selecting 'Freq' and entering the frequency valueNote: Click on the
icon or select a
file included in the Files manager of IQSTAR through the
icon.
*.S2P file can be plotted using the
icon.
