I/Q Measurement Panel: Source Setting

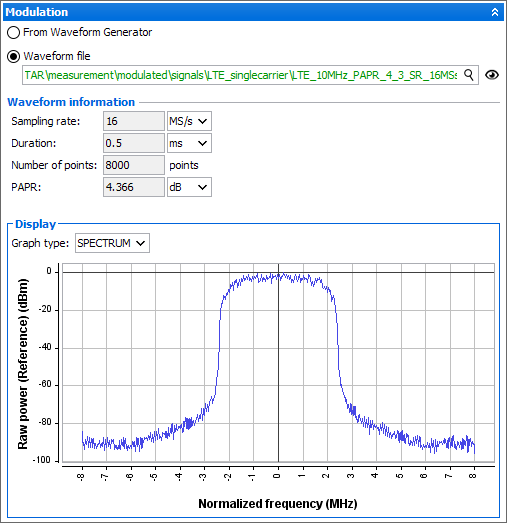

This tab allows defining the I/Q waveform which will be loaded by the RF Source.

Unlike Modulation Measurements, there are only two different modulation loading modes:

From Waveform Generator
Waveform file

Note: Contrary to Modulation Measurements,User Modulation isn't available in I/Q measurement panel because the waveform has to be well-known in order to do the data-processing (resizing, time alignement, ...) and the demodulation step.

From Waveform Generator

This panel is similar to Modulated measurement sweep settings panel. To learn more see From Waveform Generator.

Waveform file

This panel is similar to Modulated measurement sweep settings panel. To learn more see Waveform file.
