S-Parameters Measurements
Overview
Requirements
Available measurements are linked to the Schematic configuration
and the selected Calibrations. In order to get access to
S-Parameters measurements, the following conditions must be respected :
) and access
S-parameters measurement tab:
- Vector Network Analyzer needs to be enabled in the Schematic.
- Full 2-Ports Calibration or 1-Port Enhanced Calibration or Full 2-Ports & Absolute Power Calibration needs to be enabled
Note: If 1-Port Enhanced Calibration is selected, only forward
parameters S11 and S21 will be measured.
To run S-parameters measurements,
the bench must be correctly set and the calibration done. Once these steps are OK,

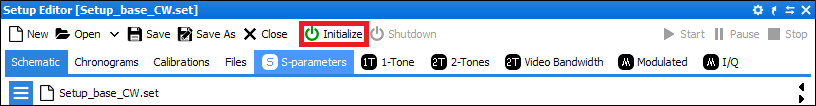

it's possible to initialize the system ( ) and access

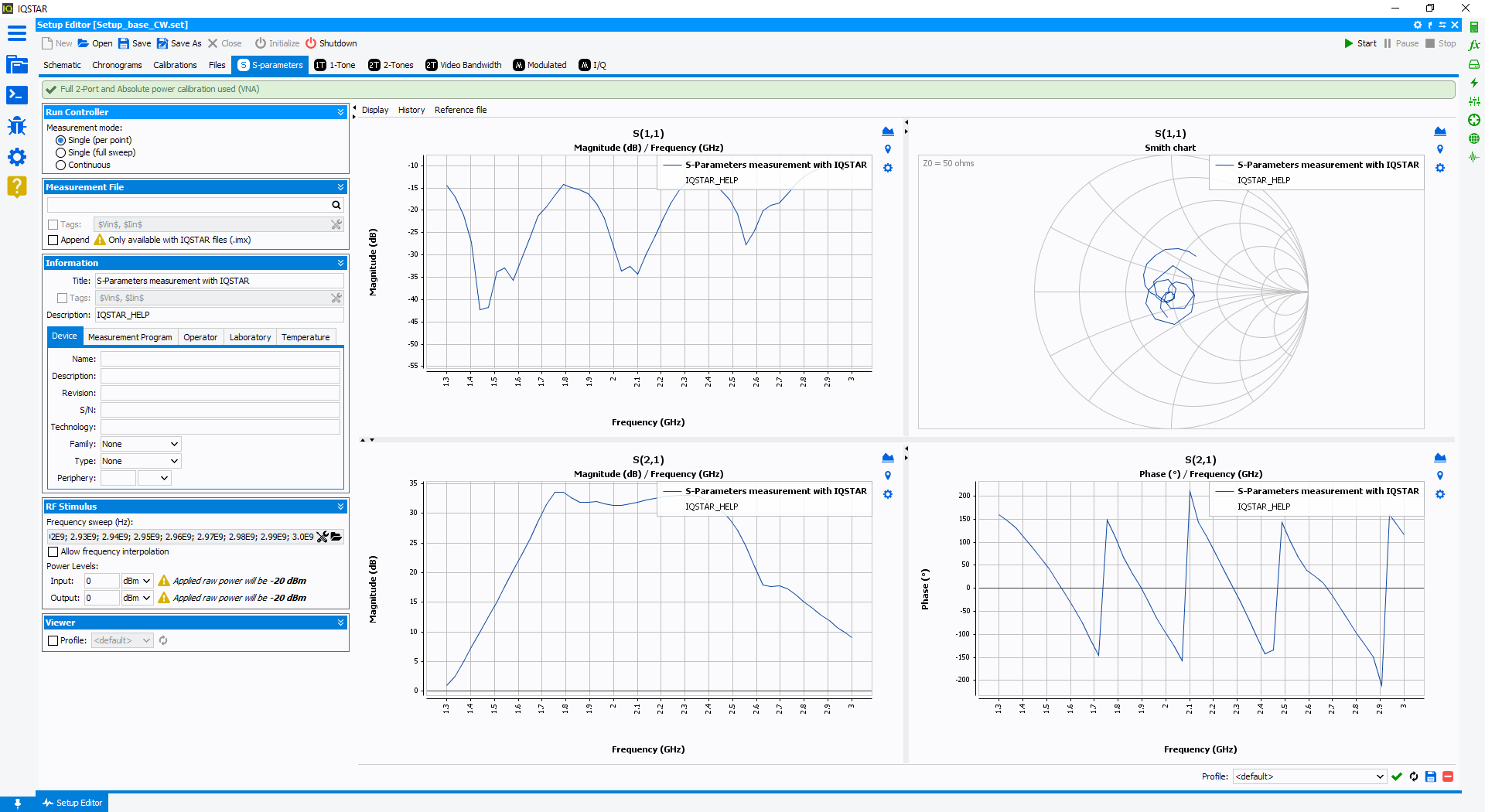

S-parameters measurement tab:
