Power Amplifier Characterization using an SW2601A

AMCAD SW2601A Modulator has been developed to provide pulse generation to systems lacking this capability. It allows power amplifier characterization while mitigating the heating effects.

This RF Modulator works on an ultra-wideband DC-30GHz range and with a high pulse repetition frequency.

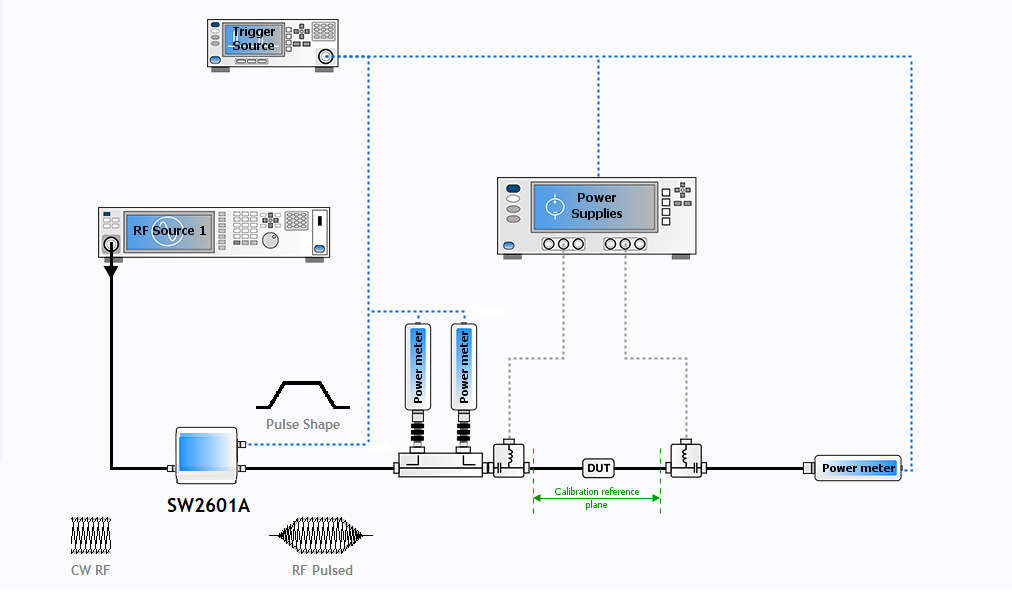

IQSTAR™ module IQS100B-10 allows the characterization of Power amplifiers using a scalar setup comprising an analog RF source, power meters, and power supplies.

With the Arbitrary Waveform/Function Generator’s help, the SW2601A RF Pulse Modulator converts a CW RF signal into a Pulsed RF signal with the desired timings.
