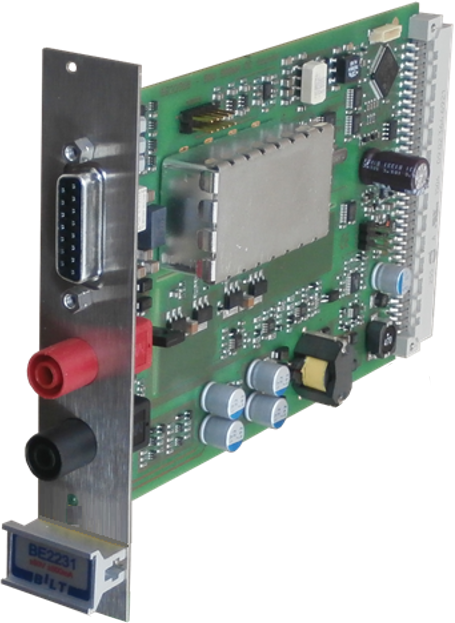

Voltage DC Source ± 50V ± 500mA
- Designed for noise sensitive applications
- Clean output noise spectrum with no spike
- Isolated with very low common mode noise
- Low cost reliable power supply
Main Features:
- 4-quadrant isolated DC source and 5½-digit digital multimeter (DMM)
- Voltage source with current compliance limit
- 16 bit source resolution and 19 bit measurement resolution for both voltage and current
- 4 – quadrant isolated DC source and 5 ½ – digit digital multimeter (DMM)
- Voltage source with current compliance limit
- 2 voltage ranges : ± 50 V and ± 5 V, down to 20 μV measurement resolution
- Stable with high output capacitors, providing higher noise reduction and tight voltage regulation
- Down to 100 μV peak – to – peak output noise
- 0 , 02 % measurement accuracy, 4 – wire operation
- Built – in Waveform Generator : exponential, ramp, stair, step, pattern . Trigger input to synchronize multiple sources .
- No voltage transient
- Operating area (Blue : DC ; Grey : Transient)easurement resolution for both voltage and current
- 2 voltage ranges: ± 50Vand ± 5V, down to 20μV measurement resolution
- Stable with high output capacitors, providing higher noise reduction and tight voltage regulation
