VOLTAGE to ± 12V, CURRENT to ± 200mA
- High Resolution: 21 bits, 6 ½ digits
- Ultra Low Noise: down to 6μVp – p
- Clean output noise spectrum with no spike
- High Stability: a few ppm within 24 – hour
Main features: (3 source models)
- BE 2101 : standard model with no current measurement

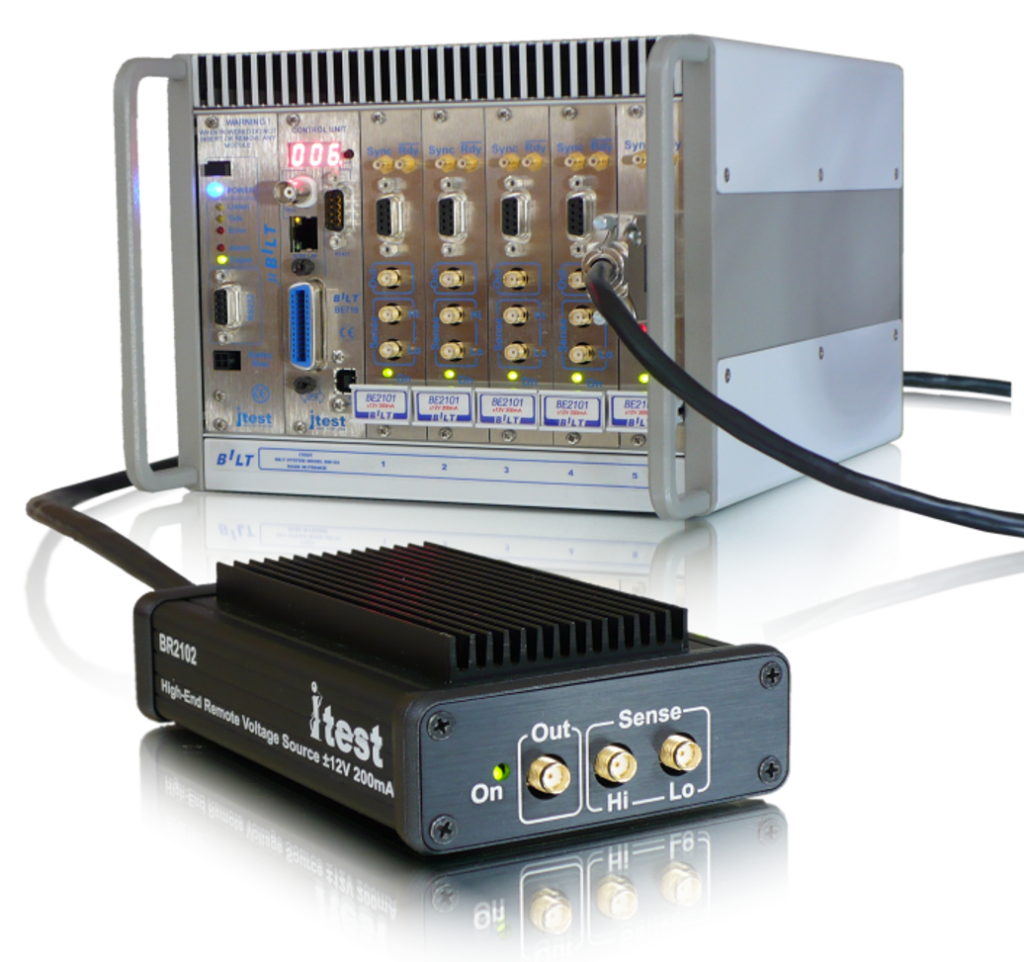

- BE 2102 : remote source, no current measurement
- True 4 – quadrant isolated modular DC source with sense lines
- 2 voltage ranges : ± 1 , 2 V and ± 12 V, current up to ± 200 mA
- High output and measurement resolution : 21 bits, 6 ½ digits
- 2 programmable output filters to optimize output noise and settling time
- “Ready”output signal indicates optimal accuracy reached on output voltage
- Excellent load regulation, typ. error <10μV (12V range)
- Programmable ramp or staircase waveform, synchronization between sources (external trigger)
- Cost effective: up to 13 source modules in a single Bilt chassis, 3 chassis sizes available: 5, 8 or 13 slots
