Reporting

This section will describe how, in addition to the whiteboard, the sweep plan can be used to generate automatically user defined reports and then export the complete report along with its measurement(s).

Change configuration action logo Load Report

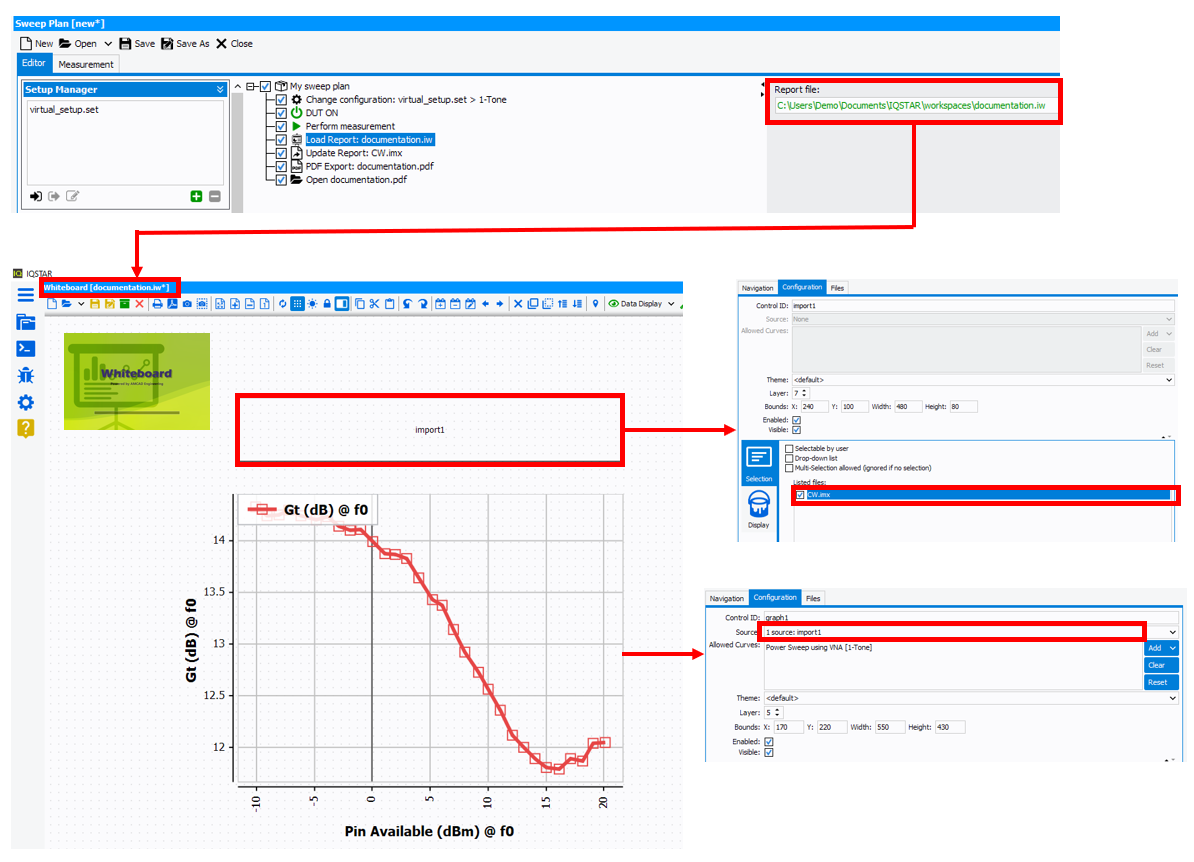

This block is used in order to load any whiteboard template ("documentation.iw" in the example below) that must be used to process the measurement. The template must include an import control and an *.imx file include in this import ("CW.imx" in the example below).


Change configuration action logo Update Report

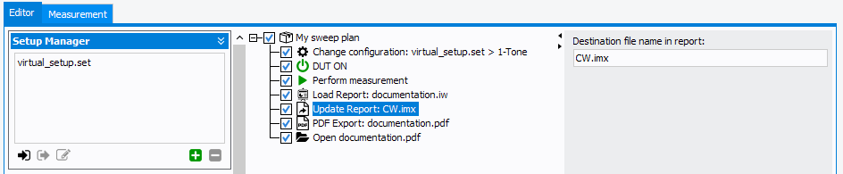

This block is used in order to update the previously specified report with the file coming from the a Perform Measurement block. Define the name of the *.imx file ("CW.imx" in the example below) strored in the import of the whiteboard template.



Change configuration action logo Generate Report

This block is used in order to generated the report and save it on the computer. It can be exported in two types of files:
  • A PDF file, which can be used to display measurements in a static way.
  • A deployed file (.imx) which is used in the "Free whiteboard viewer" to dynamically visualize data.
