Maury Tuners Setup Instructions & Driver Details

Maury Mtune 2

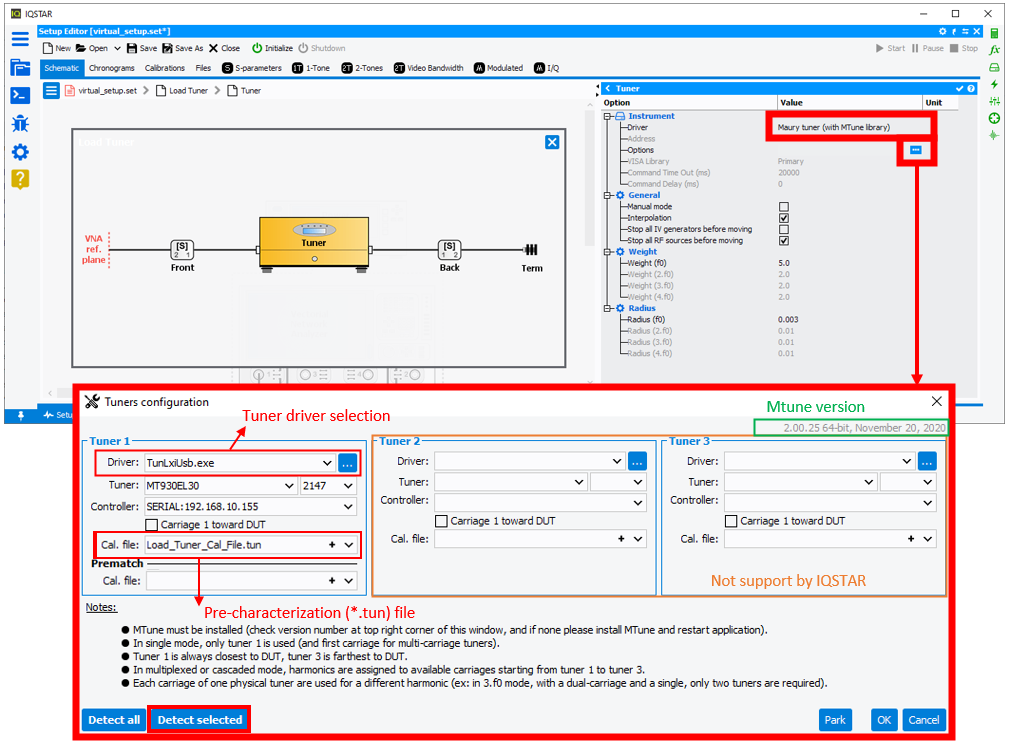

To define Maury Tuners with Mtune2, select Load Tuner in the Schematic. When clicking on the Tuner the instrument settings menu appears on the right side of the schematic editor. Select "Maury tuner (with MTune library)" driver, and click on to access the Mtune tuner configuration panel. In this panel, tuner driver, tuner model, tuner connexion settings and tuner pre-characterization file can be filled.



Select the driver and click on ‘Detect Selected’, IQSTAR will scan all instrument using this driver. If a tuner is connected, the tuner model, serial number and Controller will be automatically filled.
Note: If the tuner information are not filled automatically, tuner model, tuner serial number and controller address can be manually filled.

Select the calibration file corresponding to the tuner in the drop-down menu or import it using icon. To learn more on tuner pre-characterization tool see, Mtune Characterization Wizard.

Important: Contrary to IVCAD software, IQSTAR is able to manage single tuner only. Therefore, no prematch or harmonics mode is available. Is it for what only "Tuner1" tabs are usefull in IQSTAR.

Related information:

Maury Mtune 3

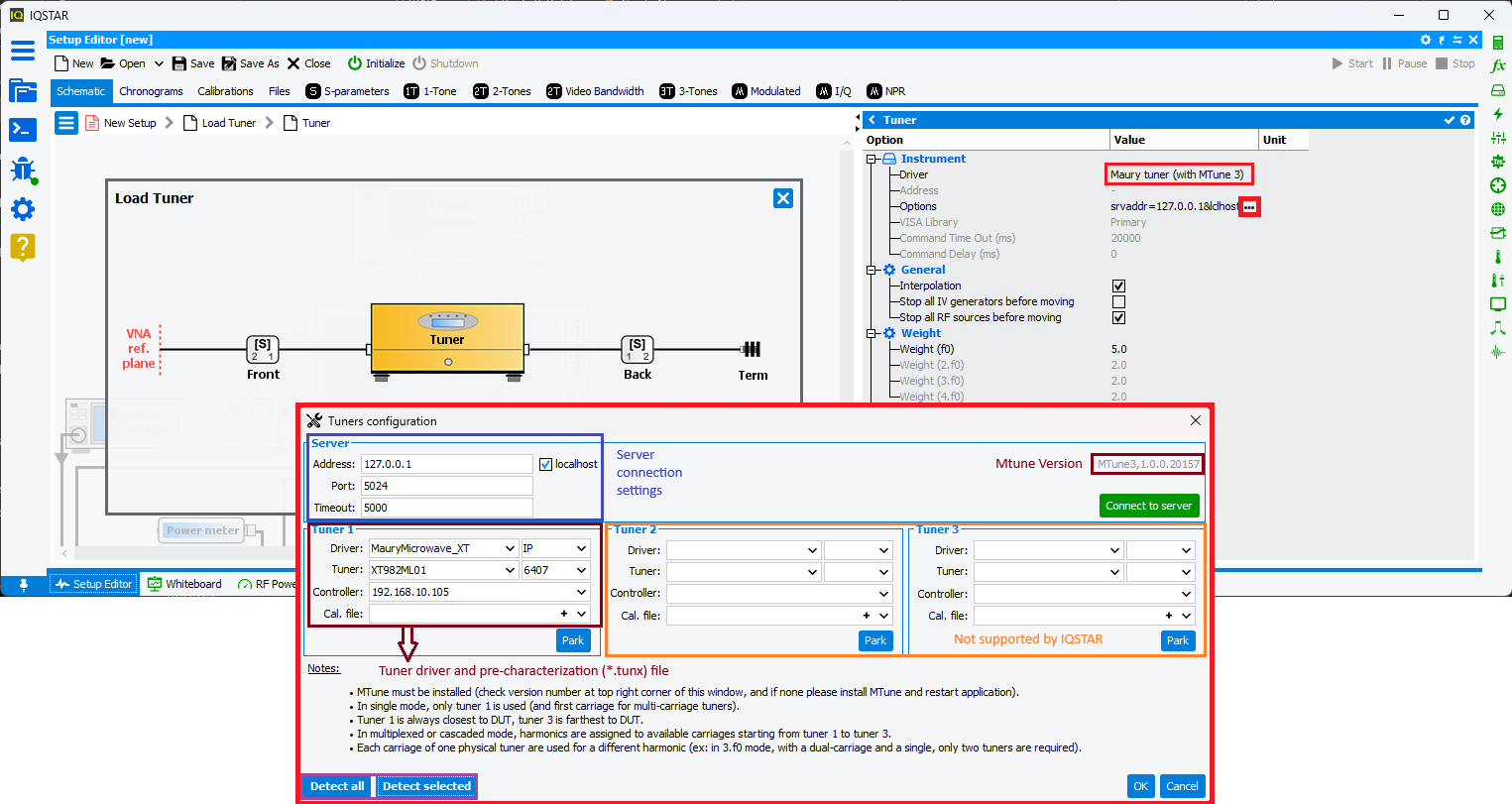

To define Maury Tuners with Mtune3, select Load Tuner in the Schematic. When clicking on the Tuner the instrument settings menu appears on the right side of the schematic editor. Select "Maury tuner (with MTune 3)" driver, and click on to access the Mtune tuner configuration panel. In this panel, tuner driver, tuner model, tuner connexion settings and tuner pre-characterization file can be filled.



First, communication with Mtune Web Socket have to be established with the server connection settigns (Address, Port and Timeout). The MTune version will be displayed when the server is connected.
Warning: Take care of the port used for MTune Socket, it can be used by other instruments (Copper Mountain VNA for example).
Select the driver and the communication protocol and click on ‘Detect Selected’, IQSTAR will scan all instrument using this driver. If a tuner is connected, the tuner model, serial number and Controller will be automatically filled.
Note: If the tuner information are not filled automatically, tuner model, tuner serial number and controller address can be manually filled.

Select the calibration file corresponding to the tuner in the drop-down menu or import it using icon. To learn more on tuner pre-characterization tool see, Maury User Guide.

Important: Contrary to IVCAD software, IQSTAR is able to manage single tuner only. Therefore, no prematch or harmonics mode is available. Is it for what only "Tuner1" tabs are usefull in IQSTAR.
