Viewers
IQSTAR embeds differents basic data viewers to analyze fastly the measurement results. This viewer is equivalent to the real-time viewer find during the measurement.

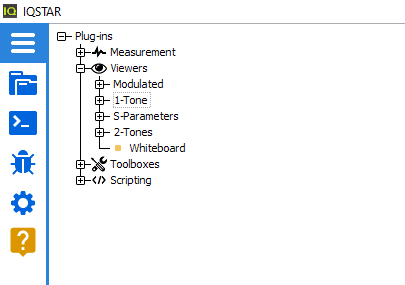

Expand “Viewers” on the left under “Plug-ins”
Four categories are available depending on the measurement data to analyze:
- S-Parameters. To learn more see S-Parameters Real-Time Measurements Display
- 1-Tone. To learn more see 1-Tone Real-Time Measurement Display
- 2-Tones. To learn more see 2-Tones Real-Time Measurement Display and Video Bandwidth Real-Time Measurement Display
- Modulated. To learn more see Modulation Real-Time Measurement Display and I/Q Real-Time Measurement Display
The measurement files (*.imx) has to be loaded in the "Data Manager" (
) on the left
IQSTAR window.
Warning: *.csv files are not supported in any viewer but does in the
Whiteboard.
