CSV Export

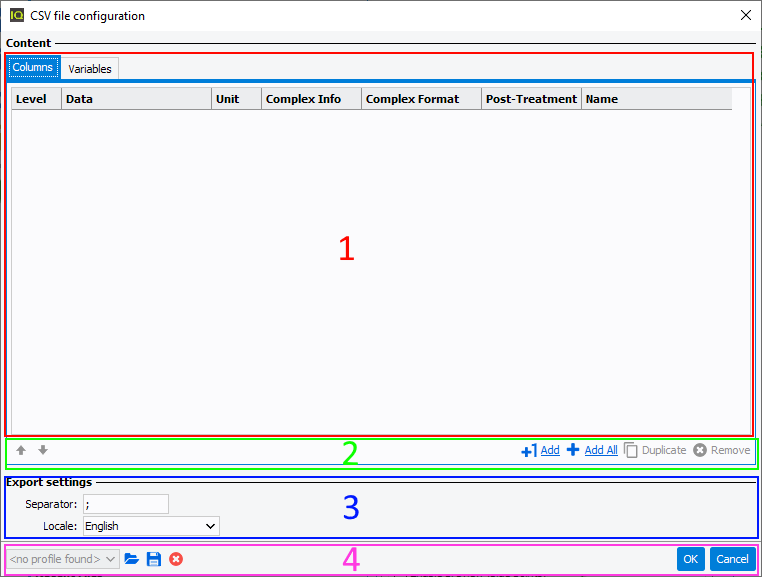

The first menu that will be opened when choosing to export in .csv is the following:

The interface is composed of four parts:
  1. Data management table: this part is where the data will be displayed. The next point will describe how to add data.

    Two sort of data can be added either full curves in the columns tab or variable used as specific conditions for a curve.

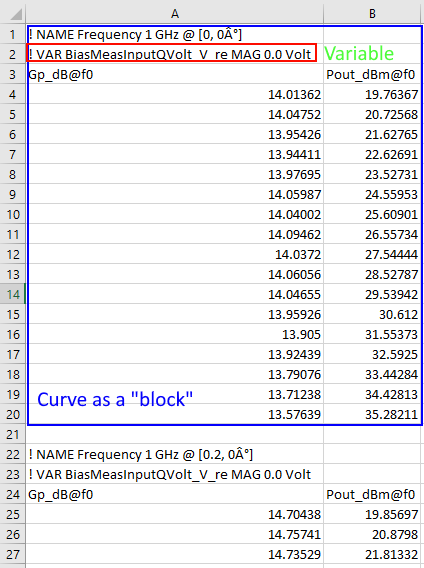

    For example a CSV file can be created to export Gp vs Pout data (so two lines in Colums) with the biasing level (so the gate voltage in Variables).

  2. Data list management:
    • allows to change the position of the data in the list
    • adds one new line to be parametrized
    • adds all the found data in the file
    • duplicates the selected line
    • removes the selected line(s)
  3. Export settings:
    • Separator: used in the file to separate data
    • Locale: used to define the numbers representation.
  4. Profile management and validation: used to select / load / save / delete a profile used as template for the export. OK and Cancel are used to validate or abord the export.
