Driver
Supported Driver Families
As you can see on the main page, supported driver families are:
- IV Power Supply [DC mode Only]
- IV Measurement [DC mode Only]
- RF Power Meter [CW, Pulsed mode Supported]
- RF Source [CW, Pulsed, Modulated mode Supported]
- IO Switch
- Temperature sensor
- Temperature controller
Note: Custom driver can support one or more families
Connection Information
Custom driver uses the VISA library to communicate with the
driver.
Only SCPI commands can be used.
Select a custom driver

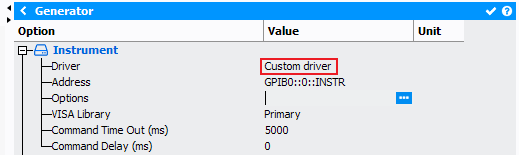

To use the custon driver in IQSTAR, select Custon driver in the IQSTAR
instrument options :
Driver options
To choose the custom configuration, there are two possibilities:
- Listed: stored in the default folder {My Documents}\IQSTAR\measurement\user drivers
- Other: stored in other location
