2 tones : CI3, Pout, PAE and Gain on 3D display

This provided template is used to present the whiteboard capabilities using a *.imx file including 1 tone measurements. It can be easily done using the following components :

• Extractor
• Graph
• Import Files
• Stacker

To use this template, open the whiteboard and load the CI3-Pout-PAE-Gain_3D.iw template (located in the software installation directory ..\example\app\whiteboard where app is the software name).

Once opened, two choices can be made, either loading a file directly in the datasources section, or clicking on the file in the import control to select and use it. Next, a frequency filter can be used to dynamically visualise in a table and in a graph the corresponding values.

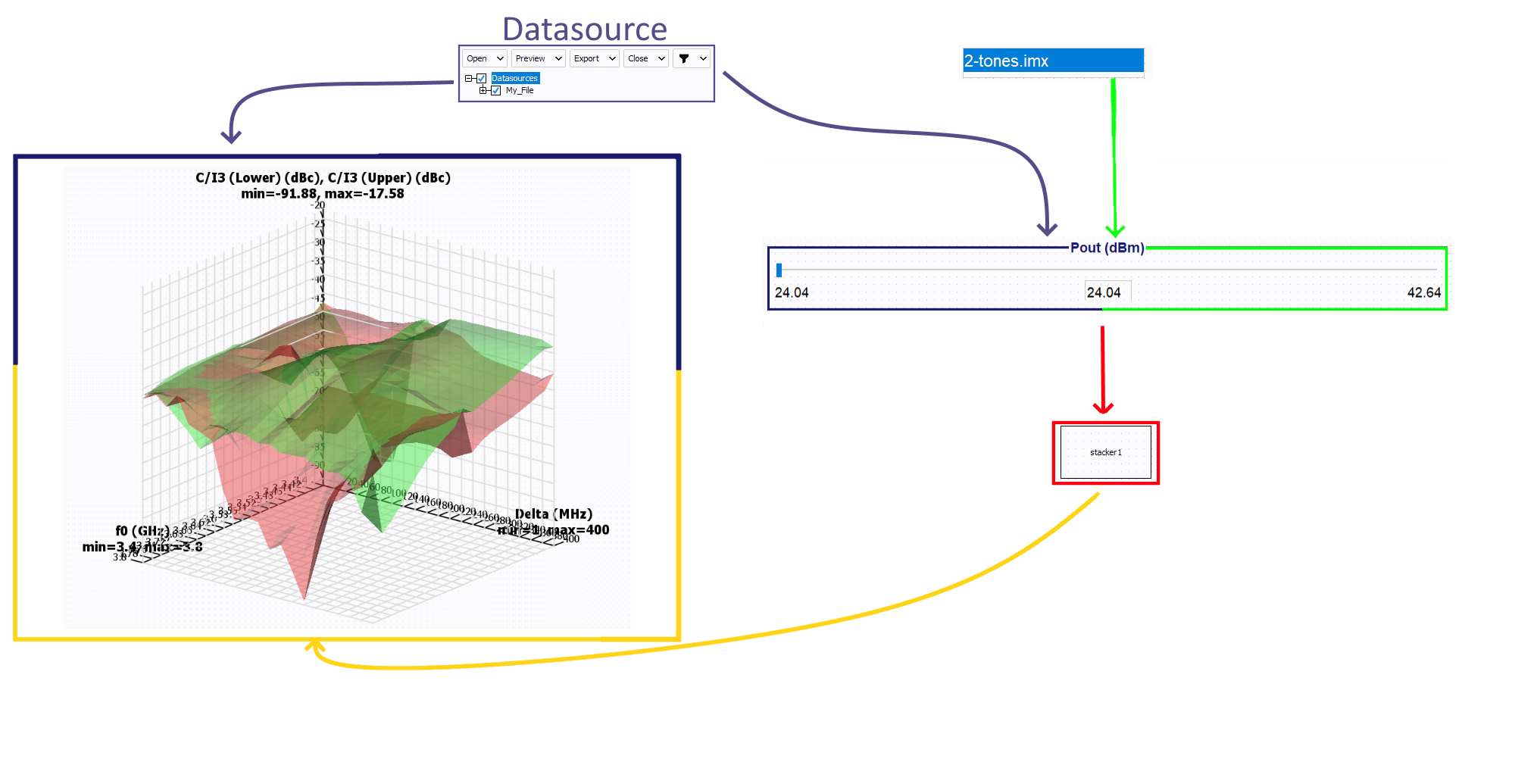

The project schematic is as follows, where the lines represent the data being fed from a control to another :

The import control is used to load an embedded file the feed the others controls.

The Extractor is used to extract some values at a defined output power value.

The Table is used to display the values extracted by the Extractor, and is configured as a summary table.

The Graph is used to display the informations
