De-embedding Toolbox

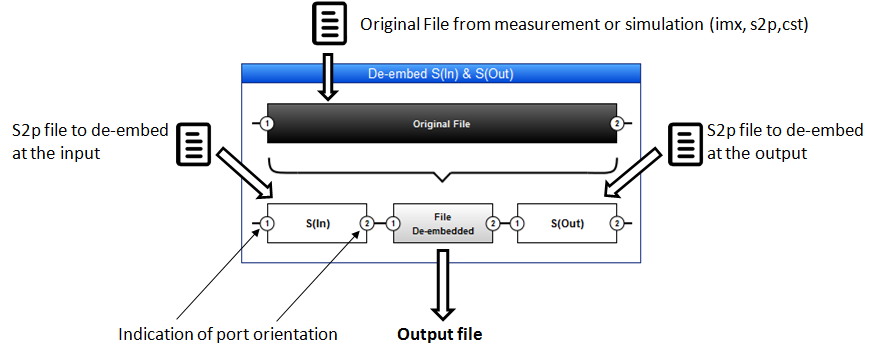

De-embedding can be used to embed or de-embed s-parameters to measurement files.

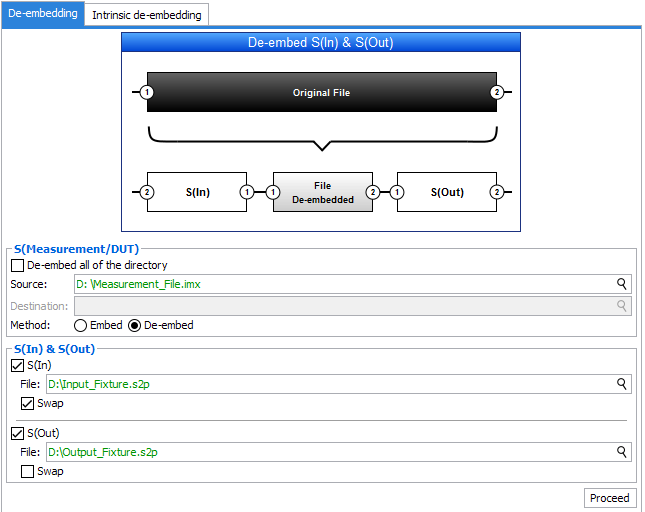

To configure the tool:

  • DUT
    • Select if you apply the de-embedding to 1 file or to an entire folder
    • Source: Browse to the file source (*.imx, *.cst...) that has to be embedded or de-embedded
    • Destination: If the computation is done for a entire folder, set the destination folder for the output files
    • Method: Select if the file has to be embedded or de-embedded
  • S(in) & S(out)
    • Select the s-parameter file at the input, output or both.
    • Browse to the s2p file
    • Depending on the top schematic it's possible to swap ports using the swap check box.
Example:

In this example, the original file will be de-embedded from input S(In) and output S(Out) fixtures in order to have access to the performance of the component itself by removing losses and phase shifting of the access lines.
