RES1P

RES1P-  impedance model connected to ground.

Figure: Block diagram

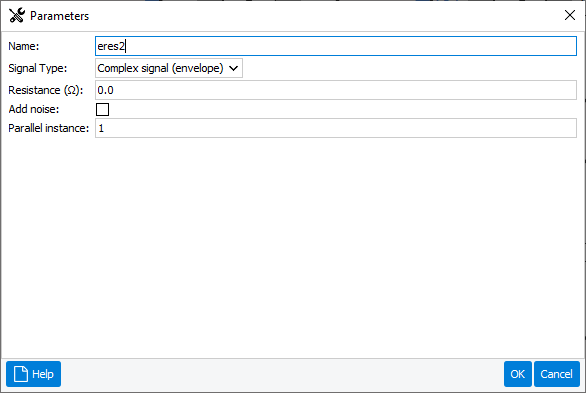

Figure: Dialog box
  • Resistance: Resistance between port1 and port2 in the following diagram with v2 grounded :

  • Noise bandwidth: Thermal noise generation bandwidth
