ERHO1P

ERHO1P-  impedance model connected to ground.

Figure: Block diagram

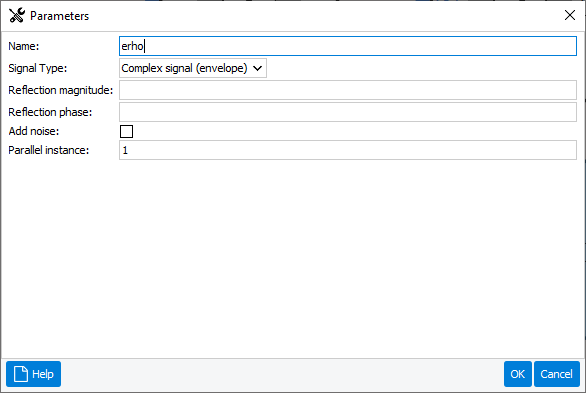

Figure: Dialog box

  • Reflection magnitude: Magnitude of reflection coefficient
  • Reflection phase: Phase of reflection coefficient

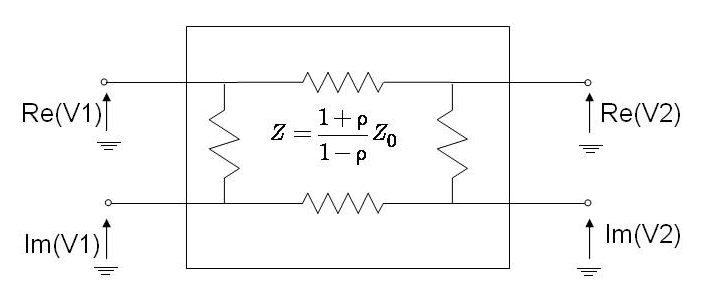

    These values are defined in the following diagram with v2 grounded:

  • Noise bandwidth: Thermal noise generation bandwidth
