MULTI-DC-VS

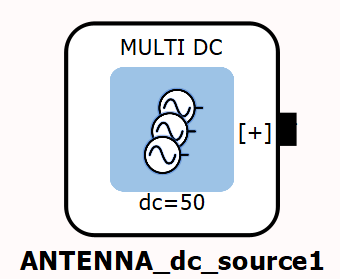

Description : this is a block that allows to simulate a DCvoltage or current source for driven antenna simulation.
This source is mainly used in CW simulation mode, see Simcontroller

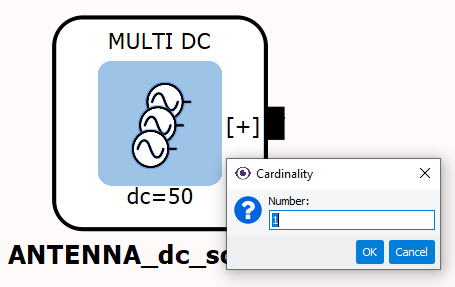

The number N of the available outputs is chosen by the way of the cardinality option of this bloc. Right clic on the port in order to edit the cardinality.

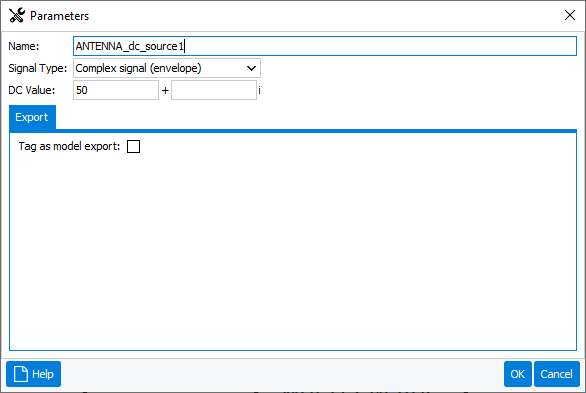

￭ Signal type: Complex signal (envelope) or real (real part of envelope).
￭ DC value can be choose with real and imaginary part.
