Operand

Operand - Ideal Mathematical operation (add, substract, multiply, divide)

Figure: Diagram block

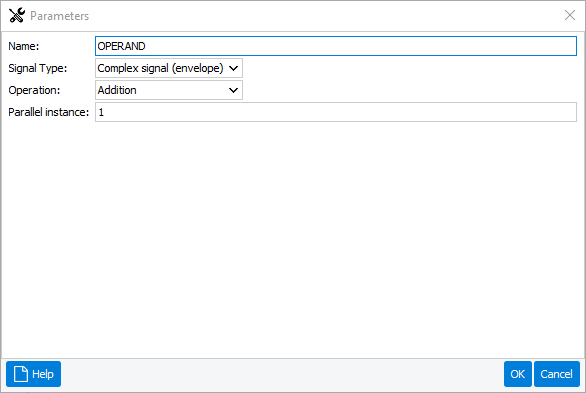

Figure: dialog box

Signal type : complex or real signal.
Operation : Addition, substrcation, multiplication, division.
