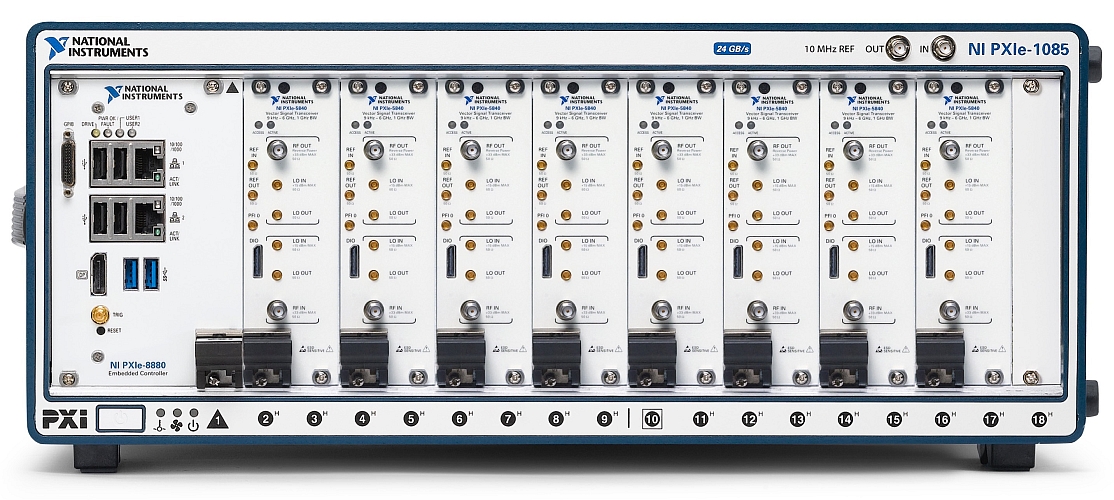

National Instrument VST
Softwares version used for tests
| Product Installed | Version |
| Instrument Studio | 2022 Q3 |
| LabVIEW Runtime (32-bit) | 2021 SP1 f2 |
| LabVIEW Runtime (64-bit) | 2021 SP1 f2 |
| LabWindows/CVI Shared Runtime | 2019 |
| NI Certificates Intaller | 21.5.0 |
| NI Device Monitor | 2022 Q3 |
| NI I/O Trace | 2022 Q3 |
| NI License Manager | 21.8.0 |
| NI Linux RT System Image | 21.0.0 |
| NI Measurement & Automation Explorer | 2022 Q3 |
| NI System Configuration | 20.5.0 |
| NI Update Service | 21.0.0 |
| NI Web Server | 21.3.0 |
| NI-488.2 | 20.0.0 |
| NI-DAQmx | 20.7.0 |
| NI-DCPower | 2022 Q3 |
| NI-FGEN | 20.0.0 |
| NI-RFSA | 2022 Q3 |
| NI-RFSG | 2022 Q3 |
| NI-RSFG Playback Library | 2022 Q3 |
| NI-SCOPE | 20.7.0 |
| NI-VISA | 20.0.0 |
| PXI Platform Services | 21.0.0 |
| RFIC Test Software | 21.5.0 |
| RFmx CDMA2k | 2022 Q3 |
| RFmx Demod | 2022 Q3 |
| RFmx EV-DO | 2022 Q3 |
| RFmx for Bluetooth ® Test | 2022 Q3 |
| RFmx GSM | 2022 Q3 |
| RFmx LTE | 2022 Q3 |
| RFmx NR | 2022 Q3 |
| RFmx SpecAn | 2022 Q3 |
| RFmx TD-SCDMA | 2022 Q3 |
| RFmx Waveform Creator | 2022 Q3 |
| RFmx WCDMA | 2022 Q3 |
| RFmx WLAN | 2022 Q3 |
Known issues

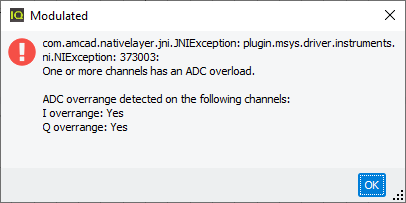

While doing Complementary, cumulative Density Function (CCDF)
using PXIe, if the Bandwidth variable is smaller than the signal bandwidth you want
to measure, an error will occur :
To avoid this error, specify a Bandwidth which is at least the bandwidth of the signal you want to measure.
To avoid this error, specify a Bandwidth which is at least the bandwidth of the signal you want to measure.
