Maury Tuners Setup Instructions & Driver Details

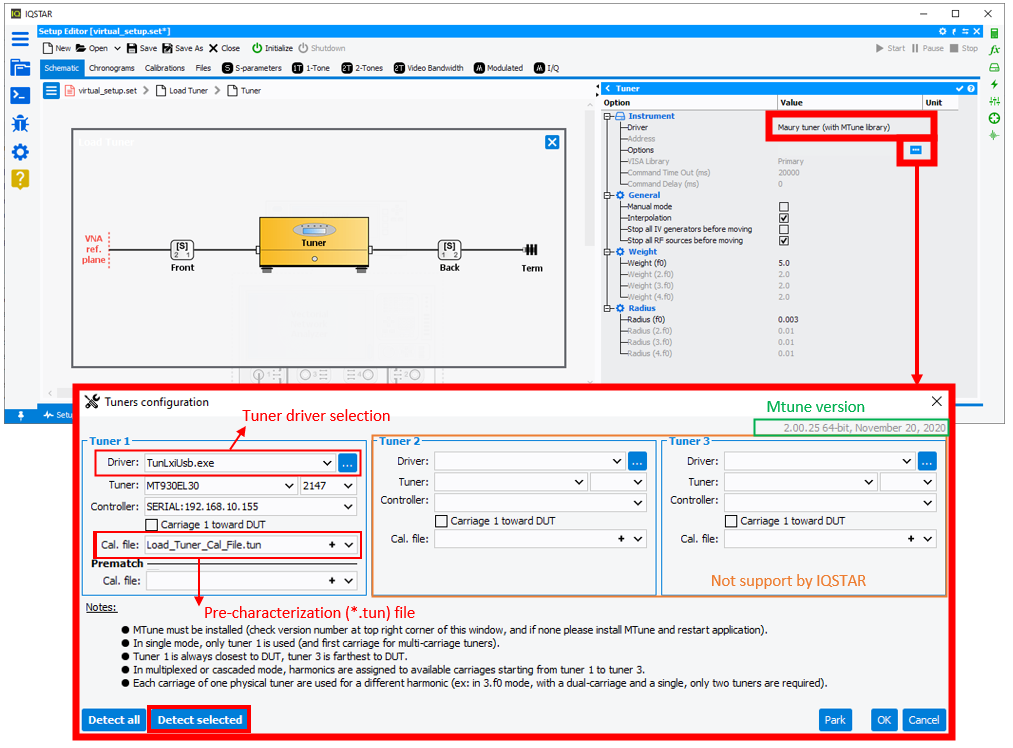

To define Maury Tuners, select Load Tuner in the Schematic. then select. When clicking on the Tuner theinstrument settings menu appears on the right side of the schematic editor. Select
"Maury tuner (with MTine library)" driver, and click on
to access the Mtune
tuner configuration panel. In this panel, tuner driver, tuner model, tuner coneexion
settings and tuner pre-characterization file can be filled.
Select the driver and click on ‘Detect Selected’, IQSTAR will scan all instrument using
this driver. If the tuner is connected the tuner model, serial number and Controller
will be automatically filled.
Note: If the tuner information are not filled
automatically, tuner model, tuner serial number and adress IP can be filled
manually.
Select the calibration file corresponding to the tuner in the drop-down menu or import it
using
icon. To learn more on
tuner pre-characterization tool see, Mtune Characterization Wizard.
Important: Contrary to IVCAD software, IQSTAR is able to manage single tuner
only. Therefore, no prematch or harmonics mode is available. Is it for what only
"Tuner1" tabs are usefull in IQSTAR.
