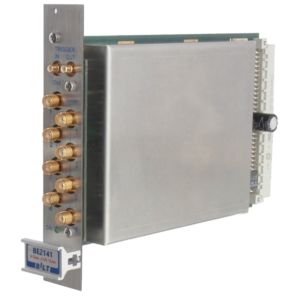

HIGH RESOLUTION VOLTAGE SOURCE
- Unrivaled noise level : down to 5µVp-p (<1µV RMS)
- Clean output noise spectrum with no spike
- High Stability: a few ppm within 24-hour
Main features:
- 2 voltage ranges: ±1,2V and ±12V
- 1 current range: ±15mA
- Voltage programming and measurement resolution: 21bits, 6½ digits. High accuracy, typ. 0,02%.
- 4-wire operation available (remote voltage sensing)
Application examples:
- Noise-sensitive device power supply, such as PLL,
- Cameras, signal converters (ADC,DAC)…
- Polarization of nanostructures, nanotube, graphene, quantum devices, 2D high conductivity gases…
- Small superconducting coil
- Battery replacement for ultra-low noise applications
- Ultra low level pressure and temperature sensors
