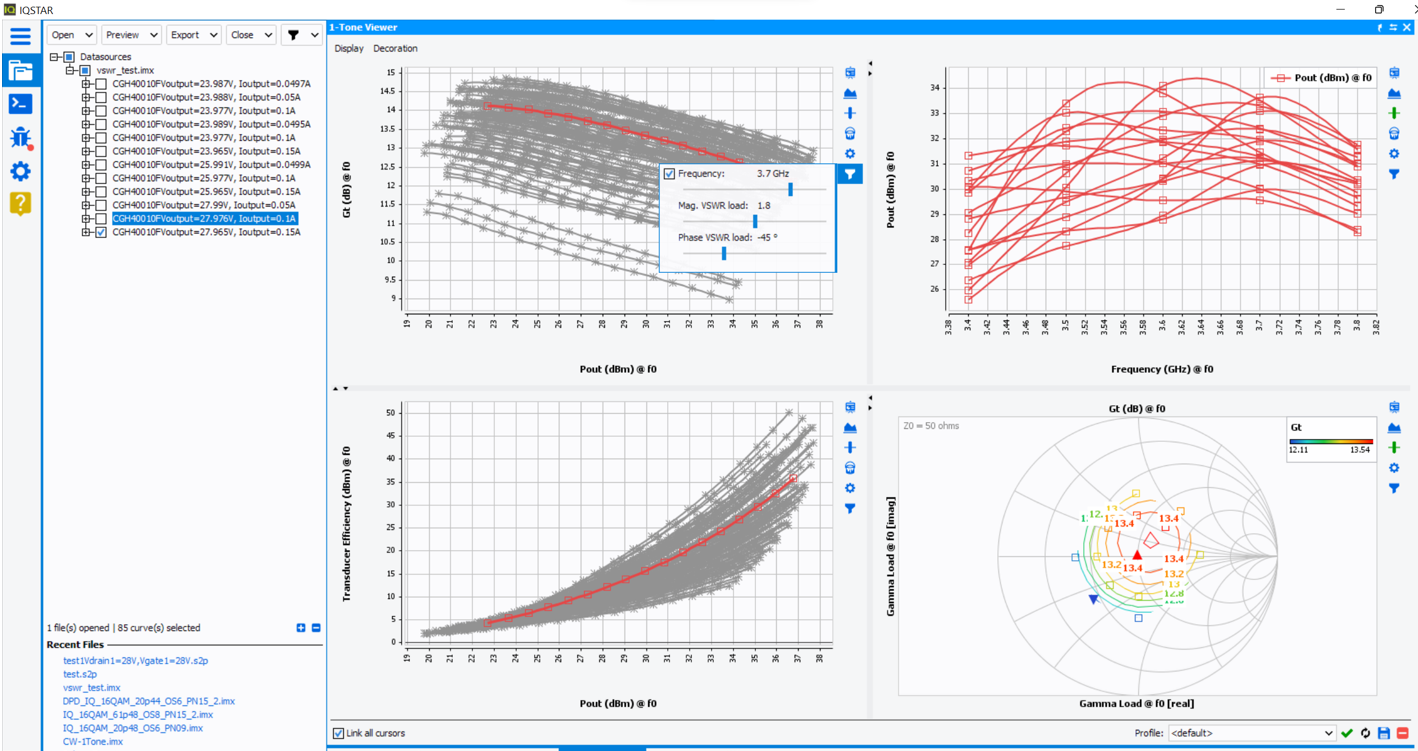

IQSTAR is provided with a visualization tool for each measurement module. Different displays are made available, allowing single or multiple graphs. Depending on the performed measurements, an extensive list of graph types is predefined, including

  • XY Graphs
  • Smith Charts
  • Polar
  • Tables
  • Spectrum
  • CCDF traces
  • EVM constellation
  • ACPR Mask
  • And many others

Different controls and filters allowing the display of different parameters at a specific frequency, power, or VSWR level make the performance evaluation of the device easier to analyze. User-defined templates can be saved and recalled. Measurement data can be exported to standard formats like CSV and MDIF.
