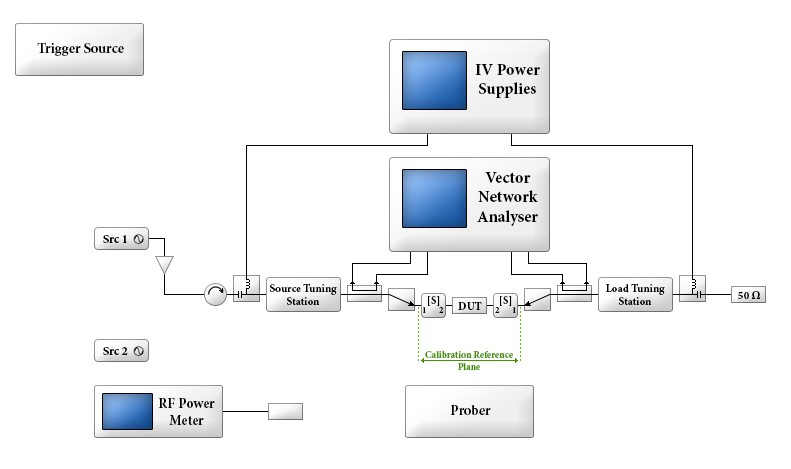

IVCAD is turnkey software with a versatile and customizable schematic editor for building a Load pull and Pulsed IV test bench with available laboratory instruments. Depending on the measurements required, different test configurations are possible:

  • I-V Measurements
  • Vector Receiver Load Pull Measurements
  • Traditional Load Pull Measurements
  • Waveguide Vector Receiver Load Pull Measurements





Devices can be coaxial, waveguide, fixtured or on-wafer.

Each instrument enabled in the setup can be controlled using specific drivers allowing full automation of the measurements. With 15 years of device characterization software development, AMCAD masters instrument controls and provides drivers that optimize the measurement speed without sacrificing accuracy. Each instrument can be set with different options and in different modes.
